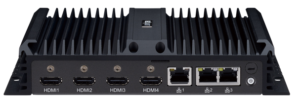

NES70-E01/E02/E03 Fanless System
View specifications- Intel® 11th Gen i7/i5 or Celeron®
- 4 x HDMI ports, support 4K@30Hz
- Fanless and compact design
- 3 x GbE LAN & 2 x COM ports
- Wide operating temperature range -5°C to 55°C
- Supports +12V/24V DC input
- 1 x M.2 & 1 x mini-PCIe expansion slot
- Windows 10, Linux 4.19
-
AES630A Series Fanless System
View specifications- Intel® 11th Gen i7/i5/i3 or Celeron®
- 2 x HDMI, 1 x VGA display outputs
- Fanless and compact design
- 3 x 2.5GE LAN, 4 COM and 6 USB
- Wide operating temperature range -40°C to 60°C
- 9 to 48 VDC wide range power input
- Supports TPM 2.0
- Win 10 IoT, Linux
-
AES671A-CML/POE Fanless System
View specifications- 10th Gen Intel® Core™ & Celeron®
- Intel® W480E chipset
- 4GbE LAN with optional PoE support
- Dual 2.5″ SATA SSD/HDD, RAID 0 &1
- Triple display 2 HDMI & 1 DisplayPort
- -40 °C to 70 °C operating temperature
- Wide range power input 9 to 48 VDC
-
AES100-N4200/3350 Fanless System
View specifications- Intel® N3350 or Pentium® N4200
- 2 HDMI, 1 COM, 6 USB and 2 GbE LAN
- 2 PCIe slots for WLAN and WWAN
- 1 swappable 2.5″ SATA HDD drive bay
- Jumbo Frame (9k),WoL, PXE Remote Boot
- Ideal for smart retail & light industrial
-
AES630-528-Series Fanless System
View specifications- 8th gen Intel® Core™ i7/i5/i3 & Celeron® ULT processor
- Dual-channel DDR4 2400 SO-DIMM up to 64GB memory
- Supports 2 HDMI, VGA, 3 GbE LAN, 4 COM and 6 USB
- Trusted platform module (TPM 2.0 on board)
- Fanless -40°C to +70°C* operating temperature
- 9 to 36 VDC wide range DC power input
-
AES640-521 Fanless System
View specifications- LGA1151 socket 9th/8th gen Intel® Core™ i7/i5/i3 & Celeron® processor (Coffee Lake)
- Supports 2 COM, 6 USB and 8-CH DI/DO
- Two 2.5″ SATA drive bay
- 2 Key E 2230 for Wi-Fi
- Front I/O connectivity design
- Flexible I/O window supported
-
AES671-521-POE Fanless System
View specifications- 9th/8th gen Intel® Core™ i7/i5/i3 & Celeron® with Intel® Q370 chipset
- 4-CH PoE (IEEE802.3at compliance)
- Dual swappable 2.5″ SATA HDD drive bay with RAID 0 &1
- Supports MXM 3.1 type A graphics module (optional)
- Supports Intel® Movidius™ Myriad™ X VPU (optional mPCIe)
- Supports Intel® Distribution of OpenVINO™ toolkit (optional)
- DVI-I, HDMI, and DisplayPort with triple-view supported
-
AES710-521 Fanless System
View specifications- Intel® Xeon®, 9th/8th gen Intel® Core™ i7/i5/i3 or Celeron® processor
- 2 DDR4 ECC/non-ECC memory supported, up to 64GB
- Dual swappable 2.5″ SATA HDD drive bays with RAID 0 &1
- DVI-I, HDMI, and DisplayPort with triple-view supported
- 6 GbE LAN, 6 USB 3.2 and 1 PCIe x4 expansion slot
- Flexible I/O window supported
-
NES-3900E Fanless System
View specifications- Supports 8th generation Intel® Core™ i7/i5/i3 LGA embedded processors
- Intel® Q370 PCH chipset
- Supports 1 x 2.5″ SATA HDD
- 1 x DVI-D, 1 x DP, and 1 x HDMI with independent display support
- Three Intel® GbE LAN ports; supports WoL, teaming and PXE
- 1 x External M.2 socket and 1 x SIM card socket
- 6 x USB 3.0, 4 x USB 2.0, 2 x RS232/422/485 with auto flow control
- 1 x Internal mini-PCIe socket
- Supports +9V to 30VDC input; ATX power mode
- Supports 1 x PCIe x4 slot
-
NES-3900E-H310 Fanless System
View specifications- Supports 8th generation Intel® Core™ i7/i5/i3 LGA embedded processors
- Intel® H310 PCH chipset
- Supports 1 x 2.5″ SATA HDD
- 1 x DVI-D and 1 x HDMI with independent display support
- Two Intel® GbE LAN ports
- 1 x External M.2 socket and 1 x SIM card socket
- 4 x USB 3.0, 2 x USB 2.0, 2 x RS232/422/485 with auto flow control
- 2 x Internal mini-PCIe sockets
- Supports +9V to 30VDC input; ATX power mode
- Supports 1 x PCIe x4 slot
-
NES-3900E2/P2/P2E Fanless System
View specifications- Supports 8th generation Intel® Core™ i7/i5/i3 LGA embedded processors
- Intel® Q370 PCH chipset
- Choice of 2 x PCIe slots or 2 x PCI slots or 1 x PCIe/1 x PCI slots
- Supports 1 x 2.5″ SATA HDD
- 1 x DVI-D, 1 x DP, and 1 x HDMI with independent display support
- Three Intel® GbE LAN ports; supports WoL, teaming and PXE
- 1 x External M.2 (M-key 2242) socket and 1 x SIM card socket
- 6 x USB 3.0, 4 x USB 2.0, 2 x RS232/422/485 with auto flow control
- 1 x Internal mini-PCIe socket
- Supports +9V to 30VDC input; ATX power mode
-
NES-3900R Fanless System
View specifications- Supports 8th generation Intel® Core™ i7/i5/i3 LGA embedded processors
- Intel® Q370 PCH chipset
- Supports 2 x 2.5″ SATA HDD & RAID 0/1
- 1 x DVI-D, 1 x DP, and 1 x HDMI with independent display support
- Three Intel® GbE LAN ports; support WoL, teaming and PXE
- 1 x External M.2 socket and 1 x SIM card socket
- 6 x USB 3.0, 4 x USB 2.0, 2 x RS232/422/485 with auto flow control
- 1 x Internal mini-PCIe socket
- Supports +9V to 30VDC input; ATX power mode
-
NES-106-N3710 Fanless System
View specifications- On board Intel® Pentium® processor N3710 Quad Core, 1.6GHz
- 3 x display output: 1 x HDMI display + 1 x DVI-D + 1 x DP port
- 2 x Intel® I210AT GbE LAN ports; Support WoL, Teaming and PXE
- 4 x USB3.0
- 2 x DB9 for RS232/422/485, 2 x DB9 for RS232
- 1 x interface for optional Wi-Fi/3.5G/LTE modules
- Supports -5 ~ 55 degree C extended operating temperature
- Supports 9-30VDC input
-
NES-107 Fanless System
View specifications- On board Intel Atom® x5-E3930 Dual Core processor, 1.80 GHz
- 2 x Display output, 1 x DVI-D and 1 x DP port
- 2 x Intel® I210IT GbE LAN ports; support WoL, teaming and PXE
- Support both 2.5” HDD and M.2 (front access)
- 4 x USB3.0
- 2 x DB9 for RS232/422/485
- 1 x mini-PCIe for optional Wi-Fi/LTE wireless module
- Supports -20°C~70 °C extended operating temperature
- Support 9~30V DC input; support ATX power mode
-
NES-107-E3940 Fanless System
View specifications- On board Intel Atom® x5-E3940 Quad Core Processor, 1.80 GHz
- 2 x Display output, 1 x DVI-D and 1 x DP port
- 2 x Intel® I210IT GbE LAN ports; support WoL, teaming and PXE
- Support both 2.5” HDD and M.2 (front access)
- 4 x USB3.0
- 2 x DB9 for RS232/422/485
- 1 x mini-PCIe for optional Wi-Fi/LTE wireless module
- Supports 5°C~55 °C extended operating temperature
- Support 9~30V DC input; support ATX power mode
-
NES-108 Fanless System
View specifications- On board Intel® Celeron® processor J3455 Quad Core, 1.50GHz
- Dual independent display from DP1 & DP2
- 2 x Intel® I210-IT GbE LAN ports; support WoL, teaming and PXE
- Support both 2.5” HDD and M.2 (front access)
- 2 x USB 2.0 & 2 x USB 3.0
- 3 x COM ports (COM3 with RS232/422/485, jumper-free setting)
- Supports -5°C~55 °C extended operating temperature
- Support 24V DC input
