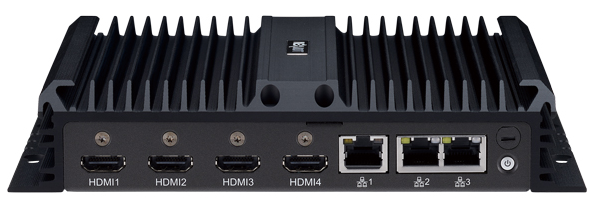

NES70-E01/E02/E03 Fanless System
- Intel® 11th Gen i7/i5 or Celeron®
- 4 x HDMI ports, support 4K@30Hz
- Fanless and compact design
- 3 x GbE LAN & 2 x COM ports
- Wide operating temperature range -5°C to 55°C
- Supports +12V/24V DC input
- 1 x M.2 & 1 x mini-PCIe expansion slot
- Windows 10, Linux 4.19
Specifications
| PROCESSOR | Intel® Celeron® 6305E processor fanless system
Intel® Core™ i5 1145G7E processor system with fan (optional fanless with 15W TDP limit) Intel® Core™ i7 1185G7E processor system with fan (optional fanless with 15W TDP limit) |
| CHIPSET | SoC |
| SYSTEM MEMORY | 1 x DDR4 3200 SO-DIMM socket, support up to 32GB |
| COM | 1 x RS2/422/485 auto flow control, 1 x RS232 |
| USB | 3 x USB 3.0, 1 x USB2.0 |
| ETHERNET | 2 x Intel® I211 and 1 x Intel® WGI219LM GbE LAN ports |
| DISPLAY | 4 x HDMI ports, support 4K@30Hz |
| EXPANSION | 1 x mini-PCIe socket for optional Wi-Fi/BT/4G LTE/mSATA
1 x M.2, support Key B & B+M module for optional 4G LTE/5G/SATA storage (SATA/PCIe/USB, 2242/3042) |
| POWER SUPPLY | Power input: +12/+24V DC in |
| GPIO | 4 x GPI and 4 x GPO (programmable to GPI or GPO) |
| CONSTRUCTION | Aluminium and metal chassis with fanless design |
| OPERATING TEMPERATURE | Ambient with air flow: -5°C to 55°C (Celeron), 0°C to 50°C (Core i5/i7) (according to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14) |
| RELATIVE HUMIDITY | 10% – 95%, non-condensing |
| VIBRATION | Vibration protection with mSATA & M.2 condition: Random: 2Grms@5~500 Hz, IEC60068-2
64- Sinusoidal: 2Grms@5~500 Hz, IEC60068-2-6 |
| SHOCK | M.2/mSATA: 50G, half sine, 11ms, IEC60068-2-27 |

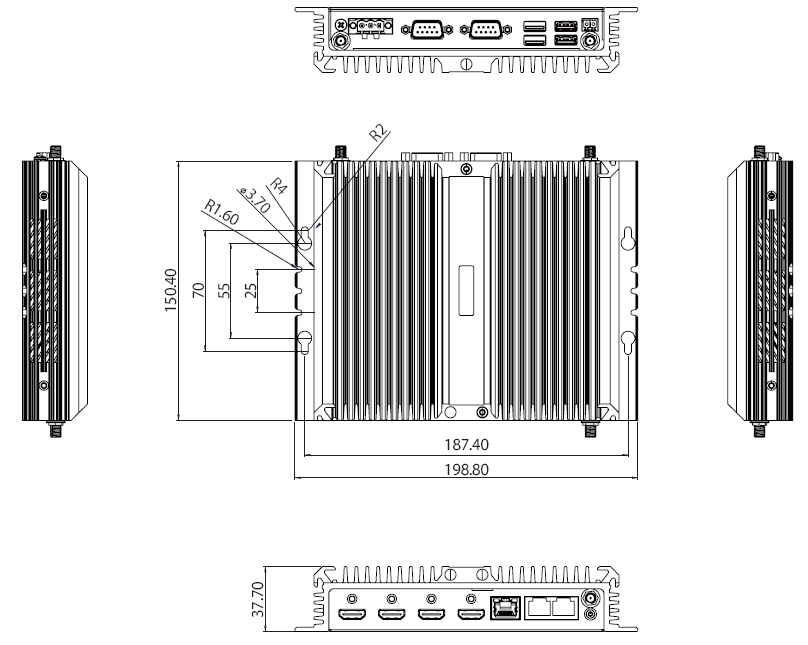

| DIMENSIONS (W X D X H) | 198.8mm (W) x 150.4mm (D) x 37.7mm (H) with wall mount bracket |
| CERTIFICATIONS | CE approval, FCC Class A |
| OS SUPPORT | Windows 10 Enterprise 64 bit, Linux Kernel version 4.19 |
| OPTIONS | AC adapter |
| PART NUMBERS | NES 70-E01 Intel® Celeron® 6305E (Tiger Lake-UP3) processor fanless system
NES 70-E02 Intel® Core™ i5 1145G7E (Tiger Lake-UP3) processor system with fan NES 70-E03 Intel® Core™ i7 1185G7E (Tiger Lake-UP3) processor system with fan |
