NES-107-E3940 Fanless System
- On board Intel Atom® x5-E3940 Quad Core Processor, 1.80 GHz
- 2 x Display output, 1 x DVI-D and 1 x DP port
- 2 x Intel® I210IT GbE LAN ports; support WoL, teaming and PXE
- Support both 2.5” HDD and M.2 (front access)
- 4 x USB3.0
- 2 x DB9 for RS232/422/485
- 1 x mini-PCIe for optional Wi-Fi/LTE wireless module
- Supports 5°C~55 °C extended operating temperature
- Support 9~30V DC input; support ATX power mode
Specifications
| PROCESSOR | On board Intel Atom® x5-E3940 Quad Core processor, 1.80 GHz, 2M Cache |
| SYSTEM MEMORY | 1 x DDR3L SO-DIMM socket, support DDR3L 1866 8GB RAM max., un-buffered and non-ECC |
| DISPLAY | Dual independent display: DVI-D + DP |

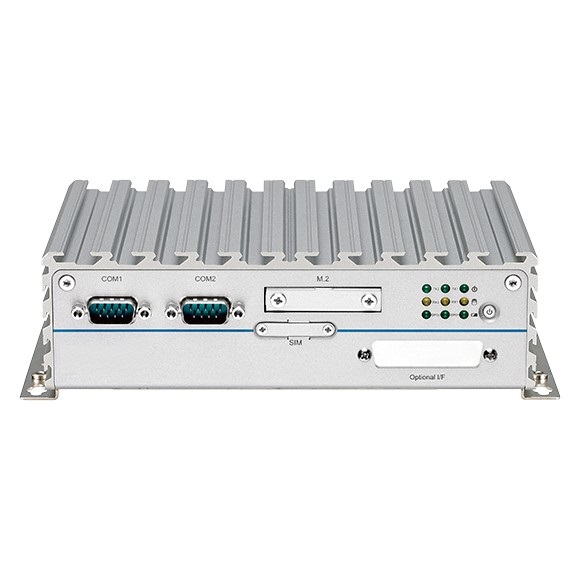

| I/O INTERFACE-FRONT | ATX power on/off switch
LED indicator: power status, HDD access, RTC battery low, Tx/Rx, GPO programmable LEDs 2 x DB9 for RS232/422/485 with auto flow control 1 x External M.2 socket support B, B+M key module 1 x SIM card holder 1 x Optional I/F opening for optional function output or module interface use |

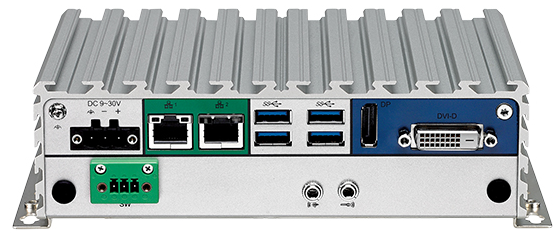

| I/O INTERFACE – REAR | 1 x Display port
1 x DVI-D port 4 x USB 3.0 ports (900mA per each) 2 x Intel® I210IT GbE LAN ports; support WoL, teaming and PXE 1 x Line-out and 1 x Mic-in 2 x Antenna holes for optional Wi-Fi/3.5G antenna 1 x 3-pin DC input, support +9 to 30VDC input 1 x 3-pin remote power on/off switch |
| I/O INTERFACE – INTERNAL | 4 x GPI and 4 GPO (5V, TTL Type) |
| STORAGE DEVICE | 1 x 2.5″ HDD (SATA 3.0)
1 x M.2, support B, B+M key module (2242) |
| EXPANSION SLOT | 1 x mini-PCIe socket support optional Wi-Fi/4G LTE/3.5G modules |
| POWER REQUIREMENTS | Power input: +9 to 30 VDC
1 x Optional 24V, 60W power adapter |
| SUPPORTED OS | Windows 10 IoT Enterprise, 64-bit
Linux Kernel version 4.1 |

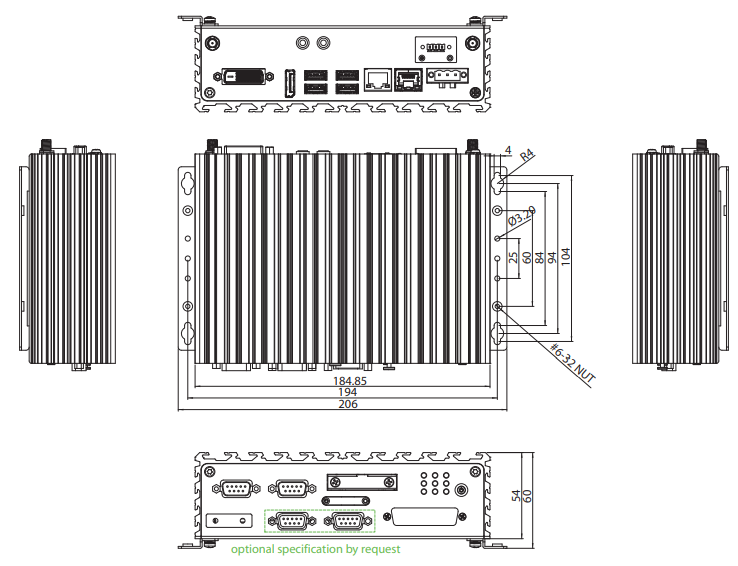

| DIMENSIONS | 185mm (W) x 131mm (D) x 54mm (H) without wall-mount bracket |
| MECHANICAL CONSTRUCTION | Aluminium and Metal Chassis with fanless design |
| ENVIRONMENT | Operating temperature
Ambient with air flow: -5°C to 55°C (according to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14) Storage temperature: -20°C to 80°C Relative humidity: 95% at 40°C Shock protection – HDD: 20G @ wall mount, half sine, 11ms(operation), IEC60068 2-27 – M.2: 50G @ wall mount, half sine, 11ms(operation) , IEC60068 2-27 Vibration protection w/ HDD condition – Random: 0.5Grms @ 5~500 Hz, IEC60068-2-64 – Sinusoidal: 0.5Grms @ 5~500 Hz, IEC60068-2-6 Vibration protection w/ M.2 & SSD condition – Random: 2Grms @ 5~500 Hz, IEC60068-2-64 – Sinusoidal: 2Grms @ 5~500 Hz, IEC60068-2-6 |
| CERTIFICATIONS | CE approval
– EN61000-6-2 – EN61000-6-4 FCC Class A |
| OPTIONS | 24V, 60W AC/DC power adapter w/o power cord |
