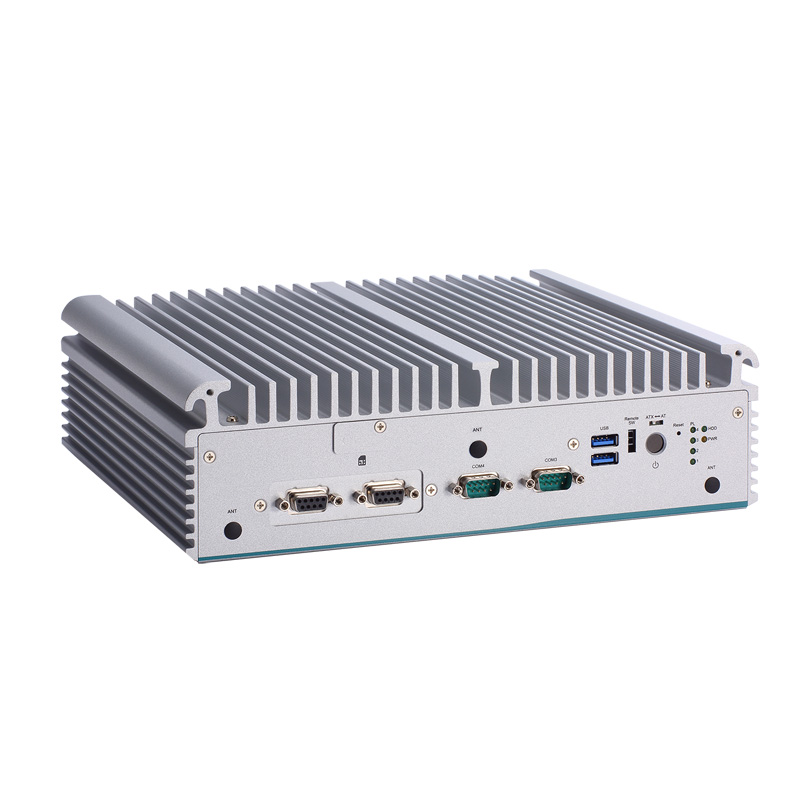

AES671A-CML/POE Fanless System
- 10th Gen Intel® Core™ & Celeron®
- Intel® W480E chipset
- 4GbE LAN with optional PoE support
- Dual 2.5″ SATA SSD/HDD, RAID 0 &1
- Triple display 2 HDMI & 1 DisplayPort
- -40 °C to 70 °C operating temperature
- Wide range power input 9 to 48 VDC
Specifications
| PROCESSOR | LGA1200 socket Intel® Xeon®/10th gen Intel® Core™ i9/i7/i5/i3 or Celeron® processor (35W/65W) |
| CHIPSET | Intel® W480E |
| SYSTEM MEMORY | 2 x 260 pin DDR4-2933 ECC*/non-ECC SO-DIMM, up to 64GB (ECC memory support for Xeon®) |
| BIOS | AMI |
| COM | 2 x RS-232 & 2 x RS-232/422/485 |
| USB | 5 x USB 3.2 Gen2 & 1 x USB 3.2 Gen1 |
| ETHERNET/POE | 2 x 10GbE (X550-T2) by request
4 x GbE (PoE) (3 x Intel® I210-IT, 1 x Intel® I219-LM) |
| DISPLAY | 2 x HDMI 1.4b (lockable) & 1 x DisplayPort 1.2 ++ |
| STORAGE | 2 x 2.5” SATA HDD/SSD (up to 15 mm height & RAID 0 & 1)
2 x mSATA (enabled in BIOS setting & RAID 0 &1) |
| EXPANSION | 2 x Full-size PCI-Express Mini Card slot (USB + PCIe + SATA signal)
1 x M.2 Key B 3050 (for 5G) & 1 x Internal SIM slot for PCIe Mini Card slot |
| OTHERS | TPM 2.0, 1 x Flexible I/O window, 5 x Antenna opening, 1 x Power button, 1 x AT/ATX quick switch, 1 x Remote switch, 1 x Reset button, 1 x Grounding |
| POWER SUPPLY | 9 to 48 VDC |
| WATCHDOG TIMER | 255 levels, 1 to 255 sec. |
| CONSTRUCTION | Aluminium extrusion and heavy-duty steel, IP40 |
| OPERATING TEMPERATURE | -40°C to 70°C (-40°F to +158°F) with 0.7 m/s air flow (CPU TDP 35W)
-40°C to 60°C (-40°F to +158°F) with 0.7 m/s air flow (CPU TDP 65W) (with W.T. DRAM & SSD) |
| RELATIVE HUMIDITY | 10% to 90%, non-condensing |
| SHOCK | IEC 60068-2-27 (w/ SSD: 50G, half-sine, 11 ms duration) |
| VIBRATION | IEC 60068-2-64 (w/ SSD: 3Grms STD, random, 5 – 500 Hz, 1 hr/axis) |

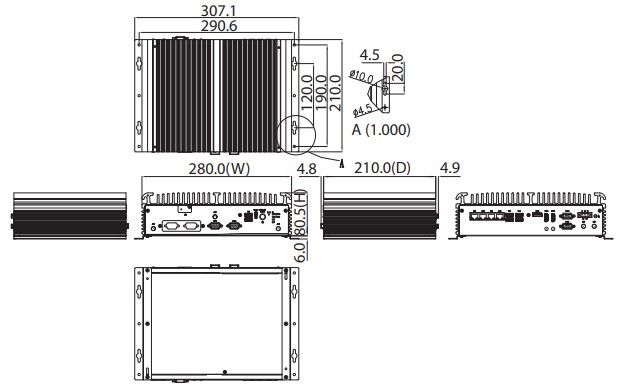

| DIMENSIONS (W X D X H) | 280 x 210 x 80.5 mm (11.02″ x 8.26″ x 3.16″) |
| WEIGHT (NET/GROSS) | 4.9 kg (10.8 lb)/7 kg (15.43 lb) |
| CERTIFICATIONS | CE, FCC Class A |
| OS SUPPORT | Win 10 IoT, Linux |
| MOUNTING | Optional Wall mount or DIN-rail mounting brackets |
| PART NUMBERS | AES671A-CML: Fanless system with 4 x LAN ports
AES671A-CML-POE: Fanless system with 4 x PoE ports |
| OPTIONS | Wi-Fi module, 3G/LTE module, CANbus Mini PCIE module. Dual LAN Mini PCIE module |
