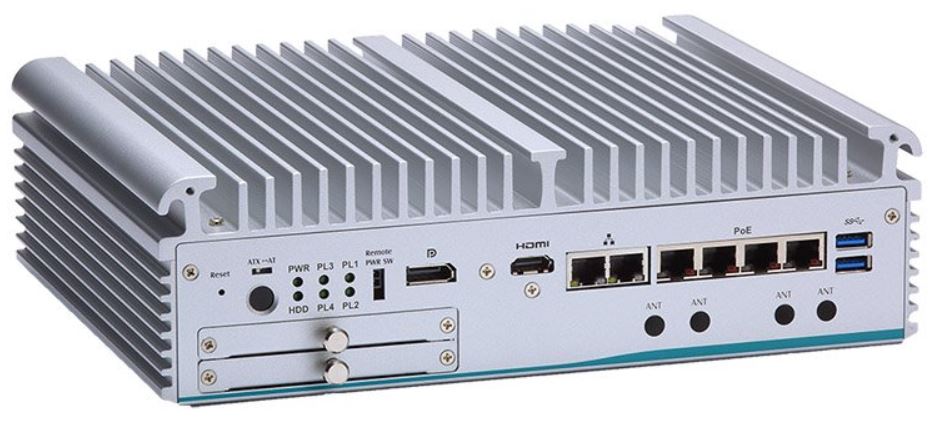

AES671-521-POE Fanless System
- 9th/8th gen Intel® Core™ i7/i5/i3 & Celeron® with Intel® Q370 chipset
- 4-CH PoE (IEEE802.3at compliance)
- Dual swappable 2.5″ SATA HDD drive bay with RAID 0 &1
- Supports MXM 3.1 type A graphics module (optional)
- Supports Intel® Movidius™ Myriad™ X VPU (optional mPCIe)
- Supports Intel® Distribution of OpenVINO™ toolkit (optional)
- DVI-I, HDMI, and DisplayPort with triple-view supported
Specifications
| PROCESSOR | LGA1151 9th gen Intel® Core™ i7/i5/i3 & Celeron® processors (35W)
LGA1151 8th gen Intel® Core™ i7/i5/i3 & Celeron® processors (35W/65W) |
| CHIPSET | Intel® Q370, Intel® C246 PCH (optional) |
| SYSTEM MEMORY | 2 x 260-pin DDR4-2666 SO-DIMM, up to 64GB (ECC supported by Intel® C246 PCH) |
| BIOS | AMI |
| COM | 2 x RS-232/422/485 |
| USB | 4 x USB 3.1 Gen2, 2 x USB 3.1 Gen1 |
| ETHERNET/POE | Standard: 2 x 10/100/1000 Mbps (Intel® i210-IT & i219-LM)
Option 1: 4 x Power over Ethernet (IEEE802.2at), up to 60W Option 2: 4 x Gigabit LAN ports (total of 6 Gigabit LAN ports) |
| DISPLAY | 2 x DisplayPort via optional MXM kit, 1 x HDMI, 1 x DisplayPort, 1 x DVI-I |
| STORAGE | 2 x 2.5″ HDD drive bay (max. up 9.5 mm height), 1 x mSATA (enabled in BIOS setting) |
| EXPANSION | 2 x Full-size PCIE Mini Card slot (USB+PCIe signal), 2 x SIM slot, 1 x Internal MXM 3.1 type A |
| OTHERS | 1 x I/O window (Default:2 x DB9 half cut bracket),4 x SMA-type antenna connector, TPM 2.0 |
| POWER SUPPLY | 24 VDC (optional 120W AC adaptor) |
| WATCHDOG TIMER | 255 levels, 1 to 255 sec. |
| CONSTRUCTION | Aluminium extrusion and heavy-duty steel, IP40 |
| OPERATING TEMPERATURE | Without MXM module: -40°C to 60°C (-40°F to +140°F) (with W.T. DRAM & SSD, CPU TDP 35W),
-40°C to 50°C (-40°F to +122°F) (with W.T. DRAM & SSD, CPU TDP 65W) With MXM module: -40°C to 50°C (-40°F to +122°F) (with W.T. DRAM & SSD, CPU TDP 35W) |
| RELATIVE HUMIDITY | 10% to 90%, non-condensing |
| SHOCK | Vibration Endurance IEC 60068-2-64 (w/ SSD: 3Grms STD, random, 5 – 500 Hz, 1 hr/axis) |
| VIBRATION | IEC 60068-2-27 (w/ SSD: 50G, half-sine, 11ms duration) |

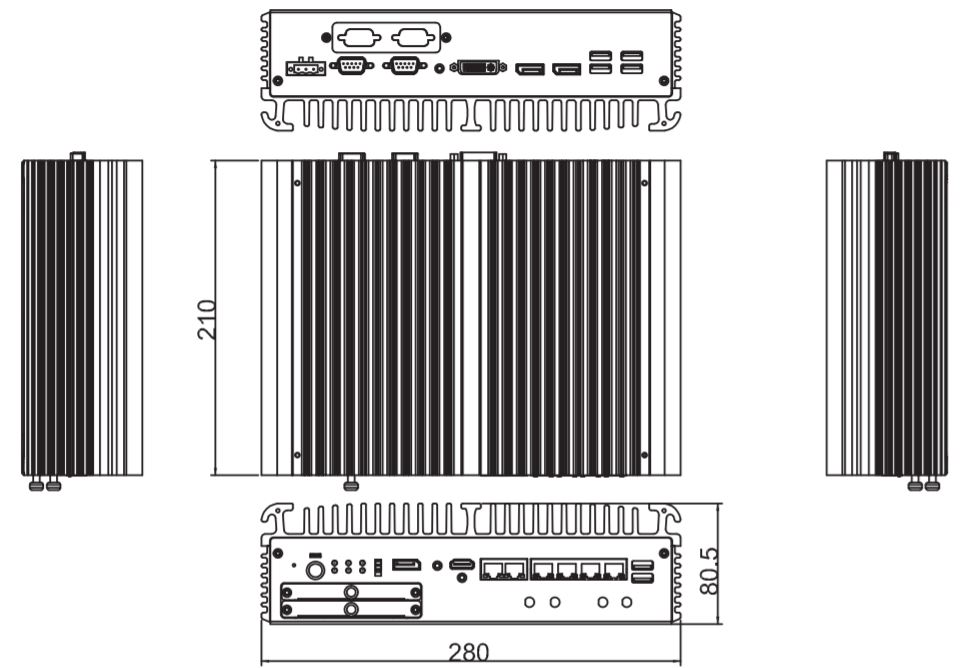

| DIMENSIONS (W X D X H) | 280 x 210 x 80.5 mm (11.02″ x 8.26″ x 3.16″) |
| WEIGHT (NET/GROSS) | 4.8 kg (10.58 lb)/5.6 kg (12.34 lb) |
| CERTIFICATIONS | CE, FCC Class A |
| OS SUPPORT | Win 10 IoT, Linux |
| MOUNTING | Optional Wall mount or DIN-rail mounting brackets |
| PART NUMBERS | AES671-521-POE: Fanless system LGA1151 9th/8th gen Intel® i7/i5/i3/Celeron® processor
AES671-521-6GBE: Fanless system LGA1151 9th/8th gen Intel® i7/i5/i3 & Celeron® processor |
| OPTIONS | Wi-Fi module, 3G/LTE module, MXM 3.1 type A module. CANbus PCIE Mini module. LAN PCIE Mini module, RS-232 cable for COM3/4, DIO PCIE Mini module |
