NES-3900E Fanless System
- Supports 8th generation Intel® Core™ i7/i5/i3 LGA embedded processors
- Intel® Q370 PCH chipset
- Supports 1 x 2.5″ SATA HDD
- 1 x DVI-D, 1 x DP, and 1 x HDMI with independent display support
- Three Intel® GbE LAN ports; supports WoL, teaming and PXE
- 1 x External M.2 socket and 1 x SIM card socket
- 6 x USB 3.0, 4 x USB 2.0, 2 x RS232/422/485 with auto flow control
- 1 x Internal mini-PCIe socket
- Supports +9V to 30VDC input; ATX power mode
- Supports 1 x PCIe x4 slot
Specifications
| PROCESSOR | Supports 8th generation Intel® Core™ i7/i5/i3 LGA socket type embedded processor
– Core™ i7-8700T, 6 Core, 2.4GHz, 12M Cache – Core™ i5-8500T, 6 Core, 2.1GHz, 9M Cache – Core™ i3-8100T, 4 Core, 3.1GHz, 6M Cache Turbo-boost disabled by default |
| SYSTEM MEMORY | 2 x DDR4 2400/2666 SO-DIMM socket, supports up to 16GB with un-buffered and non-ECC |
| DISPLAY | Three independent displays
– HDMI + DP+ DVI-D Dual independent displays – HDMI + DP – HDMI + DVI-D – DP + DVI-D |
| FRONT I/O INTERFACE STATUS LEDS | 3 x LAN active LEDs
2 x GPO status/COM1/2 TX/RX LEDs 1 x HDD access LEDs 1 x Battery low 1 x M.2 |

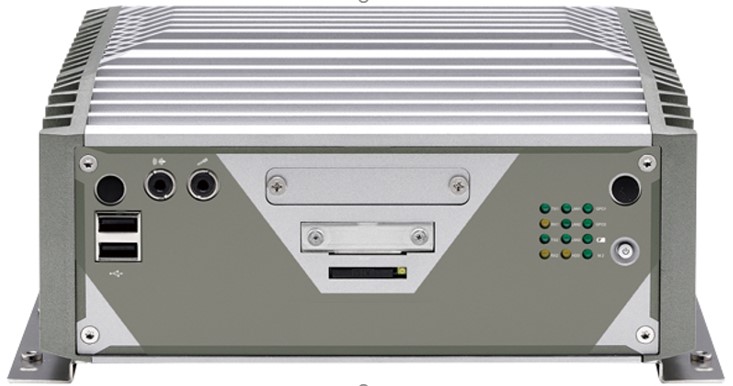

| I/O INTERFACE-FRONT | 1 x ATX power on/off switch
1 x DP 1 x Line-out and 1 x Mic-in 2 x Antenna holes 1 x External M.2 socket (M-key) 1 x SIM card holder 4 x USB 2.0 ports (500mA per each) |

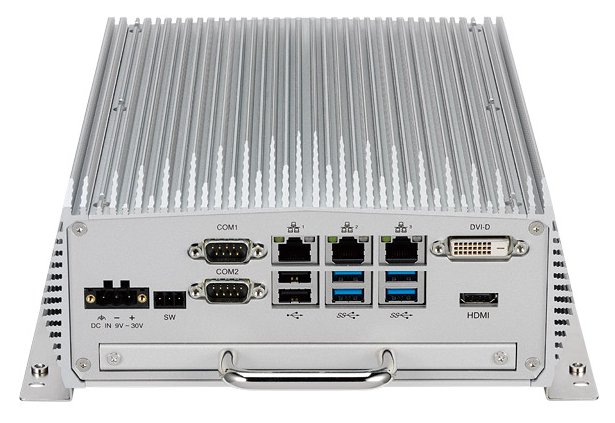

| I/O INTERFACE – REAR | 2 x DB9 for COM1 & COM2
– COM1: RS232/422/485 auto flow control – COM2: RS232/422/485 auto flow control 6 x USB 3.1 ports (900mA per each) 1 x DVI-D port 1 x HDMI port 2 x Intel® I210-IT GbE LAN ports; supports WoL, teaming and PXE 1 x Intel® I219-LM GbE LAN port 1 x 3-pin remote power on/off switch +9V to 30V DC input |
| INTERNAL I/O | COM3/COM4: internal box header, supports RS232 only
8CH GPIO: internal pin header, support 4 x GPO and 4 x GPI, TTL 5V level On-board TPM2.0 (SLB9665) for data encryption purpose 1 x Internal M.2 (B-key) support optional LTE |
| STORAGE DEVICE | 1 x External M.2 socket (M-key SATA 3.0, PCIe x4)
1 x 2.5″ HDD or SSD (SATA 3.0) drive bay |
| EXPANSION SLOT | One PCIe x4 expansion slot
– Add-on card length: 169mm max. – Power consumption: 10W/slot max. |
| POWER REQUIREMENTS | AT/ATX power mode (default: ATX power mode)
Power input: +9 to +30V DC Power adapter: optional AC to DC power adapter (24V DC, 120W) |

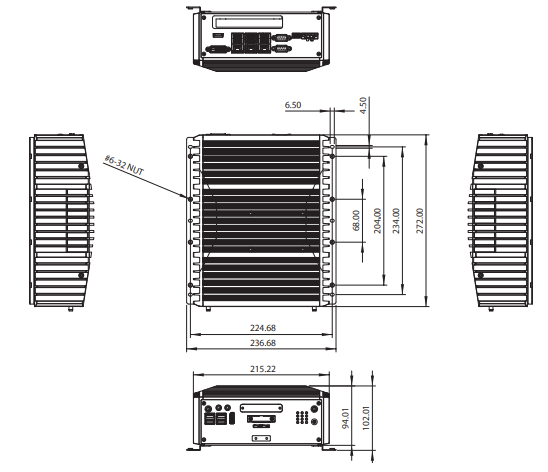

| DIMENSIONS | 215 mm(W) x 272mm (D) x 94mm (H) without wall mount bracket (8.5″x10.7″x 3.7″) |
| MECHANICAL CONSTRUCTION | Aluminium and metal chassis with fanless design |
| ENVIRONMENT | Operating temperature: Ambient with air flow: -5°C to 55°
(according to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14) Storage temperature: -20°C to 80°C Relative humidity: 10% to 95% (non-condensing) Shock protection: – HDD: 20G, half sine, 11ms, IEC60068-2-27 – M.2: 50G, half sine, 11ms, IEC60068-2-27 Vibration protection with HDD condition: – Random: 0.5Grms @ 5~500 Hz, IEC60068-2-64 – Sinusoidal: 0.5Grms @ 5~500 Hz, IEC60068-2-6 Vibration protection with SSD & M.2 condition: – Random: 2Grms @ 5~500 Hz, IEC60068-2-64. – Sinusoidal: 2Grms @ 5~500 Hz, IEC60068-2-6 |
| SUPPORTED OS | Windows 10 64-bit
Linux Kernel 4.9 |
| CERTIFICATIONS | CE approval- EN61000-6-2- EN61000-6-4
FCC Class A |
| WEIGHT | Gross weight: 6.54kg
Net weight: 5kg |
