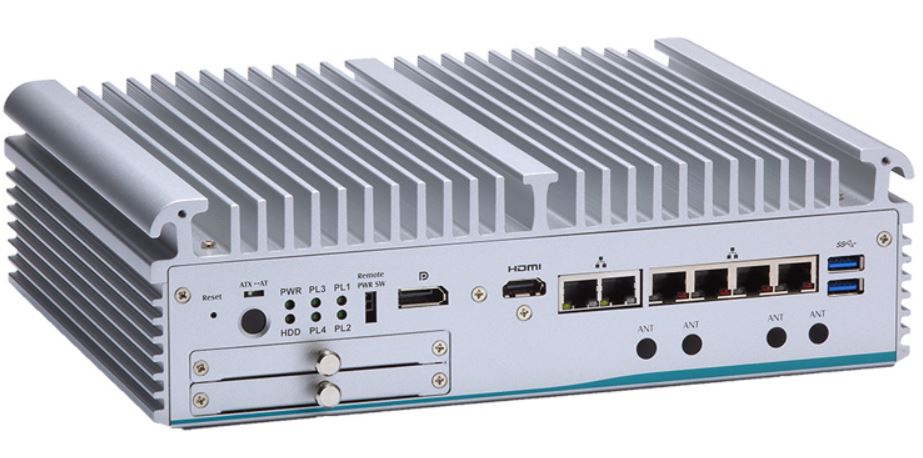

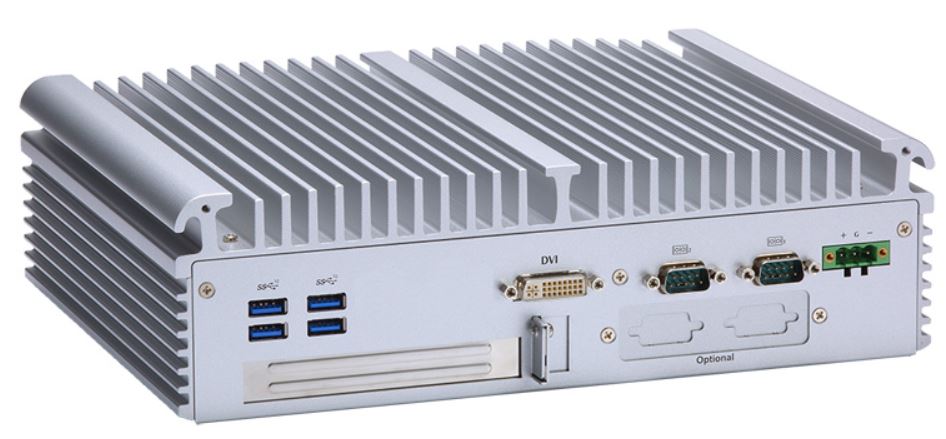

AES710-521 Fanless System
- Intel® Xeon®, 9th/8th gen Intel® Core™ i7/i5/i3 or Celeron® processor
- 2 DDR4 ECC/non-ECC memory supported, up to 64GB
- Dual swappable 2.5″ SATA HDD drive bays with RAID 0 &1
- DVI-I, HDMI, and DisplayPort with triple-view supported
- 6 GbE LAN, 6 USB 3.2 and 1 PCIe x4 expansion slot
- Flexible I/O window supported
Specifications
| PROCESSOR | LGA1151 Intel® Xeon®, 9th/8th gen Intel® Core™ i7/i5/i3 or Celeron® processor |
| CHIPSET | Intel® C246 |
| SYSTEM MEMORY | 2 x 260-pin DDR4-2666 ECC/non-ECC SO-DIMM, up to 64GB (ECC memory available with Intel® Xeon® and Core™ i3 processors) |
| BIOS | AMI |
| COM | 2 x RS-232/422/485 |
| USB | 4 x USB 3.2 Gen2, 2 x USB 3.2 Gen1 |
| ETHERNET/POE | 6 x 10/100/1000 Mbps Ethernet (5 x i210-IT & i219-LM) |
| DISPLAY | 1 x HDMI, 1 x DisplayPort, 1 x DVI-I |
| DIGITAL I/O | N/A |
| AUDIO | 1 x Audio (Mic-in/Line-out) |
| STORAGE | 2 x 2.5″ HDD drive bay (max. up 9.5 mm height), 1 x mSATA (enabled in BIOS setting) |
| EXPANSION | 2 x Full-size PCI Express Mini Card slot (USB + PCIe signal), 1 x PCIe x4 slot, 2 x SIM slot |
| OTHERS | TPM 2.0, 1 x Phoenix type VDC power input connector, 1 x AT/ATX quick switch, 1 x ATX power switch, 1 x Reset switch, 1 x Remote switch, 1 x Flexible I/O window (Default : 2 x DB9 half-cut bracket), 4 x SMA-type antenna connector |
| POWER SUPPLY | 24 VDC |
| WATCHDOG TIMER | 255 levels, 1 to 255 sec. |
| CONSTRUCTION | Aluminium extrusion and heavy-duty steel, IP40 |
| OPERATING TEMPERATURE | -40°C to 70°C (-40°F to 158°F) |
| RELATIVE HUMIDITY | 10% to 90%, non-condensing |
| VIBRATION | IEC 60068-2-64 (w/ SSD: 3Grms STD, random, 5 – 500 Hz, 1 hr/axis) |
| SHOCK | IEC 60068-2-27 (w/ SSD: 50G@wall mount, half-sine, 11 ms duration) |

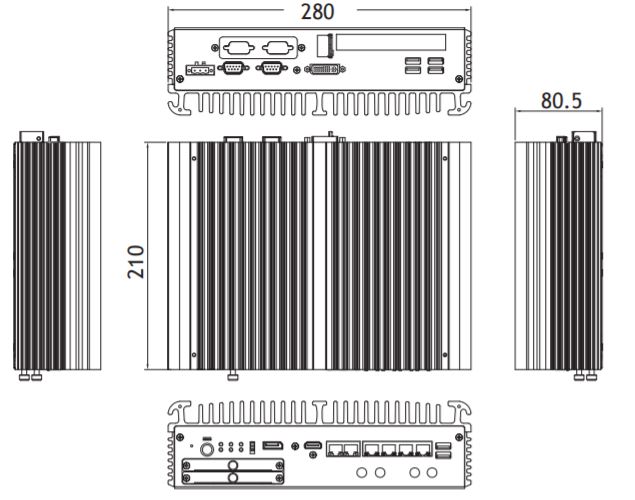

| DIMENSIONS (W X D X H) | 280 x 210 x 80.5 mm (11.02″ x 8.26″ x 3.16″) |
| WEIGHT (NET/GROSS) | 4.8 kg (10.58 lb)/5.6 kg (12.34 lb) |
| CERTIFICATIONS | CE, FCC Class A |
| OS SUPPORT | Win 10 IoT, Linux |
| MOUNTING | Wall mount, DIN-rail |
| PART NUMBERS | AES710-521: Fanless embedded system with LGA1151 Intel® Xeon®, 9th/8th gen Intel® Core™ i7/i5/i3 or Celeron® processor, Intel® C246, ECC/non-ECC memory 1 PCIe x4 expansion slot and 24 VDC |
| OPTIONS | Wall mount kit, DIN-rail kit, Wi-Fi module, 3G/LTE module, 24V, 120W adapter, CANBus PCI Express Mini module, LAN PCI Express Mini module, RS-232 cable, L=200 mm for COM3/4, DIO PCI Express Mini module, 3.5 mm audio I/O & half PCI Express Mini module |
