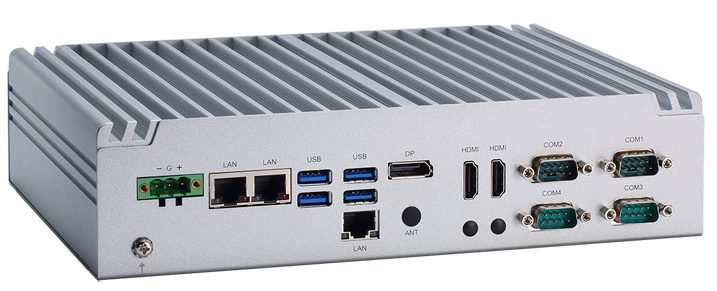

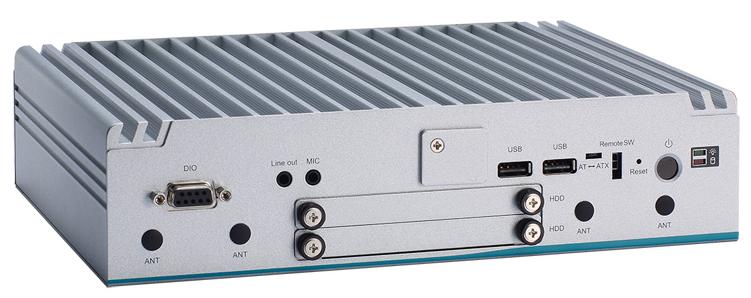

AES630A Series Fanless System
- Intel® 11th Gen i7/i5/i3 or Celeron®
- 2 x HDMI, 1 x VGA display outputs
- Fanless and compact design
- 3 x 2.5GE LAN, 4 COM and 6 USB
- Wide operating temperature range -40°C to 60°C
- 9 to 48 VDC wide range power input
- Supports TPM 2.0
- Win 10 IoT, Linux
Specifications
| PROCESSOR | Intel® Core™ i7-1185G7E/i5-1145G7E/i3-1115G4E or Celeron® 6305E (TDP up to 15W) |
| CHIPSET | SoC integrated |
| SYSTEM MEMORY | 2 x 260-pin DDR4-3200 SO-DIMM, up to 64GB |
| BIOS | AMI |
| COM | 2 x RS-232/422/485, 2 x RS-232 |
| USB | 2 x USB 2.0 & 4 x USB 3.2 Gen1 |
| ETHERNET/POE | 2 x 10/100/2500 Mbps Ethernet (Intel® i226-IT)
1 x 10/100/2500 Mbps Ethernet (Intel® i226-LM) |
| DISPLAY | 2 x HDMI 1.4b & 1 x DisplayPort++ 1.4a |
| DIGITAL I/O | 1 x 8-CH TTL DIO via DB9 female (4-in/4-out) |
| STORAGE | 2 x 2.5” swappable SSD/HDD drive bay (max. up 9.5 mm height & RAID 0,1)
1 x NVMe M.2 Key M 2280 (PCIe x 4 only) |
| EXPANSION | 1 x Full-size PCI Express Mini Card (USB + PCIe signal)
1 x M.2 Key E 2230 (for Wi-Fi) 1 x Front-access SIM slot |
| OTHERS | TPM 2.0, 4 x Antenna opening
1 x ATX power switch, 1 x Remote power switch, 1 x Reset switch, 1 x AT/ATX quick switch |
| POWER SUPPLY | 9 to 48 VDC; 1 x Phoenix-type VDC power input connector |
| WATCHDOG TIMER | 255 levels, 1 to 255 sec. |
| CONSTRUCTION | Aluminium extrusion and heavy-duty steel, IP40 |
| OPERATING TEMPERATURE | -40°C to +60°C (-40°F to +140°F) with 0.5 m/s air flow (with W.T. DRAM & SSD,CPU TDP 15W) |
| RELATIVE HUMIDITY | 10% to 95%, non-condensing |
| SHOCK | IEC 60068-2-27 (with SSD: 50G, half sine, 11 ms duration) |
| VIBRATION | IEC 60068-2-64 (with SSD: 3Grms STD, random, 5 to 500 Hz, 1 hr/axis) |

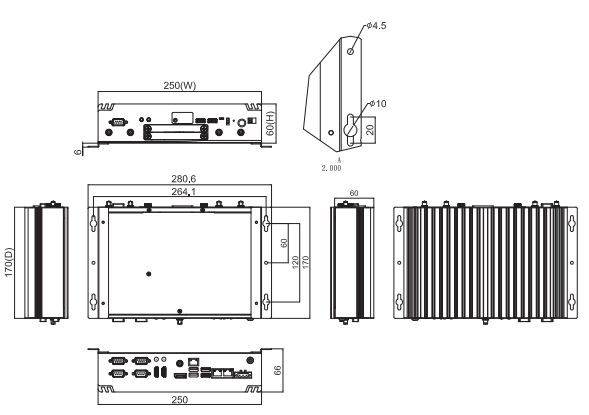

| DIMENSIONS (W X D X H) | 250 x 170 x 60 mm (9.84” x 6.69” 2.36”) |
| WEIGHT (NET/GROSS) | 2.4 kg (5.29 lb)/3.2 kg (7.0 lb) |
| CERTIFICATIONS | CE, FCC Class A |
| OS SUPPORT | Win 10 IoT, Linux |
| MOUNTING | Wall mount, DIN-rail, VESA mount |
| PART NUMBERS | AES630A-11U-i7: Fanless embedded system with Intel® Core™ i7-1185G7E
AES630A-11U-i5: Fanless embedded system with Intel® Core™ i5-1145G7E AES630A-11U-i3: Fanless embedded system with Intel® Core™ i3-1115G4E AES630A-11U-CEL: Fanless embedded system with Intel® Core™ Celeron 6305UE |
| OPTIONS | Wall mount kit, DIN-rail kit, 24V 120W power adapter, Power cord, 3G/LTE module |
