NES-106-N3710 Fanless System
- On board Intel® Pentium® processor N3710 Quad Core, 1.6GHz
- 3 x display output: 1 x HDMI display + 1 x DVI-D + 1 x DP port
- 2 x Intel® I210AT GbE LAN ports; Support WoL, Teaming and PXE
- 4 x USB3.0
- 2 x DB9 for RS232/422/485, 2 x DB9 for RS232
- 1 x interface for optional Wi-Fi/3.5G/LTE modules
- Supports -5 ~ 55 degree C extended operating temperature
- Supports 9-30VDC input
Specifications
| PROCESSOR | On board Intel® Pentium® Quad Core Processor N3710, 2M Cache, 1.6GHz |
| SYSTEM MEMORY | 1 x DDR3L SO-DIMM socket, support DDR3L 1600 8GB RAM max., un-buffered and non-ECC |
| DISPLAY | 1 x HDMI + 1 x DVI-D + 1 x DP display port |

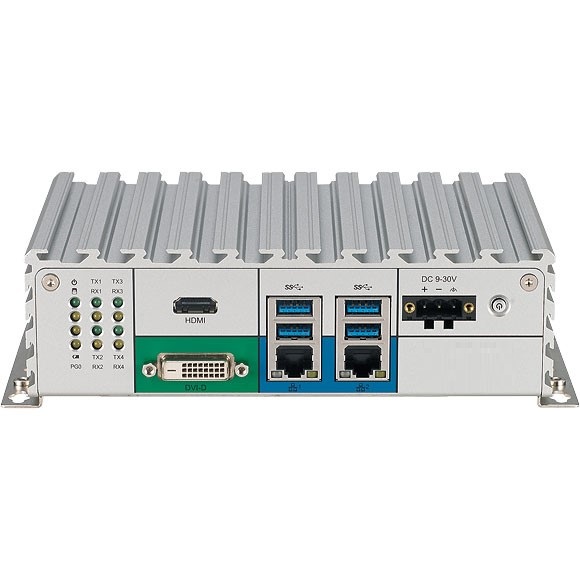

| I/O INTERFACE-FRONT | ATX power on/off switch
1 x Power status/1 x HDD access/1 x battery low/1 x programing/ 4 x Tx/Rx LEDs 2 x Intel® I210AT GbE LAN ports; Support WoL, Teaming and PXE 1 x HDMI + 1x DVI-D display output 4 x USB 3.0 (900mA per each) 1 x 3-pin DC input, support +9 to 30VDC input |

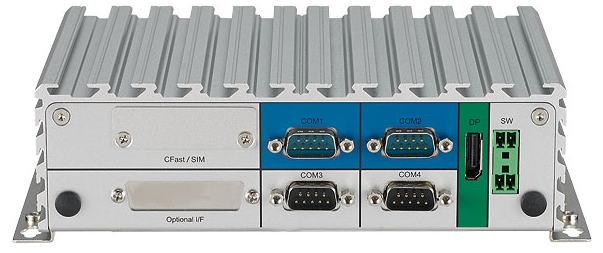

| I/O INTERFACE – REAR | 1 x Display Port
1 x SIM Card holder 1 x external CFast socket 2 x DB9 for RS232/422/485 with auto flow control (COM1 and COM2) 2 x DB9 for RS232 (COM3 and COM4) 2 x Antenna holes for optional Wi-Fi/3.5G antenna 1 x remote power on/off switch 1 x optional I/F for optional Mini-PCIe Wi-Fi/3.5G/LTE/NEXCOM’s automation module output |
| I/O INTERFACE – INTERNAL | 4 x GPI and 4 GPO (5V, TTL Type) |
| STORAGE DEVICE | 1 x 2.5″ HDD (SATA3.0) |
| EXPANSION SLOT | 1 x Mini-PCIe socket for optional Wi-Fi/4G LTE/3.5G modules |
| POWER REQUIREMENTS | Power input: +9 to 30 VDC
1 x optional 24V, 60W power adapter |
| SUPPORTED OS | Windows 7, 64-bit only
Windows 8.1 , 64-bit only Windows Embedded Standard 7, 64-bit only Windows 10 IoT Enterprise, 64-bit only Linux Kernel version 4.4 |
| DIMENSIONS | 185mm (W) x 131mm (D) x 54mm (H) without wall-mount bracket |
| MECHANICAL CONSTRUCTION | Aluminium and Metal Chassis with fanless design |
| ENVIRONMENT | Operating Temperature:
Ambient with air flow: -5°C to 55°C (according to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14) Storage temperature: -30°C to 85°C Relative Humidity: 10% to 95% (non-condensing) Shock protection: – HDD: 20G, half sine, 11ms, IEC60068-2-27 – CFast: 50G, half sine, 11ms, IEC60068-2-27 Vibration protection w/HDD condition: – Random: 0.5Grms @ 5~500 Hz, IEC60068-2-64 – Sinusoidal: 0.5Grms @ 5~500 Hz, IEC60068-2-6 Vibration protection w/CFast & SSD condition: – Random: 2Grms @ 5~500 Hz, IEC60068-2-64 – Sinusoidal: 2Grms @ 5~500 Hz, IEC60068-2-6 |
| CERTIFICATIONS | CE
FCC Class A |
| OPTIONS | 24V, 60W AC/DC power adapter w/o power cord |
