AES630-528-Series Fanless System
- 8th gen Intel® Core™ i7/i5/i3 & Celeron® ULT processor
- Dual-channel DDR4 2400 SO-DIMM up to 64GB memory
- Supports 2 HDMI, VGA, 3 GbE LAN, 4 COM and 6 USB
- Trusted platform module (TPM 2.0 on board)
- Fanless -40°C to +70°C* operating temperature
- 9 to 36 VDC wide range DC power input
Specifications
| PROCESSOR | Intel® Core™ i7-8665UE/i5-8365UE/i3-8145UE & Celeron® 4305UE (TDP up to 15W) |
| CHIPSET | SoC integrated |
| SYSTEM MEMORY | 2 x 260-pin DDR4-2400 SO-DIMM, up to 64GB |
| BIOS | AMI |
| COM | 2 x RS-232/422/485, 2 x RS-232 |
| USB | 2 x USB 3.1 Gen2, 2 x USB 3.1 Gen1, 2 x USB 2.0 |
| ETHERNET/POE | 3 x 10/100/100 Mbps Ethernet (Intel® i219LM, Intel® i211AT) |
| DISPLAY | 2 x HDMI (lockable), 1 x VGA |
| DIGITAL I/O | 8-CH TTL DIO via DB9 female |
| AUDIO | 1 x Audio (Mic-in/Line-out) |
| STORAGE | 2 x 2.5” swappable HDD drive bay (max. up 9.5 mm height), 1 x mSATA (enabled in BIOS setting) |
| EXPANSION | 2 x Full-size PCI Express Mini Card, Slot A (USB + PCIe signal), Slot B (USB + PCIe + SATA signal) |
| OTHERS | TPM 2.0, 1 x Phoenix type VDC power input connector, 1 x ATX power switch, 1 x AT/ATX quick switch, 1 x Remote power switch, 1 x Reset switch, 1 x Front-access SIM slot, 4 x SMA-type antenna opening |
| POWER SUPPLY | 9 to 36 VDC |
| WATCHDOG TIMER | 255 levels, 1 to 255 sec. |
| CONSTRUCTION | Aluminium extrusion and heavy-duty steel, IP40 |
| OPERATING TEMPERATURE | -40°C to +70°C (-40°F to +158°F) with 0.7 m/s air flow, -40°C to +65°C (-40°F to +149°F) with 0.5 m/s air flow (with W.T. DRAM & SSD,CPU TDP 15W) |
| RELATIVE HUMIDITY | 10% to 95%, non-condensing |
| SHOCK | IEC 60068-2-27 (with SSD: 50G, half sine, 11ms duration) |
| VIBRATION | IEC 60068-2-64 (with SSD: 3Grms STD, random, 5 to 500 Hz, 1 hr/axis) |

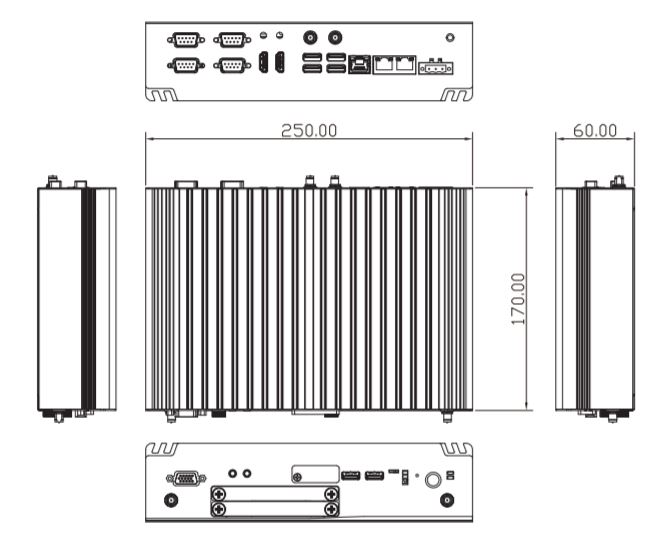

| DIMENSIONS (W X D X H) | 250 x 170 x 60 mm (9.84” x 6.69” 2.36”) |
| WEIGHT (NET/GROSS) | 1.38 kg (3.04 lb)/2.08 kg (4.59 lb) |
| CERTIFICATIONS | CE, FCC Class A |
| OS SUPPORT | Win 10 IoT, Linux |
| MOUNTING | Wall mount, DIN-rail, VESA mount |
| PART NUMBERS | AES630-528-8665UE: Fanless embedded system with Intel® Core™ i7-8665UE
AES630-528-8365UE: Fanless embedded system with Intel® Core™ i5-8365UE AES630-528-8145UE: Fanless embedded system with Intel® Core™ i3-8145UE AES630-528-4305UE: Fanless embedded system with Intel® Core™ Celeron 4305UE |
| OPTIONS | Wall mount kit, DIN-rail kit, Power cord, 3G/LTE module |
