TBL8650W Rugged Tablet
- Windows 10 Pro Operating System
- 8.0” 1280 x 800 resolution screen
- 3-year warranty as standard
- 15 hour hot swappable battery
- 8Gb of memory & 128Gb storage
- Intel® Atom Quad Core x5-Z8550 CPU
- MIL-STD 810G shock & drop tested
- IP65 sealed for water & dust protection
Specifications
| DIMENSIONS | 9.16″ W x 5.91″ H x 0.87″ D (232.6 mm W x 150 mm H x 22 mm D) |
| DISPLAY | 8″ diagonal widescreen, 1280W x 800H IPS; 370 nits |
| TOUCH PANEL | 10-point Multi Touch Capacitive, Glove Touch, Anti-water drop screen, Stylus included |
| SCREEN PROTECTION | Oleophobic, scratch-resistant glass |
| WEIGHT | 1.87 lb. (0.85 kg) – base configuration |
| IP RATING | IP65 Sealing (water and dust) |
| DROP / SHOCK PROTECTION | MIL-STD 810G with 5 foot drop height 26 repeated drops to 1 operating unit on to plywood over concrete from 60 inches |
| OPERATING TEMPERATURE | 14° F to +122° F (-10° C to +50° C) |
| STORAGE TEMPERATURE | -4° F to +140° F (-20° C to +60° C) |
| HUMIDITY | 95% non-condensing |
| PROCESSOR | Intel® Atom X5-Z8550 |
| SYSTEM MEMORY | 8GB RAM LPDDR3 |
| STORAGE | 128Gb eMMC |
| OPERATING SYSTEM | Windows® 10 Professional 64-bit |

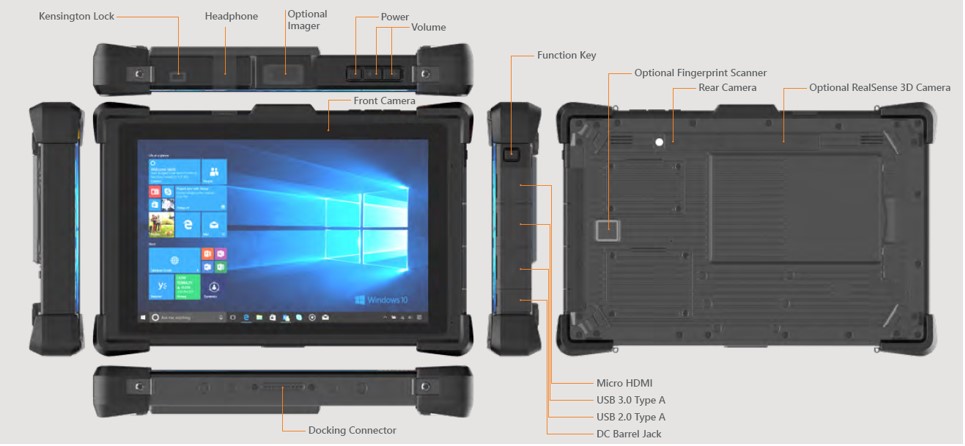

| BUTTONS | Barcode scanner trigger (Scanner IMG model), power, volume +/- |
| IO PORTS | USB3.0 & USB2.0
HDMI Type D (Micro) 3.5mm Aux Power – DC Barrel Jack Standard SIM Card Slot (2FF) MicroSD Slot |
| BATTERY | XL High Capacity: 43Wh, 11850mAH (Up to 15 hours)
Hot swappable with 150mAH backup battery |
| AUDIO | Intel HD audio, built-in digital microphone |
| CAMERA | 8MP auto focus w/ flash (rear-facing) 2MP (front-facing) |
| APPROVALS | FCC Class B , FCC/SAR, cUS, CE, CB, TUV |
| WLAN | Intel Wireless-AC 9260 (2.4/5.0Ghz) (a/b/g/n/AC) |
| BLUETOOTH | BT5.1 |
| GPS / 4G LTE / NFC | Included Ublox NEO-M8N GPS
Optional 4G LTE |
| 4G LTE / SCANNER | Optional 4G LTE module & 2D scanner |
| MSR | Optional Magnetic Strip Reader |
| PART NUMBERS | TBL8650W: Tablet specifications as per above
TBL8650W-IMG: Tablet specifications as per above, with integrated 2D Barcode Scanner |
| WARRANTY | Three year return to base warranty as standard
Option to enhance warranty to cover accidental damage |
| VEHICLE MOUNTING OPTIONS | Powered Forklift/Vehicle Dock – Includes: USB (2), RS232 (2), VGA (1), Audio – Speaker & Mic, Ethernet (1), DisplayPort (1), HDMI (1) ports
RAM D Ball Mount For Back Of Dock RAM D Size Standard Double Socket Arm – RAM Clamp Base With 4″ Max Width And 2.25″ D Ball Barrel Jack to Converter, Long Cord (10ft) 11-27V DC/DC Power Converter & Direct Wire Kit |
| OFFICE DOCK OPTIONS | Powered Office Dock – includes: USB (2), RS232 (2), VGA (1), Audio – Speaker & Mic, Ethernet (1), DisplayPort (1), HDMI (1) ports
AC/DC Adapter without Power Cord (required) – North America/European/Australian |
| WALL MOUNTING & DESK MOUNTING OPTIONS | Standard Wall Mount (C Sized RAM Ball)
Standard Wall Mount – Amps pattern Six Hole Standard Wall Mount Clamping Base Ideal for Square Posts Up to “4 RAM C Ball Mount For Back Of Dock RAM D Ball Mount For Back Of Dock Snap Mount – Extra Heavy Duty (includes C size RAM ball) Snap Mount – Extra Heavy Duty (includes D size RAM ball) Display Stand Office Desk Stand VESA-Mount Plate, Short Snap Rail to plate with 75 or 100mm square VESA pattern |
| SCANNER HANDLE & ACCESSORIES OPTIONS | Scanner Handle (includes two batteries, USB cord and wall adapter)
Scan Handle Battery Replacement (includes USB cord) Scan Handle Battery USB Wall Charger |
| REPLACEMENT PARTS & ACCESSORIES | Battery Charger (includes power cord), XL Battery, up to 10 hour battery life, Briefcase Handle, Hand strap, Auto Charging Adapter, Stylus, Stylus Tether, Stylus with Stylus Tether
Snap Mount Rail, Snap Mount Rail- Long, Screen Protector, Anti-Glare Screen Protector |
