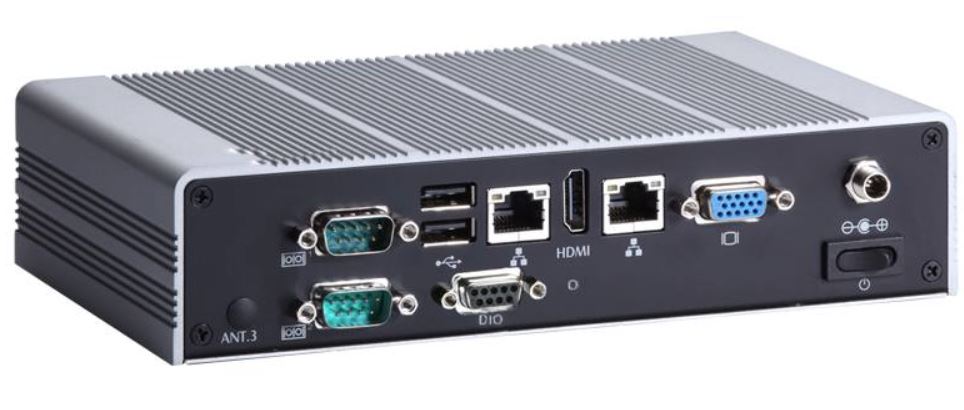

AES625-842 Fanless System
- Intel® Celeron® processor J1900 2.0 GHz
- 1 DDR3L-1066/1333 SO-DIMM for up to 8GB of memory
- Fanless operation design with full feature I/O
- 2 RS-232/422/485 and 4 USB 2.0 ports
- One 2.5” 9.5 mm SATA drive bay and mSATA supported
- 2 PCI Express Mini Card slots and 1 SIM slot
- VGA and HDMI with dual-view supported
- -20°C to +55°C wide operating temperature range
Specifications
| PROCESSOR | Intel® Celeron® processor J1900 2.0 GHz |
| CHIPSET | SoC integrated |
| SYSTEM MEMORY | 1 x 204-pin SO-DIMM DDR3L-1066/1333, up to 8GB |
| BIOS | AMI |
| COM | 2 x RS-232/422/485 |
| USB | 4 x USB 2.0 |
| ETHERNET/POE | 2 x 10/100/1000 Mbps (Intel® i211-AT) |
| DISPLAY | 1 x VGA, 1 x HDMI |
| DIGITAL I/O | 8-channel programmable digital I/O |
| AUDIO | Mic-in/Line-out |
| STORAGE | 1 x 2.5” SATA HDD drive bay (max. up 9.5 mm height), 1 x mSATA |
| EXPANSION | 1 x Full-size PCI Express Mini Card (USB + PCI Express signal), 1 x Half-size PCI Express Mini Card (USB + PCI Express signal), 1 x SIM slot |
| OTHERS | 3 x SMA-type antenna connector, TPM 1.2 |
| POWER SUPPLY | Input: AC 90-264V, AC 36W adapter with lock
Output: DC 12V @ 3A |
| WATCHDOG TIMER | 255 levels, 1 to 255 sec. |
| CONSTRUCTION | Aluminium extrusion and heavy-duty steel, IP40 |
| OPERATING TEMPERATURE | -20°C to +55°C (with J1900, W.T. SSD/CAPA842) |
| RELATIVE HUMIDITY | 10% to 90%, non-condensing |
| VIBRATION | 3 Grms with SSD (5 to 500 Hz, X, Y, Z directions) |
| SHOCK | N/A |
| DIMENSIONS (W X D X H) | 200 x 120 x 46 mm (7.87” x 4.72” x 1.81″) |
| WEIGHT (NET/GROSS) | 1.1kg (2.43lb)/ 1.8kg (3.97lb) |
| CERTIFICATIONS | CE |
| OS SUPPORT | WES 8, WES 7 |
| MOUNTING | Wall mount, DIN-rail, VESA mount |
| PART NUMBERS | AES626-842: Fanless embedded system with Intel® Celeron® J1900 2.0 GHz |
| OPTIONS | Wall mount kit, VESA arm kit, DIN-rail kit, Wi-Fi module, Power cord |
