NES-50-J1900 Fanless System
- On board Intel® Celeron® processor J1900 quad core, 2.42GHz
- 1 x HDMI Display
- 2 x Intel® I210AT GbE LAN ports; Support WoL, Teaming and PXE
- 4 x USB 2.0
- 3 x mini-PCIe sockets for optional Wi-Fi/3.5G/LTE modules
- 2 x RS232, 1 x RS422/485 with auto flow control
- Supports -5°C~55 °C extended operating temperature
- Support 12V DC input
Specifications
| PROCESSOR | On board Intel® Celeron® processor J1900 quad Core, 2.42GHz | ||||||||||||||||||||||||||||||||
| SYSTEM MEMORY | DDR3L SODIMM Slot *1
– Supports 1066/1333 RAM – Un buffered and non ECC – Supports up to 4GB |
||||||||||||||||||||||||||||||||
| DISPLAY | 1 x HDMI display | ||||||||||||||||||||||||||||||||
| I/O INTERFACE-FRONT | ATX power on/off switch
1 x Storage/2 x GPO programmable LED 1 x SIM card holder 2 x Intel® I210AT GbE LAN ports; support WoL, teaming and PXE 1 x HDMI display output 4 x USB 2.0 (500mA per each) 2 x Antenna holes for optional Wi-Fi/3.5G antenna |
||||||||||||||||||||||||||||||||
| I/O INTERFACE – REAR | 3 x DB9 for COM1 & COM2 & COM3
– COM1: full RS232 signal – COM2: full RS232 signal – COM3: RS422/485 auto flow control Support 12V DC input |
||||||||||||||||||||||||||||||||
| I/O INTERFACE – INTERNAL | 4 x GPI and 4 x GPO (programmable to GPI or GPO)
1 x RS232, pin header, support RS232 Tx/Rx/GND signal only |
||||||||||||||||||||||||||||||||
| STORAGE DEVICE | mSATA module | ||||||||||||||||||||||||||||||||
| EXPANSION SLOT | 3 x mini-PCIe socket for optional Wi-Fi/3.5G modules
|
||||||||||||||||||||||||||||||||
| POWER REQUIREMENTS | Power input: 12V DC +/-20%
1 x Optional 12V, 60W power adapter |
||||||||||||||||||||||||||||||||
| SUPPORTED OS | Win7 64-bit
Win10 64-bit |
||||||||||||||||||||||||||||||||

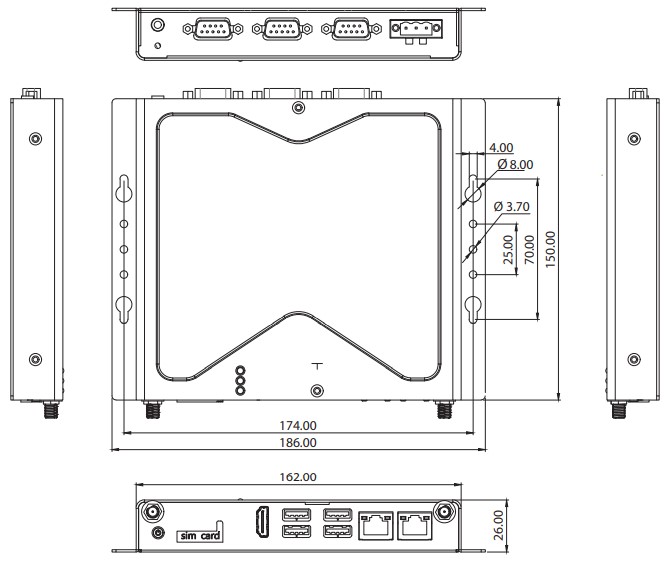

| DIMENSIONS | 162mm(W) x 26mm(H) x 150mm(D) without wall-mount bracket | ||||||||||||||||||||||||||||||||
| MECHANICAL CONSTRUCTION | Aluminium and Metal Chassis with fanless design | ||||||||||||||||||||||||||||||||
| ENVIRONMENT | Operating Temperature:
Ambient with air flow: -5°C to 55°C (According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14) Storage Temperature: -20°C to 75°C Relative Humidity: 10% to 95% (non-Condensing) Shock Protection: – mSATA / EMMC: 50G, half sine, 11ms, IEC60068-2-27 Vibration protection w/mSATA or EMMC condition: – Random: 2Grms @ 5~500 Hz, IEC60068-2-64 – Sinusoidal: 2Grms @ 5~500 Hz, IEC60068-2-6 |
||||||||||||||||||||||||||||||||
| CERTIFICATIONS | CE
FCC Class A |
||||||||||||||||||||||||||||||||
| OPTIONS | 60W 12V/5A AC/DC power adapter w/o power cord |
