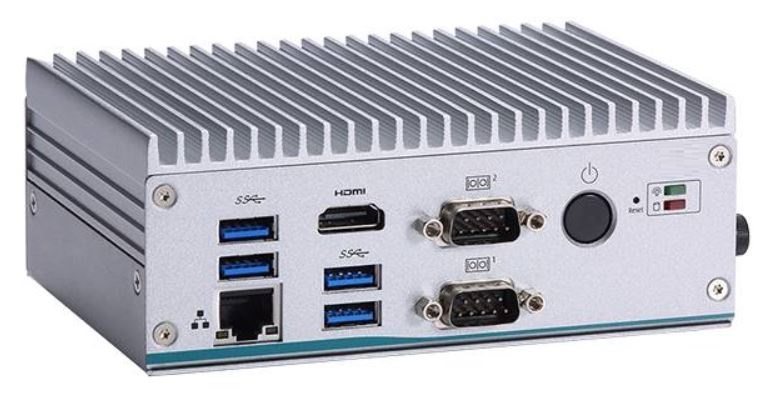

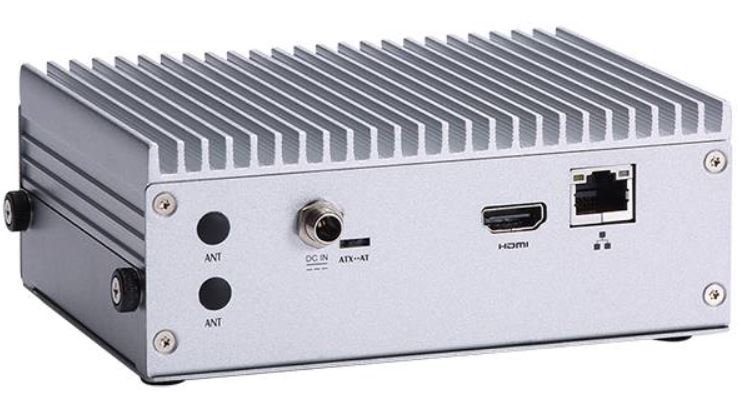

AES560-512-3965U / 7100U / 7300U Fanless System
- Intel® Core™ i5-7300U 2.6 GHz, i3-7100U 2.4 GHz & Celeron® 3965U 2.2 GHz
- Supports 2 COM, 2 GbE LAN and 4 USB 3.0
- One swappable 2.5″ HDD drive bay
- 2 HDMI with dual-view supported
- Ultra-compact enclosure design
- Trusted Platform Module 1.2 (TPM 1.2)
Specifications
| PROCESSOR | Intel® Core™ i5-7300U 2.6 GHz, i3-7100U 2.4 GHz & Celeron® 3965U 2.2 GHz |
| CHIPSET | SoC integrated |
| SYSTEM MEMORY | 1 x 260-pin SO-DIMM DDR4-2133, up to 16GB |
| BIOS | AMI |
| COM | 2 x RS-232/422/485 |
| USB | 4 x USB 3.0 |
| ETHERNET/POE | 2 x 10/100/1000 Mbps Ethernet (Intel® i210-AT, i219-LM) |
| DISPLAY | 2 x HDMI |
| DIGITAL I/O | N/A |
| AUDIO | N/A |
| STORAGE | 1 x 2.5” SATA HDD drive bay (max. up 9.5 mm height), 1 x mSATA (enabled in BIOS setting) |
| EXPANSION | 1 x Full-size PCI Express Mini Card slot (USB + PCIe signal) |
| OTHERS | 2 x SMA type connector opening for antenna, 1 x AT/ATX quick switch, 1 x ATX power switch, 1 x Reset button |
| POWER SUPPLY | 12 VDC |
| WATCHDOG TIMER | 255 levels, 1 to 255 sec. |
| CONSTRUCTION | Aluminium extrusion and heavy-duty steel, IP40 |
| OPERATING TEMPERATURE | -10°C to +50°C (+14°F to +122°F) (with W.T. DRAM/SSD) |
| RELATIVE HUMIDITY | 10% to 90%, non-condensing |
| VIBRATION | 3 Grms with SSD (5 to 500Hz, X, Y, Z directions) |

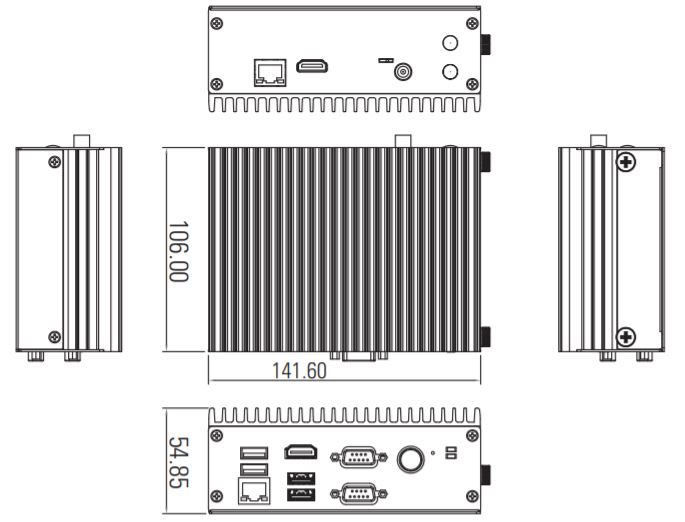

| DIMENSIONS (W X D X H) | 141.6 x 106 x 54.85 mm (5.57″ x 4.17″ x 2.15″) |
| WEIGHT (NET/GROSS) | 0.8 kg (1.76 lb)/1.67 kg (3.68 lb) |
| CERTIFICATIONS | CE, FCC Class A |
| OS SUPPORT | Win 10 IoT, Linux |
| MOUNTING | Wall mount, DIN-rail, VESA mount |
| PART NUMBERS | AES560-512-3965U: Fanless embedded system with Intel® Celeron® 3965U
AES560-512-7100U: Fanless embedded system with Intel® Core™ i3-7100U AES560-512-7300U: Fanless embedded system with Intel® Core™ i5-7300U |
| OPTIONS | Wall mount kit, VESA arm kit, DIN-rail kit, Wi-Fi module, 12V 60W power adapter |
