TBL10W Rugged Tablet
TBL10W Rugged Tablet
TBL10W Rugged Tablet
TBL10W Rugged Tablet

TBL10W Rugged Tablet

  • Windows 10/11 Pro operating system
  • 10.1” 1280 x 800 IPS display
  • Entry level Rugged design
  • 4 ~ 6 hour battery
  • 4Gb of memory & 128Gb storage
  • Intel® Celeron N4100 Quad Core CPU
  • MIL-STD 810G shock & drop tested
View specifications
Download data sheet

Specifications



DIMENSIONS With case (excludes corner bumpers): 10.5” W x 7.2” H x .7” D 267 mm W x 182mm H x 18.mm D
DISPLAY 10.1″ capacitive, 1280 (W) x 800 (H) IPS, 250 nits
TOUCH PANEL 10-point Multi Touch Capacitive
SCREEN PROTECTION Oleophobic, scratch-resistant glass
WEIGHT 2.07 lb. (1.05kg) with case
EXTERIOR Rugged rubber and plastic case
DROP / SHOCK PROTECTION MIL-STD 810G (drop test) 4 feet, 225g ball drop to screen w/screen protector from 115cm
OPERATING TEMPERATURE 0° F to 113° F (-10° C to 45° C)
STORAGE TEMPERATURE -4° F to +140° F (-20° C to +60° C)
HUMIDITY 5 ~ 95% non-condensing
PROCESSOR Intel® Celeron® N4100 Quad Core; 4M Cache, up to 2.4GHz
SYSTEM MEMORY 4GB LPDDR4 RAM
STORAGE 128GB eMMC
OPERATING SYSTEM Windows 11 Professional
BUTTONS Power; Volume +/-

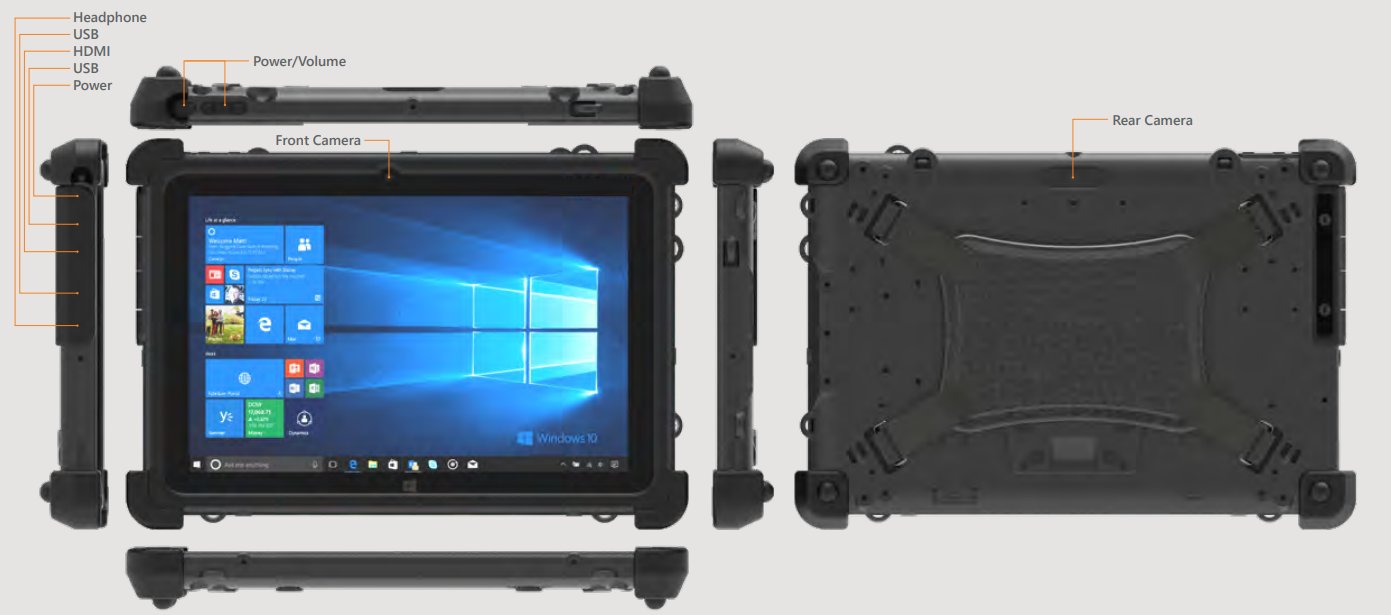

IO PORTS Type A 3.0 USB & USB-C

Mini HDMI

3.5mm Audio Jack

DC Barrel Jack

MicroSD Slot (covered by case)

Keyboard Pogo pin on bottom
BATTERY Lithium-ion Polymer

22.2Wh, 3000mAh, 7.4V
up to 4-6 hours of battery life
AUDIO Realtek Audio, Speakers (x2)
CAMERA 5MP (rear-facing) auto focus
2MP (front-facing) auto focus
SENSORS Accelerometer
APPROVALS FCC, CE and IC
WLAN Intel® Dual Band Wireless-AC 8265 Wi-Fi (802.11ac 2.4GHz, 5GHz)
BLUETOOTH BT4.2
SECURITY TPM 2.0 Firmware
APPROVALS FCC, CE and IC
PART NUMBERS TBL10W-11: Tablet specifications as per above with Windows 11 Pro
KEYBOARD Optional attachable keyboard for TBL10W-K configuration
MSR Optional Magnetic Strip Reader
CABLING Optional USB retainer kit, cable for retainer kit, direct wire kit
VEHICLE MOUNT KIT Optional VEHICLE MOUNT KIT
STANDARD WALL MOUNT KIT Optional STANDARD WALL MOUNT KIT
SNAP MOUNT Optional Medium, Heavy Duty and Extra Heavy Duty SNAP MOUNT kits
DESK STAND Optional DESK STAND
SNAP MOUNT RAIL Optional SNAP MOUNT RAIL kit
STYLUS Optional stylus and stylus tether
OTHER OPTIONS Other options include: Hand strap, Screen Protector, Anti-Glare screen protector, Auto Adapter
WARRANTY One year return to base warranty as standard

Option to enhance warranty to cover accidental damage and extend to 2 years
