NES-50 Fanless System
- On board Intel® Atom™ processor E3826 dual core, 1.46GHz
- 1 x HDMI Display
- 2 x Intel® I210AT GbE LAN ports; Support WoL, Teaming and PXE
- 4 x USB 2.0
- 3 x mini-PCIe sockets for optional Wi-Fi/3.5G/LTE modules
- 1 x RS232, 1 x RS232 (only Tx/Rx/GND), 1 x RS422/485 with auto flow control
- Supports -5°C~55 °C extended operating temperature
- Support 24V DC input
Specifications
| PROCESSOR | On board Intel® Atom™ processor E3826 dual core, 1.46GHz |
| SYSTEM MEMORY | On-board 2GB DDR3L 1066/1333 RAM
– Un-buffered and non-ECC – Max up to 4GB |
| DISPLAY | 1 x HDMI display |

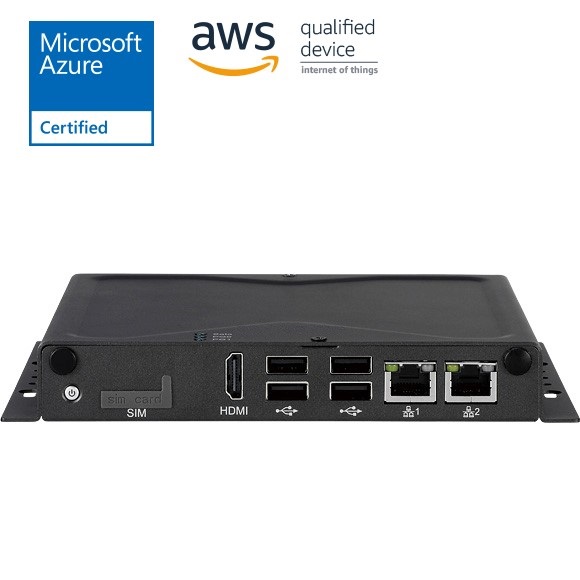

| I/O INTERFACE-FRONT | ATX power on/off switch
1 x Storage/2 x GPO Programmable LED 1 x SIM Card holder 2 x Intel® I210AT GbE LAN ports; Support WoL, Teaming and PXE 1 x HDMI Display Output 4 x USB 2.0 (500mA per each) 2 x Antenna Holes for optional Wi-Fi/3.5G antenna |

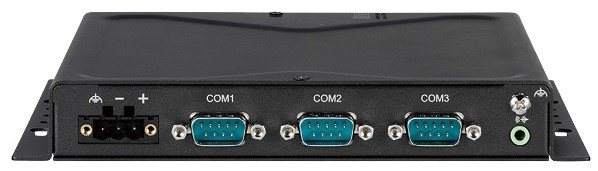

| I/O INTERFACE – REAR | 3 x DB9 for COM1 & COM2 & COM3
– COM1: full RS232 signal – COM2: RS232, only support Tx/Rx/GND – COM3: RS422/485 auto flow control 1 x Line-out Support 24V DC input |
| I/O INTERFACE – INTERNAL | 4 x GPI and 4 x GPO (Programmable to GPI or GPO)
1 x DB9, only support RS232, Tx/Rx/GND single |
| STORAGE DEVICE | On-board 16GB EMMC
Optional mSATA module |
| EXPANSION SLOT | 3 x Mini-PCIe socket for optional Wi-Fi/3.5G modules
– Mini-PCIe: CN5; Size: Full; USB: V; mSATA: Support; 3.5G/4G: Support – Mini-PCIe: CN6; Size: Full; USB: V; mSATA: N/A; 3.5G/4G: Support – Mini-PCIe: CN7; Size: Half; USB: V; mSATA: N/A; 3.5G/4G: N/A |
| POWER REQUIREMENTS | Power input: 24V DC +/-20%
1 x optional 24V, 60W power adapter |
| SUPPORTED OS | Dependant on memory and storage installed NES-50 supports:
Ubuntu 32-bit/64-bit WES8 32-bit/64-bit Win7 Pro 32-bit/64-bit Win10 IoT Ent. 64-bit |

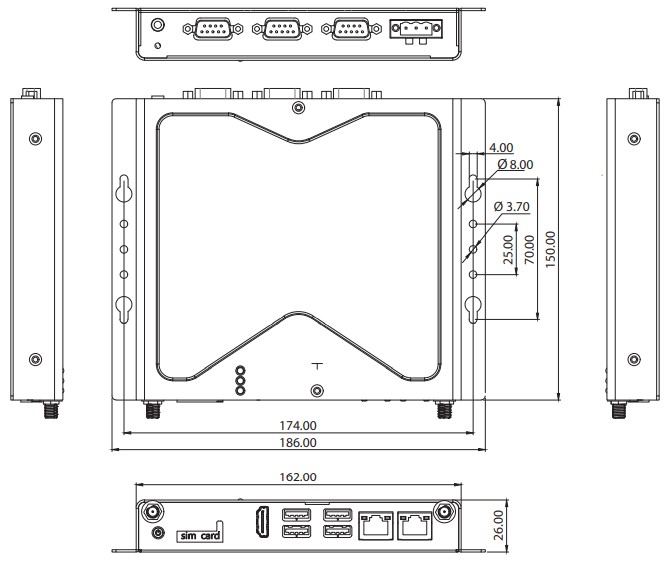

| DIMENSIONS | 162mm(W) x 26mm(H) x 150mm(D) without wall-mount bracket |
| MECHANICAL CONSTRUCTION | Aluminium and Metal Chassis with fanless design |
| ENVIRONMENT | Operating Temperature:
Ambient with air flow: -5°C to 55°C (According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14) Storage Temperature: -20°C to 75°C Relative Humidity: 10% to 95% (non-Condensing) Shock Protection: – mSATA / EMMC: 50G, half sine, 11ms, IEC60068-2-27 Vibration protection w/mSATA or EMMC condition: – Random: 2Grms @ 5~500 Hz, IEC60068-2-64 – Sinusoidal: 2Grms @ 5~500 Hz, IEC60068-2-6 |
| CERTIFICATIONS | CE
FCC Class A UL/cUL |
| OPTIONS | 24V, 60W AC/DC power adapter w/o power cord |
