NES-105U Fanless System
NES-105U Fanless System
NES-105U Fanless System
NES-105U Fanless System

NES-105U Fanless System

  • On board Intel® Celeron® processor J1900 quad core, 2.42GHz
  • Dual Independent Display from DVI-I and HDMI
  • 2 x Intel® I210AT GbE LAN ports; support WoL, teaming and PXE
  • 2 x USB2.0 & 1 x USB3.0
  • 4 x COM ports (COM1 & COM2 with RS232/422/485, jumper-free setting)
  • 1 x interface for optional Wi-Fi/3.5G modules
  • Supports -5 ~ 55 degree C extended operating temperature
  • Supports 9-30VDC input
View specifications
Download data sheet

Specifications

PROCESSOR On board Intel® Celeron® processor J1900 quad core, 2.42GHz
SYSTEM MEMORY 1 x DDR3L SO-DIMM socket, support DDR3L 1066/1333 8GB RAM max., un-buffered and non-ECC
DISPLAY Dual independent display

– HDMI and DVI-I

– HDMI and VGA (via DVI-I to VGA converter)

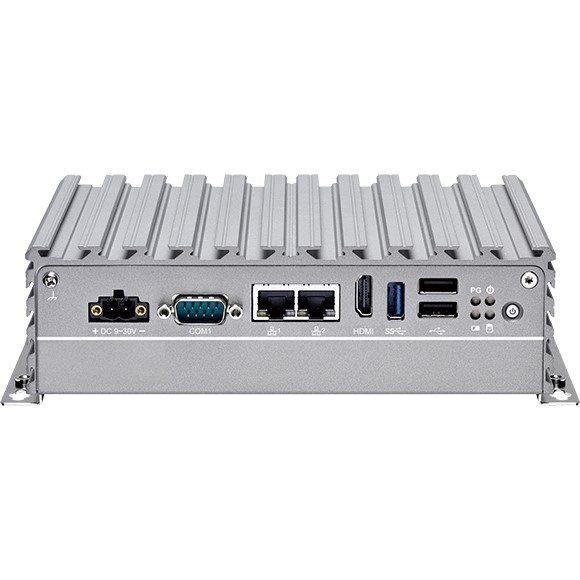

I/O INTERFACE-FRONT ATX power on/off switch

1 x Power status/1 x HDD access/1 x battery low/1 x programing LEDs

2 x Intel® I210AT GbE LAN ports; support WoL, teaming and PXE

1 x HDMI

1 x USB 3.0 (900mA per each)

2 x USB 2.0 (500mA per each)

1 x DB9 for COM1 support RS232/422/485 with auto flow control

– Jumper-free setting on RS232/422/485

1 x 2-pin DC input, support +9 to 30VDC input

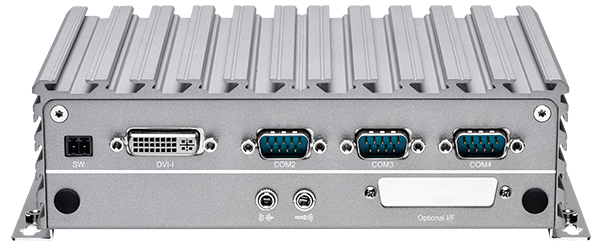

I/O INTERFACE – REAR 1 x Remote power on/off switch

DVI-I display output

1x DB9 for COM2, support RS232/422/485 with auto flow control

– Jumper-free setting on RS232/422/485

2 x DB9 for COM3 & COM4 support RS232 only

1 x Mic-in & 1 x Line-out

2 x Antenna holes for optional Wi-Fi/3.5G antenna

1 x Optional I/F for optional mini-PCIe Wi-Fi/3.5G
I/O INTERFACE – INTERNAL 4 x GPI and 4 GPO (5V, TTL Type)
STORAGE DEVICE 1 x M.2, support B & B+M key module (2242)

1 x 2.5″ HDD (SATA 2.0)
EXPANSION SLOT 1 x Mini-PCIe socket for optional Wi-Fi/ 3.5G modules
POWER REQUIREMENTS Power input: +9VDC to +30VDC

1 x Optional 24V, 60W power adapter
SUPPORTED OS Windows 7, 32-bit/64-bit

Windows Embedded Standard 7, 32-bit/64-bit

Windows Embedded Compact 7, 32-bit

Windows 10 IoT Enterprise, 64-bit

Linux Kernel version 3.8.0

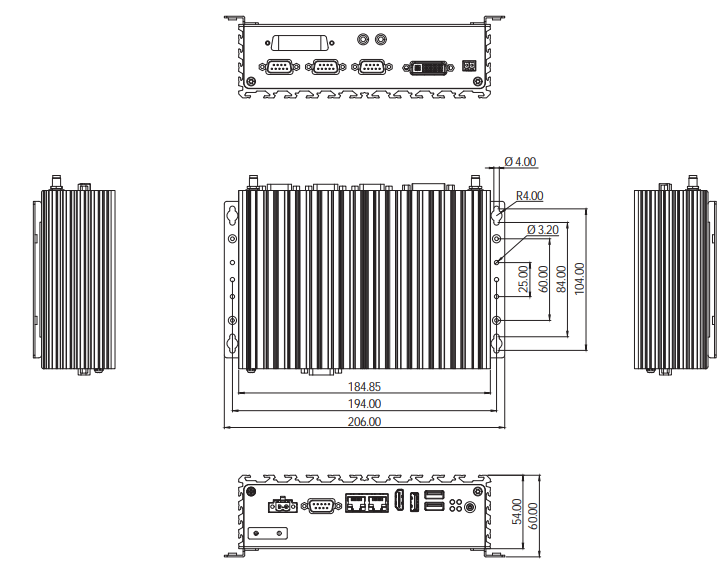

DIMENSIONS 185mm (W) x 131mm (D) x 54mm (H) without wall-mount bracket
MECHANICAL CONSTRUCTION Aluminium and Metal Chassis with fanless design
ENVIRONMENT Operating temperature

Ambient with air flow: -5°C to 55°C

(according to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14)

Storage temperature: -30°C to 85°C

Relative humidity: 10% to 95% (non-condensing)

Shock protection

– HDD: 20G, half sine, 11ms, IEC60068-2-27

– M.2: 50G, half sine, 11ms, IEC60068-2-27

Vibration protection w/HDD condition

– Random: 0.5Grms @ 5~500Hz, IEC60068-2-64

– Sinusoidal: 0.5Grms @ 5~500Hz, IEC60068-2-6

Vibration protection w/M.2 & SSD condition

– Random: 2Grms @ 5~500Hz, IEC60068-2-64

– Sinusoidal: 2Grms @ 5~500Hz, IEC60068-2-6
CERTIFICATIONS CE

FCC Class A

UL/ cUL
OPTIONS 24V, 60W AC/DC power adapter w/o power cord
