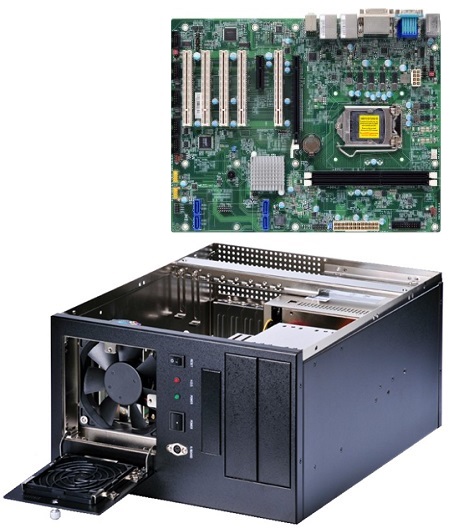

ICOM742 – 7 Slot ATX Systems

Wallmount/Desktop Industrial system
16″ x 8″ x 13″ (D x H x W)
2 PCIe & 5 PCI expansion slots
Supports Intel® 6th/7th Gen processors
Intel® Core™, Pentium® & Celeron CPUs
Intel® H110 Chipset
2 DDR3L DIMMs up to 16GB
2 Display Outputs: VGA, DVI-I, HDMI
I/O: 2 LAN, 6 COM, 4 USB 3.0, 6 USB 2.0
Windows 7, 10 Pro / IoT & Linux
CPU Life Cycle Support Until Q3 2030

Specifications

PROCESSOR	6th/7th Generation Intel® Core™ /Pentium®/Celeron® LGA 1151 Socket Processors with TDP up to 65W
CHIPSET	Intel® H110 Chipset
MEMORY	Two 240-pin DIMM up to 16GB Dual Channel DDR3L 1600MHz
BIOS	SPI 128Mbit
STORAGE	Supports 2x external 5.25”, 1x external 3.5” & 1x internal 3.5” drive bays Supports 4 x SATA3.0 Optional removable hard disk drives or solid state disks
OPTICAL	DVD±RW (±R DL) / DVD-RAM drive
WATCHDOG TIMER	Programmable via S/W from 1 sec. to 255 sec.
EXPANSION SLOTS	1 x PCIe x16 (Gen 3) 1 x PCIe x4 (Gen 2) 5 x PCI
POWER SUPPLY OPTIONS	400W ~ 600W 90~250VAC DC 12~48V Redundant Power Supplies
AUDIO	Realtek ALC888S-VD2-GR
ETHERNET	1 x Intel® I211AT PCIe (10/100/1000Mbps) 1 x Intel® I219V PCIe (10/100/1000Mbps)
OPERATING SYSTEMS SUPPORTED	Windows 7 32/64-bit Window 8.1 64-bit Windows 10 64-bit Linux Note: 7th Gen CPU SKU ONLY support Windows 10 64-bit & Ubuntu 16.04.
DISPLAY	1 x VGA 1 x DVI-I (DVI-D signal)1 x HDMI VGA: resolution up to 1920×1200 @ 60HzDVI-I: resolution up to 1920×1200 @ 60Hz HDMI: resolution up to 4096×2160 @ 24Hz
MULTI-DISPLAY OUTPUTS	Supports Dual Displays: VGA + DVI-I (DVI-D signal) DVI-I (DVI-D signal) + HDMI VGA + HDMI
REAR I/O PORTS	2 x GbE (RJ-45) 1 x RS-232/422/485 (RS-232 w/power (DB-9) 4 x USB 3.0 2 x USB 2.0 1 x PS/2 (mini-DIN-6) 1 x VGA 1 x DVI-I (DVI-D signal) 1 x HDMI 1 x Line-out, 1 x Mic-in, 1 x Line-in (opt., MOQ required)
OPTIONAL PORT EXPANSION FROM MOTHERBOARD	1 x RS-232/422/485 (RS-232 w/ power) (2.54mm pitch) 4 x RS-232 (2.54mm pitch) 4 x USB 2.0 (2.54mm pitch) or 2 x USB 2.0 (2.54mm pitch) + 1 x Vertical USB 2.0 (type A) (opt., MOQ required)
FRONT CHASSSIS CONNECTORS	PS/2 keyboard connector in front panel Optional USB ports
DRIVE BAYS	2x external 5.25” 1x external 3.5” 1x internal 3.5” drive bays
MOTHERBOARD MTBF	398,776 hrs @ 25°C; 231,301 hrs @ 45°C; 147,462 hrs @ 60°C Calculation Model: Telcordia Issue 2, Method Case 3 Environment: GB, GC – Ground Benign, Controlled
ENVIRONMENT	Operation Temperature: 0 °C to +50 °C continuous operation Storage Temperature: -20 °C to +70 °C Humidity: 10 % to 93 % @40 °C, non-condensing (Dependent on overall system specification)
COOLING	12cm ball-bearing fan with replaceable filter
COLOUR	Black (all other optional colours are available upon request)
DIMENSIONS:	330 x 406 x 204.2 mm (13 x 16 x 8 inches)
