NES-505 Fanless System
- On board Intel® Celeron® processor J1900 quad core, 2.42GHz
- 1 x HDMI Display
- 3 x Intel® I210-IT GbE LAN ports; support WoL, teaming and PXE
- 2 x USB 2.0
- 1 x mini-PCIe socket for optional Wi-Fi/BT modules
- 1 x mini-PCIe socket for optional mSATA storage
- 1 x RJ45 COM serial port for RS232 signal
- Supports -5°C~55 °C extended operating temperature
- Supports 12V DC input
Specifications
| PROCESSOR | On board Intel® Celeron® processor J1900 quad Core, 2.42GHz |
| SYSTEM MEMORY | DDR3L SODIMM Slot *1
– Supports 1600 RAM – Un buffered and non ECC – Supports up to 4GB |
| DISPLAY | 1 x HDMI display |
| I/O INTERFACE-FRONT | ATX power on/off switch
1 x Storage/2 x GPO programmable LED 3 x Intel® I210-IT GbE LAN ports; support WoL, teaming and PXE 1 x HDMI display output 2 x USB 2.0 (500mA per each) 2 x Antenna holes for optional Wi-Fi antenna 1 x RJ45 COM serial port for RS232 signal |

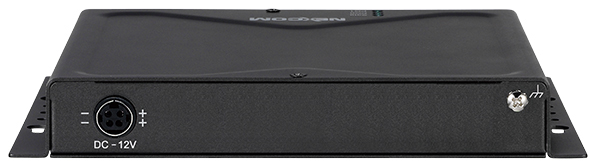

| I/O INTERFACE – REAR | Support 12V DC input |
| I/O INTERFACE – INTERNAL | 4 x GPI and 4 x GPO (programmable to GPI or GPO) |
| STORAGE DEVICE | Optional mSATA module
On board 32GB EMMC |
| EXPANSION SLOT | 1 x mini-PCIe socket for optional Wi-Fi/BT module |
| POWER REQUIREMENTS | Power input: 12V DC +/-20%
1 x Optional 12V, 60W power adapter |
| SUPPORTED OS | Win7 64-bit
Win10 64-bit |

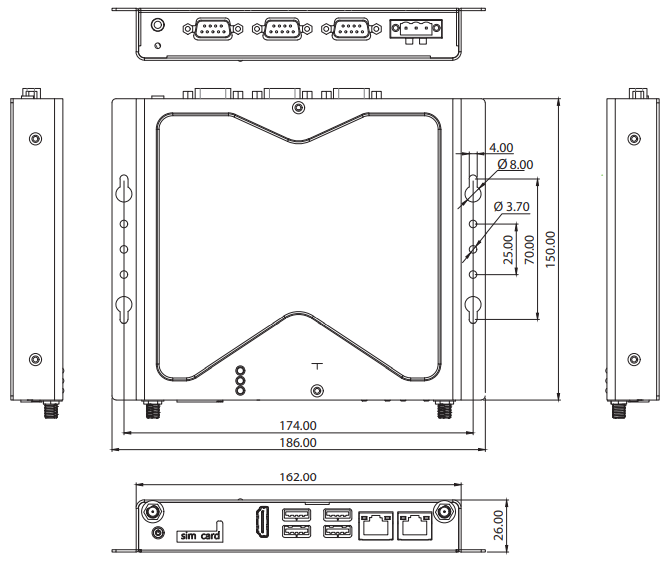

| DIMENSIONS | 162mm(W) x 26mm(H) x 150mm(D) without wall-mount bracket |
| MECHANICAL CONSTRUCTION | Aluminium and Metal Chassis with fanless design |
| ENVIRONMENT | Operating temperature:
Ambient with air flow: -5°C to 55°C (according to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14) Storage temperature: -20°C to 75°C Relative humidity: 10% to 95% (non-condensing) Shock protection: – mSATA/EMMC: 50G, half sine, 11ms, IEC60068-2-27 Vibration protection w/ mSATA or EMMC condition: – Random: 2Grms @ 5~500 Hz, IEC60068-2-64 – Sinusoidal: 2Grms @ 5~500 Hz, IEC60068-2-6 |
| CERTIFICATIONS | CE
FCC Class A |
| OPTIONS | 60W 12V/5A AC/DC power adapter w/o power cord |
