AES671-517 Fanless System
- End of Life – Last Time Buy 30/04/2024
- Last Time Ship 31/07/2024
- 7th/6th gen Intel® Core™ i7/i5/i3 & Celeron® processors (35W/65W) and Intel® Q170
- 8-CH PoE/GbE on board
- 2 front-access SIM slots
- Supports 6-in/2-out isolated DIO
- -40°C to +70°C extended operating temperature
- Optional ignition feature supported
Specifications
| PROCESSOR | LGA1151 socket 7th/6th gen Intel® Core™ i7/i5/i3 & Celeron® processors (35W/65W) |
| CHIPSET | Intel® Q170 |
| SYSTEM MEMORY | 2 x 260-pin SO-DIMM DDR4-2133, up to 32GB |
| BIOS | AMI |
| COM | 2 x RS-232/422/485 |
| USB | 4 x USB 3.0, 2 x USB 2.0 |
| ETHERNET/POE | 8 x Gigabit PoE (IEEE 802.3af/802.3at) port (Intel® i211-AT, max. up to 90W) |
| DISPLAY | 1 x HDMI 1.4b, 1 x VGA, 1 x DVI-D |
| DIGITAL I/O | 1 x 6-in/2-out isolated DIO |
| AUDIO | 1 x Audio (Line-out & Mic-in) |
| STORAGE | 2 x SATA HDD drive bay (max. up 15 mm height & RAID 0 & 1), 1 x mSATA (enabled in BIOS setting) |
| EXPANSION | 2 x Full-size PCI Express Mini Card slot (USB + PCI Express signal), 1 x Half-size PCI Express Mini Card slot (mSATA + USB + PCI Express signal), 1 x Half-size PCI Express Mini Card (USB signal), 2 x External accessible SIM slot |
| OTHERS | 1 x Flexible I/O window (default: 2 x DB9 half cut bracket), 4 x SMA-type antenna connector, 1 x Phoenix type VDC power input connector |
| POWER SUPPLY | 24 VDC (ACC is disabled by default) |
| WATCHDOG TIMER | 255 levels, 1 to 255 sec. |
| CONSTRUCTION | Aluminium extrusion and heavy-duty steel, IP40 |
| OPERATING TEMPERATURE | 35W Tj=100°C CPU: -40°C to +70°C (-40°F to +158°F) with W.T. SSD, 65W Tj=100°C CPU: -40°C to +55°C (-40°F to +131°F) with W.T. SSD, 35W Tj=80°C CPU: -40°C to +50°C (-40°F to +122°F) with W.T. SSD |
| RELATIVE HUMIDITY | 10% to 90%, non-condensing |
| SHOCK | IEC 60068-2-27 (with SSD: 50G, half sine, 11 ms duration) |
| VIBRATION | IEC 60068-2-64 (with SSD: 3Grms STD, random, 5 – 500 Hz, 1 hr/axis) |

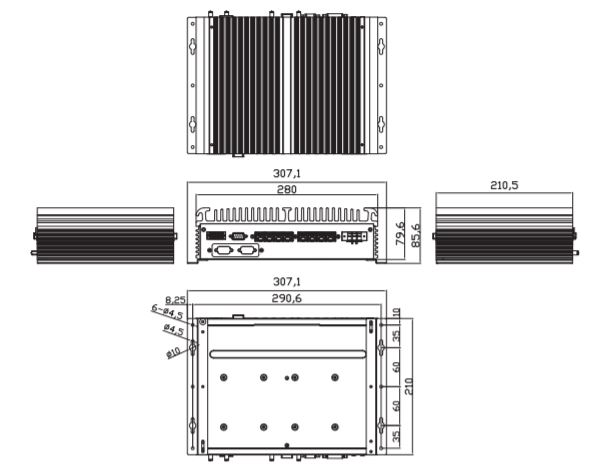

| DIMENSIONS (W X D X H) | 280 x 210 x 79.6 mm (11.2″ x 8.26″ x 3.13″) |
| WEIGHT (NET/GROSS) | 4.31 kg (9.5 lb)/5.1 kg (11.24 lb) |
| CERTIFICATIONS | CE, FCC Class A |
| OS SUPPORT | Win 10 IoT, Linux |
| MOUNTING | Wall mount, DIN-rail |
| PART NUMBERS | AES671-517: Fanless embedded system with LGA1151 socket 7th/6th gen Intel® Core™ i7/i5/i3 & Celeron® processors |
| OPTIONS | Wi-Fi module, 3G/LTE module, Wall mount kit, DIN-rail kit, 24V 120W power adapter, CANbus PCI Express Mini module, LAN PCI Express Mini module, COM PCI Express Mini module, DIO PCI Express Mini module |
