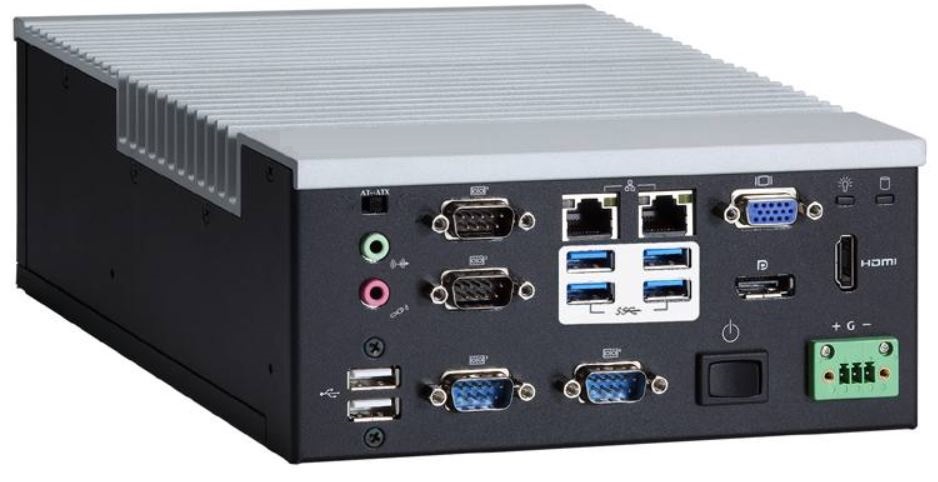

AES640-500 Fanless System
- LGA1151 socket 7th/6th gen Intel® Core™ i7/i5/i3 & Celeron® processor (Kaby Lake/Skylake)
- Supports 4 COM, 6 USB and 2 GbE LAN
- Two 2.5″ SATA drive bay
- PCI Express Mini Card slot and SIM slot
- Front I/O connectivity design
- 10 to 30 VDC wide range power input
Specifications
| PROCESSOR | 7th/6th Gen Intel® Core™ i7/i5/i3 & Celeron® processor (CPU TDP max. up to 35W) |
| CHIPSET | Intel® H110 |
| SYSTEM MEMORY | 2 x 288-pin DDR4-2133 DIMM, up to 32GB |
| BIOS | AMI |
| COM | 1 x RS-232/422/485, 3 x RS-232 |
| USB | 2 x USB 2.0, 4 x USB 3.0 |
| ETHERNET/POE | 2 x 10/100/1000 Mbps (Intel® i219-LM & i211-AT) |
| DISPLAY | 1 x DisplayPort, 1 x HDMI, 1 x VGA |
| DIGITAL I/O | N/A |
| AUDIO | Mic-in/Line-out |
| STORAGE | 2 x 2.5” SATA HDD drive bay (max. up 15 mm height), 1 x mSATA (enabled in BIOS setting) |
| EXPANSION | 1x Full-size PCI Express Mini Card slot with mSATA supported (PCI Express + USB signal), 1 x SIM slot |
| OTHERS | 1 x Phoenix type VDC power input connector, 1 x AT/ATX quick switch, 2 x SMA-type antenna connector, 1 x ATX power switch |
| POWER SUPPLY | 10 to 30 VDC |
| WATCHDOG TIMER | 255 levels, 1 to 255 sec. |
| CONSTRUCTION | Aluminium extrusion and heavy-duty steel, IP40 |
| OPERATING TEMPERATURE | -10°C to +55°C (+14°F to +131°F) (with W.T. DRAM/SSD for Skylake)
-10°C to +50°C (+14°F to +122°F) (with W.T. DRAM/SSD for Kaby Lake) |
| RELATIVE HUMIDITY | 10% to 90%, non-condensing |
| VIBRATION | 2 Grms with SSD (5 to 500 Hz, X, Y, Z directions) |
| SHOCK | N/A |
| DIMENSIONS (W X D X H) | 182 x 235.7 x 82 mm (7.16″ x 9.27″ x 3.23″) |
| WEIGHT (NET/GROSS) | 3 kg (6.61 lb)/3.6 kg(7.94 lb) |
| CERTIFICATIONS | CE |
| OS SUPPORT | Win10 IoT, WES 8, Linux |
| MOUNTING | Wall mount, DIN-rail |
| PART NUMBERS | AES640-500: Fanless embedded system with LGA1151 7th/6th gen Intel® Core™ i7/i5/i3 & Celeron® processor |
| OPTIONS | Wall mount kit, DIN-rail kit, Wi-Fi module, 3G/LTE module, 24V 120W power adapter |
