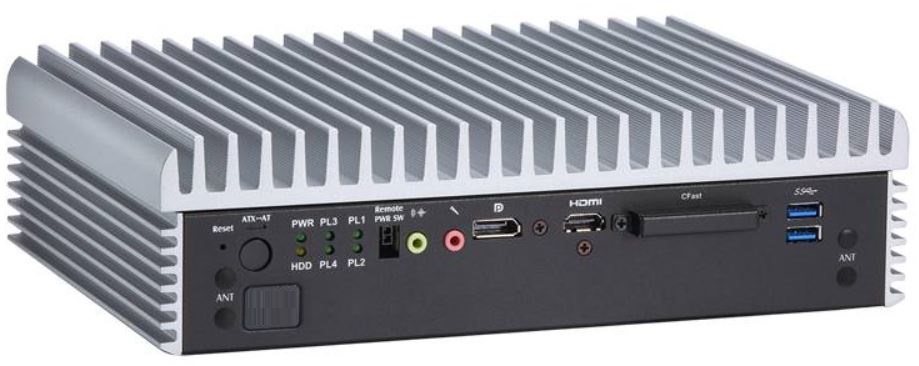

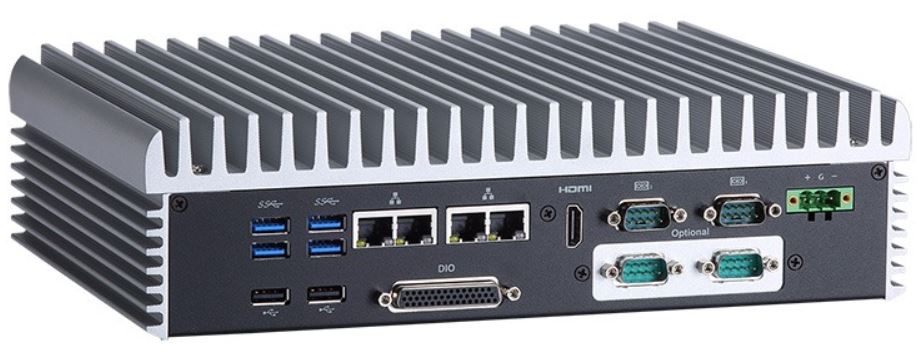

AES670-891 Fanless System
- LGA1151 socket 7th/6th gen Intel® Core™ i7/i5/i3 & Celeron® processors (Kaby Lake/Skylake)
- 1 DisplayPort and 2 HDMI (1 HDMI 2.0) with triple view supported
- Supports Jumbo Frame (9.5k), WoL, PXE Remote Boot, Teaming
- 9 to 36 VDC wide range power input
- Flexible I/O window design
Specifications
| PROCESSOR | LGA1151 socket 7th/6th gen Intel® Core™ i7/i5/i3 & Celeron® processor (CPU TDP max. up to 35 W) |
| CHIPSET | Intel® Q170 |
| SYSTEM MEMORY | 6th gen: 2 x 260-pin SO-DIMM DDR4-1866/2133, up to 32GB, 7th gen: 2 x 260-pin SO-DIMM DDR4-2133/2400, up to 32GB |
| BIOS | AMI |
| COM | 2 x RS-232/422/485 (on board), 2 x RS-232/422/485 (via cable on flexible IO window) |
| USB | 6 x USB 3.0, 2 x USB 2.0 |
| ETHERNET/POE | 4 x 10/100/1000 Mbps (Intel® i210-IT, i219-LM) |
| DISPLAY | 2 x HDMI (1 x HDMI 2.0 & 1 x HDMI 1.4b), 1 x DisplayPort |
| DIGITAL I/O | 32-channel programmable DI/DO |
| AUDIO | Mic-in/Line-out |
| STORAGE | 2 x 2.5” SATA HDD drive bay (max. up 15 mm height & Supports RAID 0 & 1), 1 x CFast™, 1 x mSATA (enabled in BIOS setting) |
| EXPANSION | 2 x Full-size PCI Express Mini Card (USB + PCI Express signal), 1 x SIM slot |
| OTHERS | 1 x Flexible I/O window (default : 2 x COM port), 4 x SMA type connector opening for antenna, 1 x Phoenix type VDC power input connector, 1 x ATX power switch,
1 x Remote power switch, 1 x AT/ATX quick switch, 1 x Reset button |
| POWER SUPPLY | 9 to 36 VDC |
| WATCHDOG TIMER | 255 levels, 1 to 255 sec. |
| CONSTRUCTION | Aluminium extrusion and heavy-duty steel, IP40 |
| OPERATING TEMPERATURE | -40°C to +60°C (-40°F to +140°F) (with W.T. DRAM/SSD for Skylake)
-40°C to +55°C (-40°F to +131°F) (with W.T. DRAM/SSD for Kaby Lake) |
| RELATIVE HUMIDITY | 10% to 95%, non-condensing |
| VIBRATION | 3 Grms with CFast™ drive (5 to 500 Hz, X, Y, Z directions) |
| SHOCK | N/A |
| DIMENSIONS (W X D X H) | 280 x 190 x 76 mm (11.02” x 7.48” x 2.99”) |
| WEIGHT (NET/GROSS) | 3.8 kg (8.37 lb)/ 4.6 kg (10.14 lb) |
| CERTIFICATIONS | UL62368-1, CE, FCC Class A |
| OS SUPPORT | Win10 IoT, WES 8, Linux |
| MOUNTING | Wall mount, DIN-rail |
| PART NUMBERS | AES670-891: Fanless embedded system with LGA1151 socket 7th/6th gen Intel® Core™ i7/i5/i3 & Celeron® processor |
| OPTIONS | Wi-Fi module, 3G/LTE module, Wall mount kit, DIN-rail kit, 24V 120W power adapter, CANbus PCI Express Mini module, LAN PCI Express Mini module, DIO PCI Express Mini module |
