AES510-6COM-AC Fanless System
- Supports Intel® Atom® E3845 processor
- ATEX & CID2 anti-explosion certification
- Fanless and cable less design
- Wide operating temperature range from -40°C to +70°C
- Power input range of 9V to 48V DC with terminal block
- 4 isolated RS-232/422/485 ports & 2 RS-232/422/485 ports
- One 2.5” SATA SSD/HDD and one CompactFlash
Specifications
| PROCESSOR | Intel® Atom™ processor E3827 2C@1.75 GHz, TDP: 8W |
| CHIPSET | SoC integrated |
| SYSTEM MEMORY | DDR3L 4GB on board |
| COM | 2 x RS-232/422/485 & 4 x isolated RS-232/422/485 |
| USB | 1 x USB 3.0, 1 x USB 2.0 |
| ETHERNET | 2 x10/100/1000Mbps (Intel® i210-IT) / Magnetic isolation protection 1.5 kV |
| POE | N/A |
| CANBUS | N/A |
| DIGITAL I/O | 1 x Isolated DIO (8-in/8-out) |
| ANALOG INPUT | N/A |
| DISPLAY | 1 x VGA |
| EXPANSION | 1 x Full-size Rev.1.2 PCI Express Mini Card slot (mSATA/USB/PCIe)
2 x Full-size Rev.1.2 PCI Express Mini Card slot (USB/PCIe with SIM socket) |
| STORAGE | 1 x 2.5″ SATA SSD / 1 x mSATA (occupied 1 PCIe Mini Card slot, mSATA/wireless module either one) |
| OTHERS | RTC Battery function |
| POWER SUPPLY | Power Input Range : 12 to 48 VDC
Power Input Rating : 12 to 48 VDC, 1.36 to 0.45A Power Protection : DC version, OVP, UVP, Reserve Protection |
| WATCHDOG TIMER | 255 levels, 1 to 255 sec. |
| CONSTRUCTION | Extruded aluminium and heavy-duty steel, IP30 |
| OPERATING TEMPERATURE | -40°C to +70°C (-40°F to +158°F) |
| RELATIVE HUMIDITY | 10% to 95%, non-condensing |
| VIBRATION | 5 Gms (10 to 150Hz, amplitude 0.35 mm; operation/storage/transport) |
| DIMENSIONS (W X D X H) | 100.6 x 110 x 135 mm (3.96″ x 4.33″ x 5.31″) |
| WEIGHT (NET/GROSS) | 1.5 kg (3.3 lb)/1.88 kg (4.14 lb) |
| CERTIFICATIONS | ATEX & C1D2 / Heavy Industrial CE / FCC Part 18 / UL60950-1 |
| OS SUPPORT | Windows 7 Embedded, Windows 8 Embedded, Linux support package |
| MOUNTING | DIN-rail / Wall Mounting |
| OPTIONS | Wall mount kit |
Downloads
Similar products
-
TBL1680W Rugged Tablet
View specifications- End of Life product
- Please see Rugged Tablet options
-
TBL1180W Rugged Tablet
View specifications- End of Life product
- Please see Rugged Tablet options
-
TBL10W Rugged Tablet
View specifications- Windows 10/11 Pro operating system
- 10.1” 1280 x 800 IPS display
- Entry level Rugged design
- 4 ~ 6 hour battery
- 4Gb of memory & 128Gb storage
- Intel® Celeron N4100 Quad Core CPU
- MIL-STD 810G shock & drop tested
-

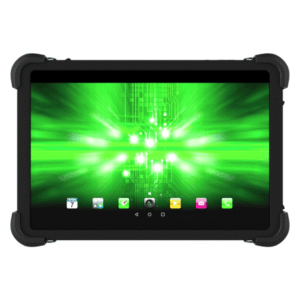

TBL10A Rugged Tablet
