CLOUD12-P28 – Military Systems
- 5-wire resistive touch w/Anti-scratch surface
- Heavy-duty fully IP65 Rugged aluminium chassis with MIL-DTL-38999 connectors
- 1300 nits , compatible with Sunlight Readable
- 12” Glass-Film-Glass Touch panel
- DC-IN 18V~36V
- Multi user Programmable function keys
- Meets MIL-STD-461, MIL-STD-1275, MIL-STD-704, MIL-STD-810G
- Extended Temperature -40°C to 60°C
Specifications
Operating Temperature |
||
|---|---|---|
| -30°C to 60°C (ambient with air flow) | ||
System |
||
| CPU | Intel® Xeon E3-1505L v5 Processor (4C x 2.0/2.8 GHz), 8M Cache (25W) | |
| Memory | 2 x DDR4 up to 32GB ECC memory | |
| Storage | 1 x mSATA Solid State Disk (SSD) – up to 512GB Capacity
1 x 2.5” SSD up to 2TB Rugged Industrial NAND Flash Storage -40 to 85oC High Capacity |
|

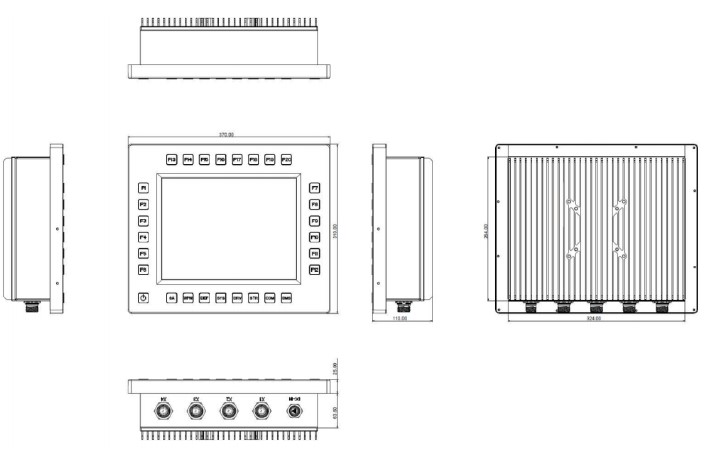

| Dimension (W x D x H) | 390 x 110 x 330mm (w/o Stand) | |
| I/O Connectors (customized requirements) | MIL-STD-D38999 Amphenol connectors
LAN x 2, DVI x 1, USB x 1, COM x 2, DC-IN x 1 |
|
| Power Input | DC-IN 9 to 36V
Optional: MIL-STD-1275, MIL-STD-704 and DO-160 power supply, 12 to 40V (150W max) |
|
Display |
||
| GPU | NVIDIA GeForce GTX950M (Cuda Cores:640) | |
| LCD Panel | 12″ TFT LCD | |
| Resolution | 1024×768 XGA | |
| Aspect Ratio | 4:3 | |
| Brightness | Ultra Brightness 1300 nits | |
| Max. Colours | 16.7M/262k | |
| Viewing Angle | 80° (H) /70° (V) | |
| Response Time | 11ms (TYP.) | |
| Contrast Ratio | 1000 (TYP.) | |
| Touch Panel | Glass-Film-Glass 5-Wire resistor touch panel | |

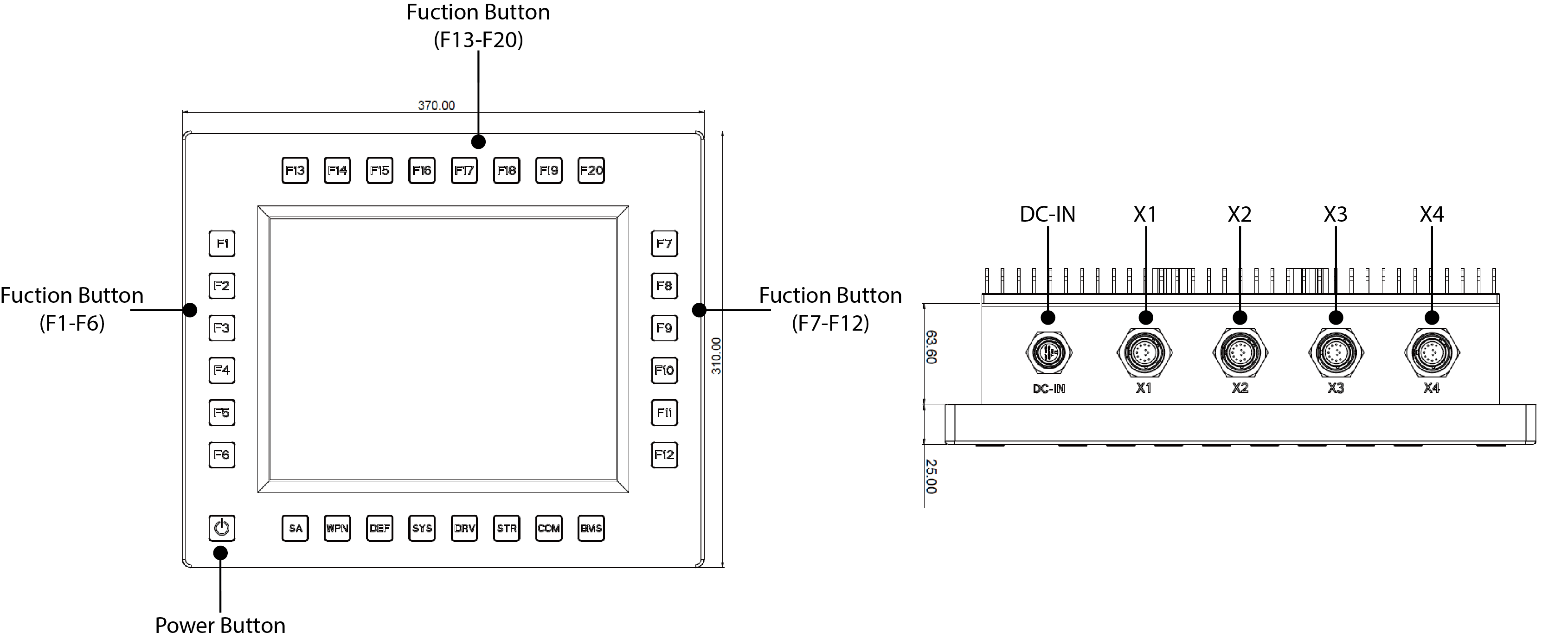

| Function key | 28 user Programmable function keys | |
| Display Control | Power On/Off
LCD Brightness Off/+/- |
|
Compliance, Operating System |
||
| Compliance | MIL-STD-461E :
CE102 basic curve, 10kHz – 30MHz RE102-4, (1.5MHz) – 30MHz – 5GHz RS103, 1.5MHz – 5GHz, 50 V/m equal for all |
|
| MIL-STD-1275E :
5.1.2 Starting operation 5.1.3.1.2 Emitted voltage spikes 5.1.3.2.2 Voltage surges 5.1.3.1.1 Voltage spikes 5.1.3.2.1 Voltage surges 5.1.1.2 Voltage ripple |
||
| MIL-STD-810G :
Harsh Temperature, Shock, Vibration, Altitude and Dust |
||
| Operating System | Windows 10 64bit
Ubuntu16.04, Ubuntu14.04, Fedora 28 |
|
Physical |
||
| Chassis | Aluminium Alloy, Corrosion Resistant | |
| Finish | Anodic aluminium oxide (Colour Desert Yellow) | |
| Ingress Protection | IP65 Dust /water Proof | |
Environmental Qualifications |
||
| Reliability | No Moving Parts; Passive Cooling.
Designed & Manufactured using ISO 9001/2000 Certified Quality Program |
|
| Green Product | RoHS, WEEE compliance | |
