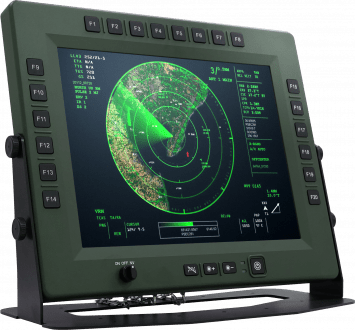

CLOUD15-P20 – Military Systems
- Intel® Xeon E3-1505L/E-2276ML; Nvidia GTX1650
- Up to DDR4-64GB
- Sunlight Readable 1400 Nits
- NVIS Mode Support Dimmable < 1% Nits
- 15″ LCD XGA resolution
- Optical Bonding G.F.G Resistive Touch
- Conduction Cooled Technology
- Extended Temperature -40°C to 65°C
Specifications
| 15” TFT LCD Display & Resistor Touch screen | ||||
| Resolution | 1024×768 XGA | Brightness | 1000 nits (up to 1400 Nits) | |
| Aspect Ratio | 4:3 | Contrast Ratio | 900 | |
| Touch Panel | Glass-Film-Glass 5-Wire resistor touch panel (Optional) | |||
| System SPEC | ||||
| CPU | Intel® Xeon E3-1505L V5 Processor (4C x 2/2.8 GHz), 8M Cache (25W) | |||
| Memory type | 2 x DDR4 up to 32GB ECC memory | |||
| Storage | 1 x mSATA Solid State Disk (SSD) – up to 512GB Capacity
1 x 2.5” SSD up to 2TB Rugged Industrial NAND Flash Storage -40 to 85oC High Capacity |
|||
| Triple Mode | Day Mode: Ultra-Brightness 1000 nits;
Night Mode: NVIS (Down to 1.7 Nits) Invisible Mode: Backlight off |
|||
| OSD | Backlight+
Backlight- Function key backlight On/Off |
|||
| Function Keys | Programmable Function Keys (F1~F20) | |||
| DC-IN | 18V to 36 V, 28Vdc
Optional: 12V to 40V DC-IN (150W max) MIL-STD-461, MIL-STD-1275, |
|||

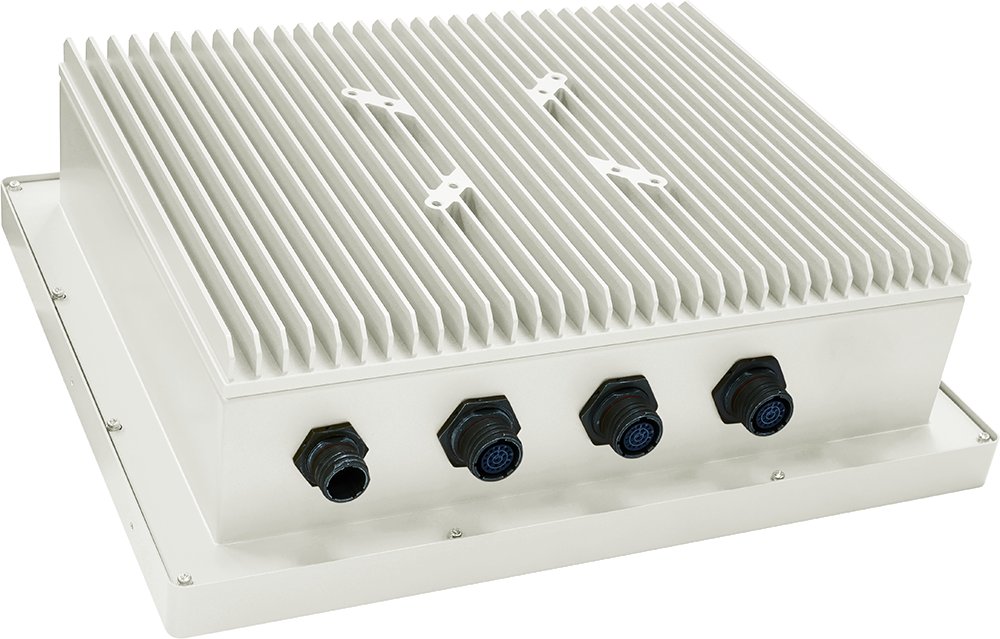

| Connectors | ||||
| DC-IN | Amphenol TV07RW-11-54P | |||
| IO Ports | X1:VGA+Audio (Amphenol TV07RW-13-35S); | |||
| X2:DVI (Amphenol TV07RW-13-35S); | ||||
| X3:2xUSB (Amphenol TV07RW-13-98S) | ||||
| Applications | ||||
| Applications | Marine, Naval, Ground and Airborne environment. | |||
| Physical | ||||

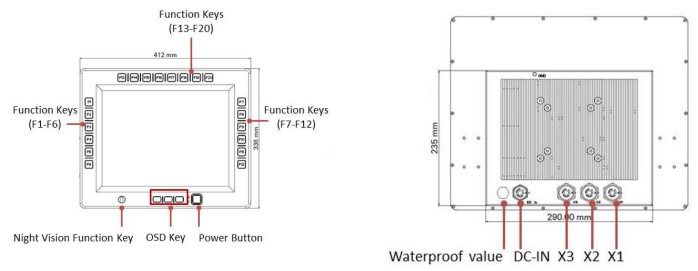

| Dimension | 412 x 110 x 336mm | |||
| Finish | Anodic aluminium oxide | |||
| Chassis | Aluminium Alloy, Corrosion Resistant. | Ingress Protection | IP65 Dust /water Proof | |
| MIL Compliance | ||||
| MIL-STD-810G (Operation Test) | ||||
| Low Temp. | Method 502.5 Procedure 2 | Exposure(24h x 3 cycle) at -10℃ min. | ||
| High Temp. | Method 501.5 Procedure 2 | 60ºC for 2 hrs after temperature stabilization. | ||
| Humidity | Method 507.5 Procedure 2 | RH -95%. Test cycles: ten 24-hrs , functional test after 5th and 10th cycles | ||
| Vibration | Method 514.6 Category 20 | 10-500Hz 1.04Grms Test duration: 1 hr x 3 axis (total 3 hrs) | ||
| Shock | Method 516.6 Procedure 1 | 20G, 11mSec, 3 per axis | ||
| MIL-STD-810G (Non-Operating Tests) | ||||
| Low Temp. | Method 502.5 | Exposure(24h x 7 cycle) at -20℃ min. | ||
| High Temp. | Method 501.5 Procedure 1 | 71ºC for 2 hrs after temperature stabilization. | ||
| Vibration | Method 514.6 Category 24 | 200 to 2000Hz Test duration: 1hr per axis; rms = 7.7 gs | ||
| Shock | Method 516.6 Procedure 1 | 20G, 11mSec, 3 per axis | ||
| MIL-STD-461E | ||||
| CE102 | Basic curve, 10kHz – 30 MHz | |||
| RE102-4, (1.5 MHz) | (1.5 MHz) -30 MHz – 5 GHz | |||
| RS103 | 1.5 MHz – 5 GHz, 50 V/m equal for all frequencies EN 61000-4-2: Air discharge: 8 kV, | |||
| Environmental Qualifications | ||||
| Regulatory | CE , FCC Compliance | |||
| Operation Temp. | -40°C to 65°C (ambient with air flow) | |||
| Storage Temp. | -40°C to 85 °C | |||
| Green Product | RoHS, WEEE compliance | |||
