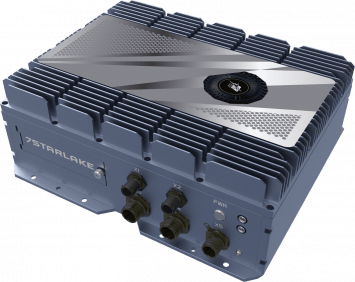

AV800-X1A – Military Systems
- Ultra-High Performance Intel® Xeon® Skylake DE D2183IT
- NVIDIA TELSA T4 GPU Integrated (2560 CUDA, 16GB GDDR6)
- 128GB DDR4 ECC RDIMM
- NVMe for Fast & Mass Storage
- Designed for reliability under demanding MIL-STD-810 Temperature, Shock, Vibration environments
- Extended Temperature -20 to +55 Degree
Specifications
| System | |
|---|---|
| Processor | Intel® Xeon® Processor D-2183IT (Frequency 2.20GHz, Turbo Boost Frequency up to 3.00GHz), 16-Core, 32 Thread Support, 22MB Smart Cache. |
| Memory type | 4 x DIMMs Up to 256GB ECC RDIMM DDR4 2133MHz |
| Chipset | SoC, integrated with CPU |
| GPU | |
| NVIDIA | TESLA T4 |
| Turning Tensor Cores | 320 |
| CUDA Cores | 2560 |
| Memory | 16 GB GDDR6, 300 GB/sec |
| Graphics Output | |
| 1x VGA | ASPEED AST2500 |
| Resolution | Up to 1920×1200@60Hz 32bpp |
| Storage | |
| HDD/SSD | 1x M.2 2280 M key NVMe socket (PCIe Gen3 x4) for NVMe SSD installation
2 x 2.5″ SSD (Easy Swappable) |
| Side I/O | |
| X1
(2 x 10GbE Ethernet) |
1x Amphenol TV07RW-13-35S (22PIN) |
| X3(VGA) | 1 x Amphenol TV07RW-13-35S (22PIN) |
| X4(USB3.0x2) | 1 x Amphenol TV07RW-13-35S (22PIN |
| X5 (DC-IN) | 1 x Amphenol TV07RW-13-04P (4PIN) |
| Button | 1 x Power Switch with Dedicated LED |
| SSD Tray | 2 x Dual 2.5″ HDD/SSD Easy Swap Tray |
| Dedicated LED | 1 x Red LED(OVHT),1 x Green LEDs(SSD) |
| Power Requirements | |
| Power Input | DC-DC 18 to 36V (300W max) Mil-STD 461 |
| Applications, Operating System | |||||||
|---|---|---|---|---|---|---|---|
| Applications | Commercial and Military Platforms Requiring Compliance to MIL-STD-810 Process Control, where Harsh Temperature, Shock, Vibration, Altitude, Dust and EMI Conditions. | ||||||
| Operating System | Windows 10 64Bit, Windows Server 2008 R2, Windows Server 2012 R2, Windows Server 2016, Ubuntu14.04, Fedora 20/23, RedHat Linux EL 7.1/7.2, VMware ESXi 6.0, ESXi 6.5 | ||||||
| Physical | |||||||
| Dimension(W x D x H) | 400 x 284 x 180mm (15.74″ x 11.18″ x 7.08″) | ||||||
| Weight | 15Kg (33.06lbs)> | ||||||
| Chassis | Aluminium Alloy, Corrosion Resistant | ||||||
| Finish | Anodic aluminium oxide | ||||||
| Cooling | Natural Passive Convection/Conduction. No Moving Parts | ||||||
| Ingress Protection | IP65 | ||||||
| Environmental | |||||||
| Operating Test | MIL-STD-810G Test | ||||||
| Method 502.5, Procedure II ( Operation/Low Temperature ) | |||||||
| Method 501.5, Procedure II ( Operation/High Temperature ) | |||||||
| Method 507.5, Procedure II ( Temperature & Humidity ) | |||||||
| Method 514.6 Vibration Category 24/Non-Operating ( Category 20 & 24, Vibration ) | |||||||
| Method 516.6 Shock-Procedure V Non-Operating ( Mechanical Shock ) | |||||||
| Method 516.6 Shock-Procedure I Operating ( Mechanical Shock ) | |||||||
| Non-Operating Test | |||||||
| Method 502.5, Procedure I ( Storage/Low Temperature ) | |||||||
| Method 502.5, Procedure II ( Operation/Low Temperature ) | |||||||
| Method 501.5, Procedure I ( Storage/High Temperature ) | |||||||
| Method 514.6 Vibration Category 24/Non-Operating ( Category 20 & 24, Vibration ) | |||||||
| Method 514.6 Vibration Category 20/Operating ( Category 20 & 24, Vibration ) | |||||||
| Method 516.6 Shock-Procedure V Non-Operating ( Mechanical Shock ) | |||||||
| Method 516.6 Shock-Procedure I Operating ( Mechanical Shock ) | |||||||
| Method 509.7 Salt Spray (50±5)g/L | |||||||
| EMC compliance | |||||||
| MIL-STD-461 :
CE102 basic curve, 10kHz – 30 MHz RE102-4, (1.5 MHz) -30 MHz – 5 GHz RS103, 1.5MHz to 18GHz, 50V/m equal for all frequencies EN 61000-4-2: Air discharge: 8 kV, Contact discharge: 6kV EN 61000-4-4: Signal and DC-Net: 1 kV EN 61000-4-5: Leads vs. ground potential 1kV, Signal und DC-Net: 0.5 EN 55022, class A EN 61000-4-3: 10V/m Designed to Meet the following testing methods (Options for testing with additional cost):CS101, CS114, CS115,CS116CE106, RE103,RS101MIL-STD-1275:Steady State – 20V~33VSurge Low – 18V/500msSurge High – 100V/500ms |
|||||||
| Operating Temperature | -20°C to 55°C | ||||||
| Storage Temperature | -40°C to 85°C | ||||||
