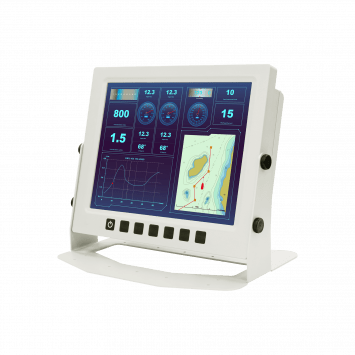

CLOUD12-P06 – Military Systems
- Intel® Kabylake-U SoC 14nm Core™ i7/i5/i3 BGA Type
- 2 x SO-DIMM up to DDR4 32GB
- 64 GB Onboard SATAIII SSD, 2 x mPCIe (1 with mSATA supported)
- 12″ LCD XGA resolution
- Resistive Touch (GFG)
- IP65 protection
- Front aluminium frame
- Convection cooling

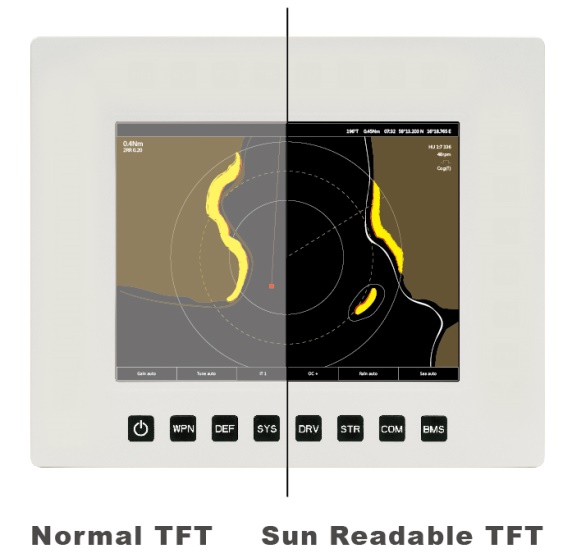

- Sunlight readable and NVIS compatible
- IR Touch (by option)
- EMI Mesh (by option)
Specifications
Operating Temp. |
|
|---|---|
| -30°C to 65°C (ambient with air flow) | |
System |
|
| Model | Cloud12-P06 |
| CPU | Intel® Kabylake-U SoC 14nm Core™ i7/i5/i3 BGA Type
Intel® Core™ i7-7600U Processor (2C, 4M Cache, up to 3.9GHz) Intel® Core™ i5-7300U Processor (2C, 3M Cache, up to 3.5GHz) Intel® Core™ i3-7100U Processor (2C, 3M Cache, 2.4GHz) |
| Memory | 2 x XR-DIMM up to 16 GB |
| Storage | Onboard uSSD SATAIII up to 64 GB 1 x 2.5″ HDD/SSD |
| Expansion | 2 x mPCIe (1 with mSATA supported) |
| LCD Panel | 12″ TFT LCD |
| Resolution | 1024×768 XGA |
| Aspect Ratio | 4:3 |
| Brightness | 1300 nits |
| Max. Colours | 16.7M/262k |
| Viewing Angle | 80° (H) /70° (V) |
| Response Time | 11ms (TYP.) |
| Contrast Ratio | 1000 (TYP.) |
| Touch Panel | Glass-Film-Glass 5-Wire resistor touch panel |
| Function key | 6 user function keys |
| Display Control | Power On/Off LCD Brightness +/- Function key backlight On/Off Display mode Select (On/Off/Night Vision) |
Power |
|
| DC-In | 18V to 36V (Vicor Solution) |

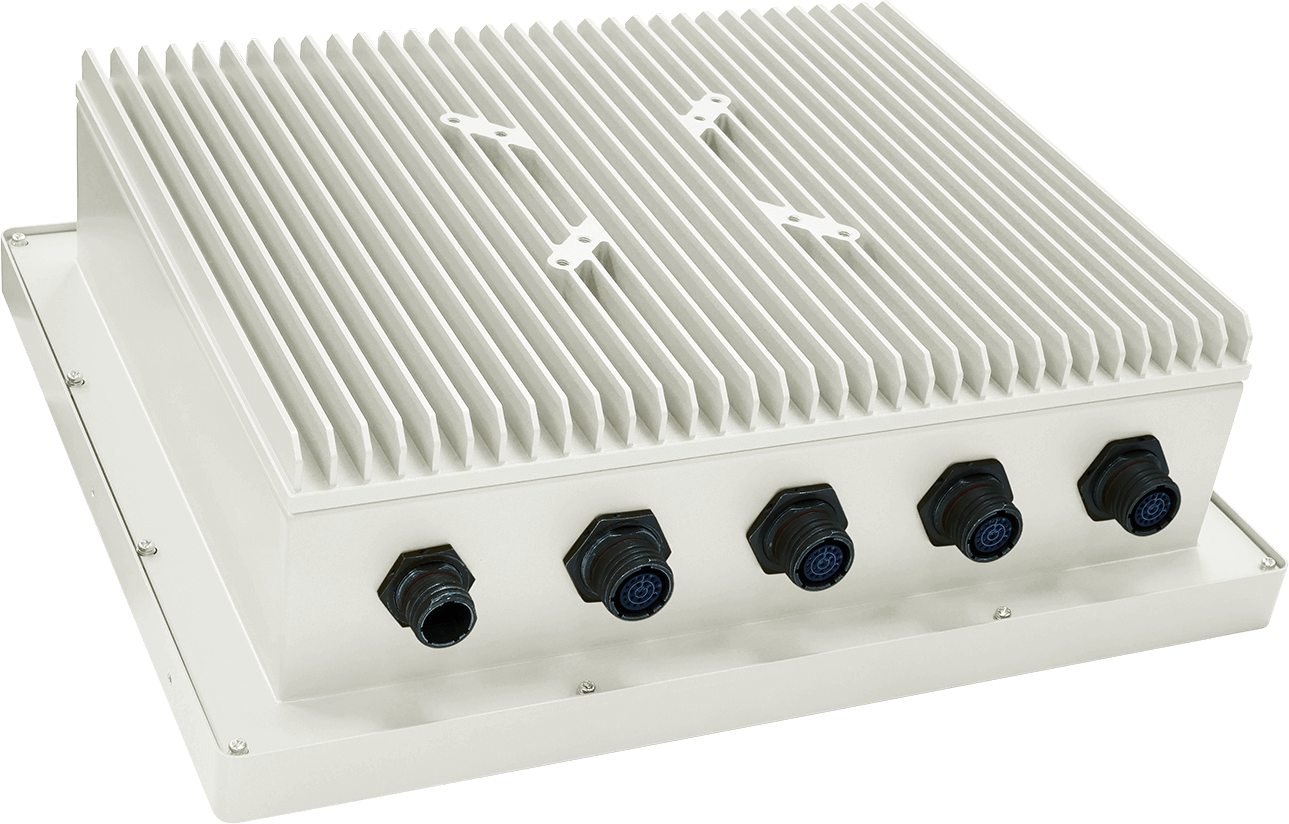

Rear I/O |
|
| DisplayPort | 1 x MIL-38999 22Pin connector (Amphenol TV07RW-13-35S) |
| USB x 2, COM x 1 | 1 x MIL-38999 22Pin connector (Amphenol TV07RW-13-35S) |
| LAN x 2 | 1 x MIL-38999 22Pin connector (Amphenol TV07RW-13-35S) |
| DC-IN | 1 x MIL-38999 4Pin connector (Amphenol TV06RW-11-54S) |
OS support list |
|
| Windows | Windows 8 32/64 bit, Windows 10 32/64bit |
| Linux | Fedora 20, Ubuntu 13.10, Ubuntu 14.04 |
Mechanical and Environment |
|
| Power Requirement | 18V to 36V DC-in |
| Dimension | 310 x 90 x 280mm (w/o Stand) |
| Weight | TBD |
| Operating Temp. | -30°C to 65°C (ambient with air flow) |
| Storage Temp. | -40°C to 85°C |
| Relative Humidity | 10% to 95%, non-condensing |
Compliance |
|
| EMC | CE, FCC Class A |
| Railway | MIL-STD-810G, MIL-STD-1275, MIL-SD-461E Compliant |
