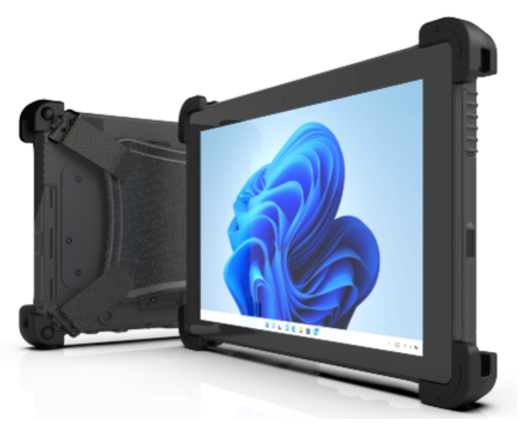

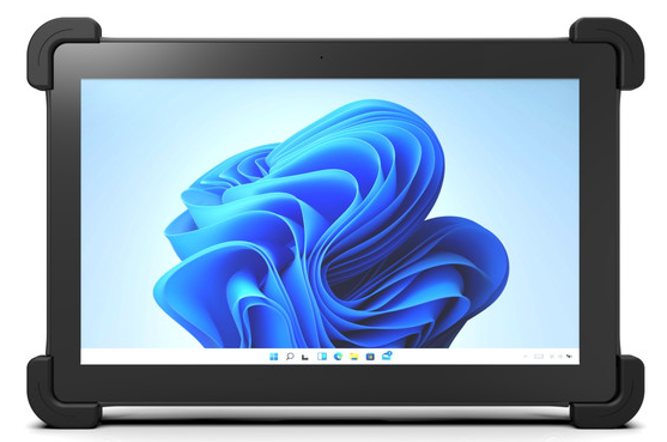

TBL1185W Rugged Tablet
- Windows 11 Pro operating system
- 10.1” Intel Pentium N6415 processor
- 3-year warranty as standard
- Hot swappable battery
- Sunlight viewable screen
- MIL-STD810G 5ft drop tested design
- IP65 sealed for water & dust protection
Specifications
| DIMENSIONS | 283.4mm L x 192mm H x 21.9mm D |
| DISPLAY | 10.1” sunlight viewable, WUXGA 1920W x 1200H IPS; 550 NITS |
| TOUCH PANEL | 10-point Multi Touch Capacitive |
| SCREEN PROTECTION | Oleophobic, scratch-resistant glass |
| WEIGHT | 3.24 lb. (1.47kg) – base configuration |
| IP RATING | IP65 Sealing (water and dust) |
| DROP / SHOCK PROTECTION | MIL-STD 810G 26 drops to 1 operating unit on to plywood over concrete from 5 feet |
| OPERATING TEMPERATURE | 14° F to +122° F (-10° C to +50° C) |
| STORAGE TEMPERATURE | -4° F to +140° F (-20° C to +60° C) |
| HUMIDITY | 95% non-condensing |
| PROCESSOR | Intel Pentium N6415, 4 Cores, 1.20 GHz, Base Frequency, Burst to 3.00 GHz |
| SYSTEM MEMORY | 8GB LPDDR3-1600 RAM |
| STORAGE | Internal – 256GB M.2 SSD, External – up to 1TB (SDXC) |
| OPERATING SYSTEM | Windows 11 Pro |
| BUTTONS | Barcode scan – Soft button/Virtual, Volume +/-, Power, Function – Programmable |
| IO PORTS | SUSB Type A 3.0 (2)
HDMI Type D (Micro) 3.5mm Aux, Power – DC Barrel Jack Micro SIM Card Slot, Micro SDX Slot RJ45 Gigabit Ethernet Port |
| BATTERY | 7.2V, 9447 mAh, 68Wh, up to 10Hr battery life
Hot swappable |
| AUDIO | Realtek High Definition Audio |
| CAMERA | Front – 2MP FF, Rear – 8MP AF with flash |
| BARCODE READER | Optional: High performance 2D barcode scanner |
| SENSORS | 9 Axis MEMS sensor (gravity acceleration, eCompass, gyroscope) Ambient light sensor, proximity sensor |
| APPROVALS | RFCC-CE-IC-WEEE-RoHS-UKCA |
| WLAN | WLAN Wi-Fi 802.11a/b/g/n/AC |
| BLUETOOTH | BT5.1 |
| GPS | Built in GPS |
| SECURITY | TPM 2.0 Firmware |
| 4G LTE | Optional 4G LTE module |
| MOUNTING | Powered Dock, Unpowered Holder, Office Dock, Direct Wiring, Multiple Battery Charger |
| PART NUMBERS | TBL1185W-11: Tablet specifications as per above with Windows 11 Pro |
