Specifications
| PROCESSOR | Intel® Atom™ processor E3845 1.91GHz |
| CHIPSET | SoC integrated |
| SYSTEM MEMORY | 1 x 204-pin SO-DIMM DDR3L-1066/1333, up to 8GB |
| BIOS | AMI |
| COM | 2 x RS-232/422/485, 2 x RS-232 |
| USB | 4 x USB 2.0 |
| ETHERNET/POE | 2 x 10/100/1000 Mbps (Intel® i210IT) |
| DISPLAY | 1 x VGA, 1 x HDMI |
| DIGITAL I/O | 8 channel programmable DI/DO |
| AUDIO | Mic-in/Line-out |
| STORAGE | 1 x 2.5” SATA HDD, 1 x CFast™, 1 x mSATA |
| EXPANSION | 1 x Full-size PCI Express Mini Card (USB + PCI Express signal), 1 x Half-size PCI Express Mini Card (USB + PCI Express signal), 1 x SIM slot |
| OTHERS | 3 x SMA-type antenna connector |
| POWER SUPPLY | Input AC 90-264V, AC 60W adapter with lock, Output: DC 12V @ 5A |
| WATCHDOG TIMER | 255 levels, 1 to 255 sec. |
| CONSTRUCTION | Aluminium extrusion and heavy-duty steel, IP40 |
| OPERATING TEMPERATURE | -40°C~+60°C (-40°F~+140°F) |
| RELATIVE HUMIDITY | 10% to 90%, non-condensing |
| VIBRATION | 3 Grms with CFast™ drive (5-500Hz, X, Y, Z directions) |
| SHOCK | N/A |

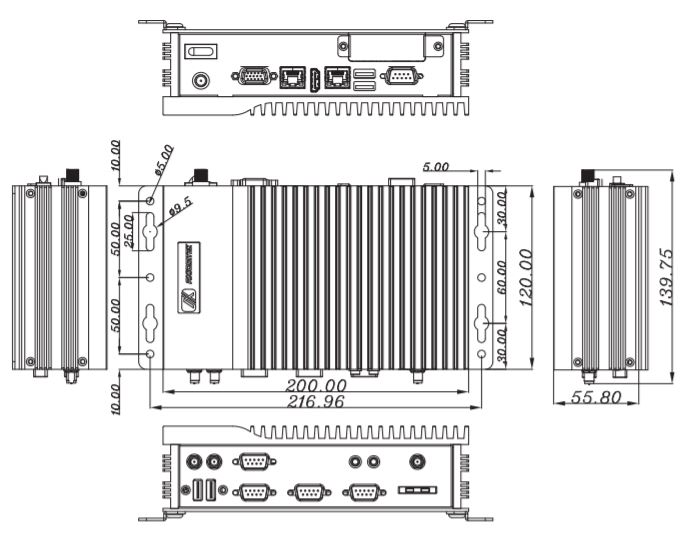

| DIMENSIONS (W X D X H) | 200 x 120 x 56 mm (7.87” x 4.72” x 2.2”) |
| WEIGHT (NET/GROSS) | 2 kg (4.41 lb)/ 2.7 kg (5.95 lb) |
| CERTIFICATIONS | CE |
| OS SUPPORT | WES 8, WES 7 |
| MOUNTING | Wall mount, DIN-rail, VESA mount |

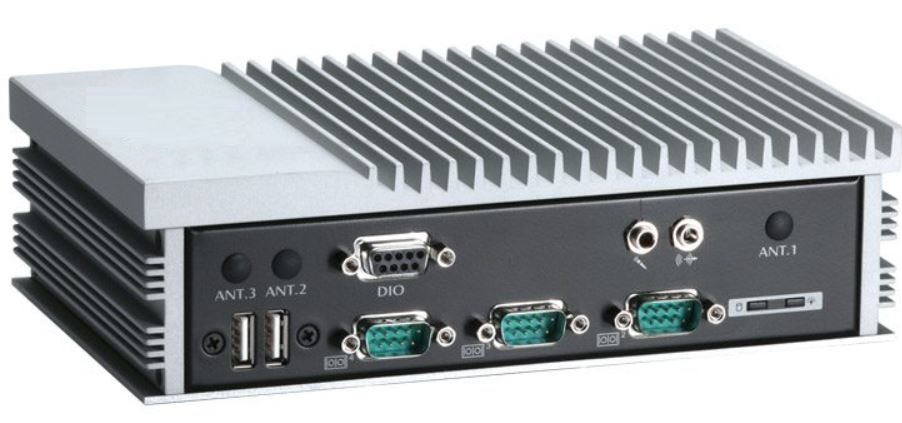

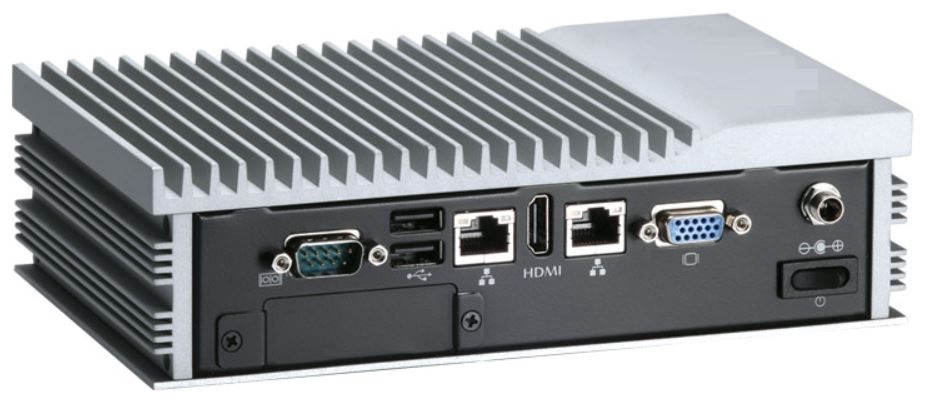

| PART NUMBERS | AES620-841-3845: Fanless embedded system with Intel® Atom® E3845 1.91 GHz |
| OPTIONS | Wall mount kit, VESA arm kit, DIN-rail kit, Wi-Fi module, 12V/60W Adapter, Power cord |
