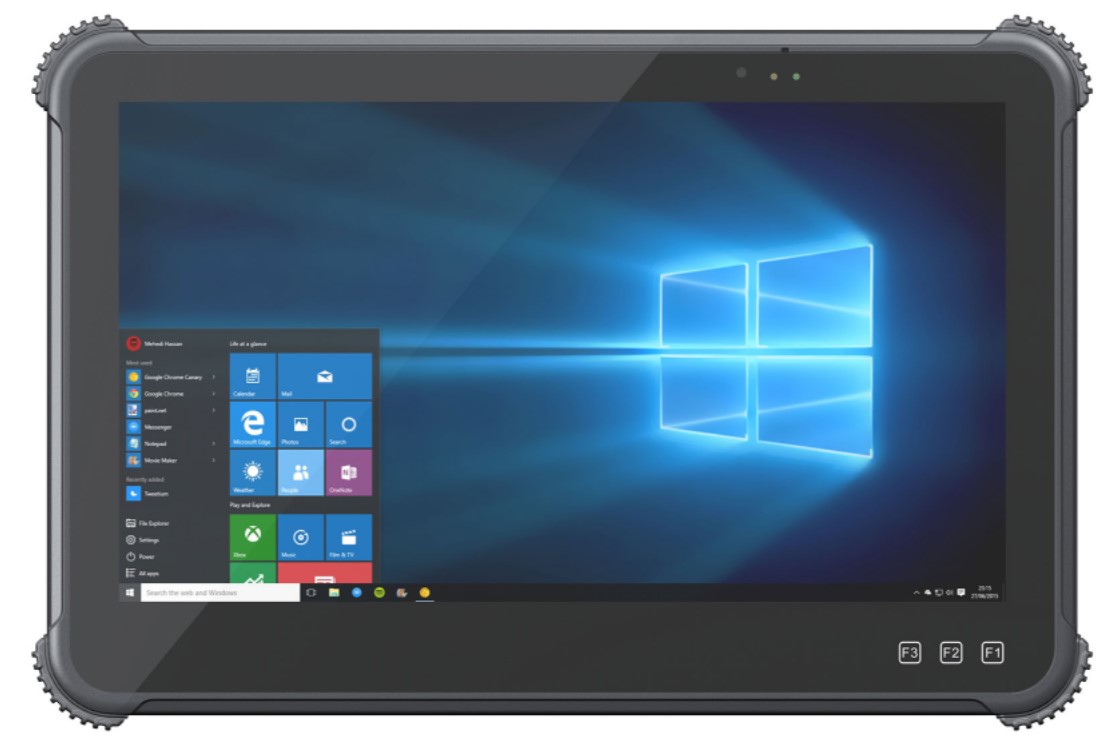

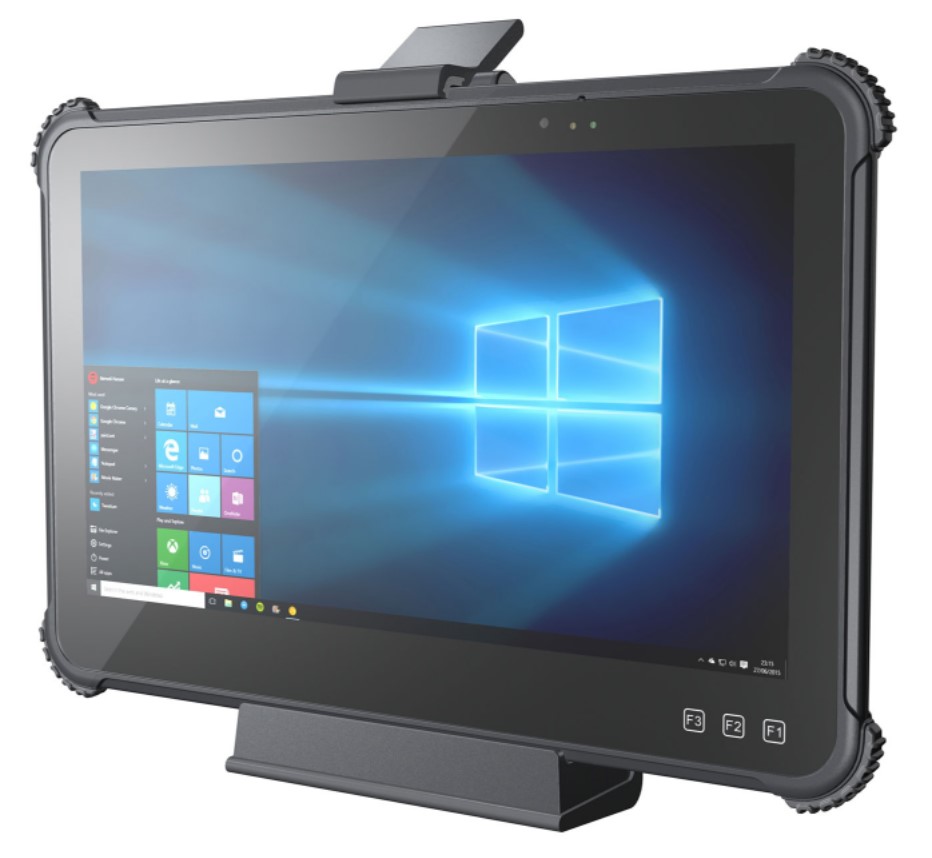

TBL1160W Rugged Tablet – EOL
- Windows 10 Pro Operating System
- 11.6” 1920 x 1080 IPS display
- Entry level Rugged design
- Long battery life
- 4Gb of memory & 64Gb storage
- Intel® Pentium N4200E Quad Core CPU
- MIL-STD 810G shock & drop tested
Specifications
| DIMENSIONS | 11.75″ W x 7.84″ H x .70″ D (299 mm W x 199 mm H x 17.7 mm D) |
| DISPLAY | 11.6″, 1920W x 1080H IPS; 300 nits. Optional 500 nits display |
| TOUCH PANEL | 10-point Multi Touch Capacitive |
| SCREEN PROTECTION | Gorilla® Glass 3 and Direct Bonding |
| SCANNER | Optional Honeywell Swift Decoder (1D/2D support) |
| WEIGHT | 895g base configuration |
| IP RATING | IP65 Sealing (water and dust) |
| DROP / SHOCK PROTECTION | MIL-STD 810G, 1.2m drop |
| OPERATING TEMPERATURE | -10°C ~ 50°C |
| STORAGE TEMPERATURE | 20°C ~ 60°C |
| HUMIDITY | 10% ~ 90% @40°C non-condensing |
| PROCESSOR | Intel® Pentium N4200E (Quad-Core) 1.1GHz with turbo frequency to 2.5GHz |
| SYSTEM MEMORY | DDR4: 4GB RAM standard, option for DDR4: 8GB RAM |
| STORAGE | 64Gb standard, option for 256Gb |
| OPERATING SYSTEM | Windows® 10 IoT Enterprise 2019 LTSB |
| BUTTONS | 1 x Power Key, 2 x Volume Key
3 x Capacitive Function Keys (front side) |
| IO PORTS | 1 x USB 3.0 Type-A
1 x Nano-SIM w/ LTE only (Support by Request) 1 x Audio Jack, 1 x DC Jack, 1 x POGO connector |
| BATTERY | 19.53Whr Removable lithium battery with latch lock (2570mAh, 7.6V)
Hot Swappable 2.66Whr back-up battery (700mAh*1, 3.8V, 1S1P) |
| AUDIO | 1 x Audio Jack |
| CAMERA | 8MP Auto-Focus CMOS built-in module with Flash LED |
| SECURITY | HW TPM 2.0 FIPS 140-2 Level 2 Compliance |
| APPROVALS | CB/CE/FCC/VCCI |
| WLAN | IEEE 802.11 ac/a/b/g/n (2.4GHz/5GHz) |
| BLUETOOTH | BT5.0 |
| PART NUMBERS | TBL1160W: Rugged tablet with Windows 10 2019 LTSC operating system |
| WARRANTY | One year return to base warranty as standard
Option to extend warranty to 3 years |
| DOCKING STATION | Optional Docking station provides:
Desktop Cradle with Power Charging Battery Charging Bay and I/O Expansion 1 x Powered 24V USB 1 x USB 3.0 Type-A 2 x USB 2.0 Type-A 1 x HDMI 1.3 1 x Powered 5V/12V Serial Port 1 x Giga LAN 1 x Battery Charging Slot 1 x DC Jack AC to DC, DC 24V 180W Adapter |
| REAR TABLET PORT EXTENSION COVER | Vehicle Mounting VESA mount support 75 mm x 75mm
Power Charging and I/O Expansion Clip-Fix Design for easy tablet removal 1 x Powered 24V USB 1 x USB 3.0 Type-A 1 x HDMI 1.3 1 x Powered 5V/12V Serial Port 1 x Giga LAN (Optional) 3 x SMA ( 2 x LTE and 1 x GPS) for RF Antenna Path (Optional) 1 x Nano-SIM (support by request) 1 x DC Jack AC to DC, DC 24V 180W Adapter |
Downloads
