Specifications
| PROCESSOR | Intel® Core™ i7-6600U 3.4 GHz/i5-6300U 3 GHz/i3-6100U 2.3 GHz & Celeron® 3955U 2.0 GHz (Skylake ULT SoC) |
| CHIPSET | SoC integrated |
| SYSTEM MEMORY | 1 x 260-pin SO-DIMM DDR4-2133, up to 16 GB |
| BIOS | AMI |
| COM | 1 x RS-232/422/485, 1 x RS-232 |
| USB | 4 x USB 3.0 |
| ETHERNET/POE | 2 x 10/100/1000 Mbps (Intel® i210-AT, i219-LM) |
| DISPLAY | 2 x HDMI |
| DIGITAL I/O | N/A |
| AUDIO | N/A |
| STORAGE | 1 x 2.5” SATA HDD drive bay (max. up 9.5 mm height), 1 x mSATA (enabled in BIOS setting) |
| EXPANSION | 1 x Full-size PCI Express Mini Card slot (USB + PCIe signal) |
| OTHERS | 2 x SMA-type antenna connector, 1 x AT/ATX quick switch, 1 x ATX power switch,
1 x Reset button |
| POWER SUPPLY | 12 VDC |
| WATCHDOG TIMER | 255 levels, 1 to 255 sec. |
| CONSTRUCTION | Aluminium extrusion and heavy-duty steel, IP40 |
| OPERATING TEMPERATURE | -10°C to +55°C (-14°F to +131°F) (with W.T. DRAM/SSD) |
| RELATIVE HUMIDITY | 10% to 95%, non-condensing |
| VIBRATION | 3 Grms with SSD (5 to 500 Hz, X, Y, Z directions) |
| SHOCK | N/A |

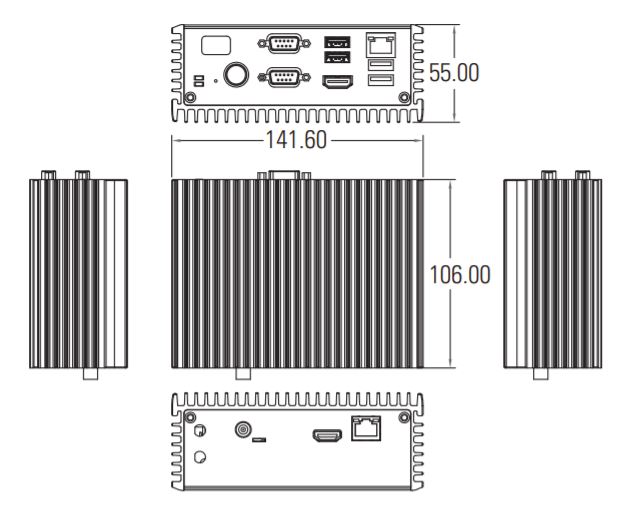

| DIMENSIONS (W X D X H) | 141.5 x 106 x 55 mm (5.57″ x 4.17″ x 2.17″) |
| WEIGHT (NET/GROSS) | 0.8 kg (1.76 lb)/1.67 kg (3.68 lb) |
| CERTIFICATIONS | CE |
| OS SUPPORT | Win 10, WES 8, Linux |
| MOUNTING | Wall mount, DIN-rail, VESA mount |
| PART NUMBERS | AES560-500-3955U: Fanless embedded system with 6th generation Intel® Celeron® 3955U
AES560-500-6600U: Fanless embedded system with 6th generation Intel® Core™ i7-6600U AES560-500-6300U: Fanless embedded system with 6th generation Intel® Core™ i5-6300U AES560-500-6100U: Fanless embedded system with 6th generation Intel® Core™ i3-6100U |
| OPTIONS | Wall mount kit, VESA arm kit, DIN-rail kit, Wi-Fi module, 12V 60W power adapter, Power cord |
