PPC2018 – Panel PCs

  • 10.4″ XGA Panel PC
  • Intel® Celeron® N3060 processor
  • 5-wire Resistive Touch screen

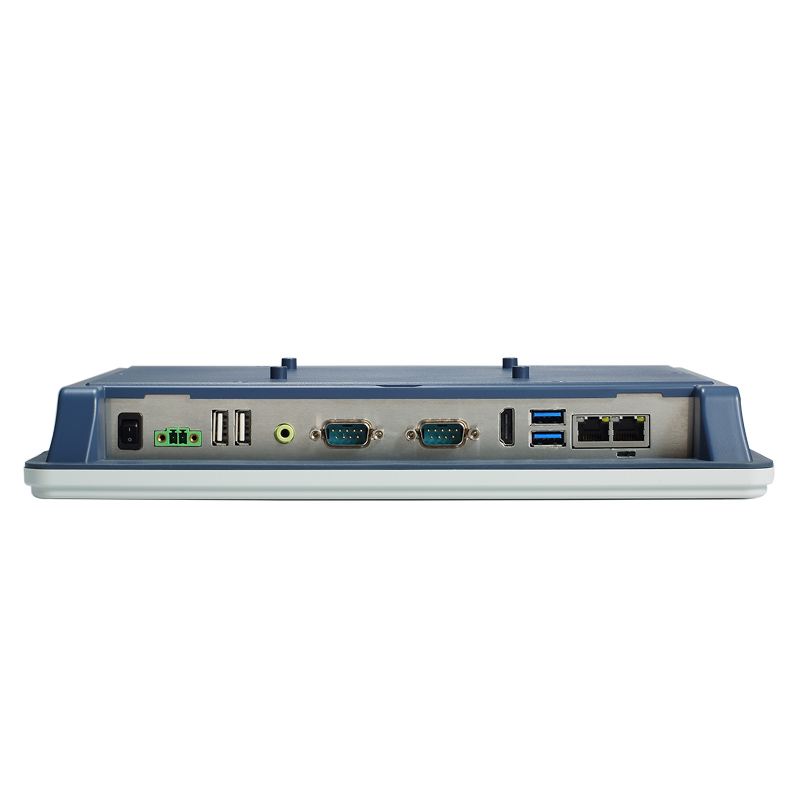

  • IO: 2 LAN/HDMI/COM/USB3.0/USB2.0
  • 1 x 2.5” SSD bay, 1 x mSATA
  • Supports up to 8GB DDR3L memory
  • IP65 compliant front panel
  • Panel/wall/stand/VESA mounting
  • 24V DC or AC input
  • Supports Windows 7 & Windows 10
View specifications
Download data sheet

Specifications

PANEL 10.4″ XGA/SVGA TFT LCD with LED backlight

350 nits (XGA)

400 nits (SVGA)

1024 x 768 (XGA)

800 x 600 (SVGA)
PROCESSOR Intel® Celeron® processor N3060 (up to 2.48 GHz)
CHIPSET SoC integrated
SYSTEM MEMORY 1 x 204-pin DDR3L-1600 SO-DIMM, up to 8GB
BIOS AMI
COM 1 x RS-232

1 x RS-232/422/485
USB 2 x USB 2.0

2 x USB 3.0
ETHERNET 2 x 10/100/1000 Mbps (Intel® i211-AT)
DISPLAY 1 x HDMI
AUDIO 1 x Audio (Line-out)
STORAGE 1 x 2.5″ SATA HDD (9.5 mm height)

1 x mSATA
EXPANSION 1 x Full-size PCI Express Mini Card slot with mSATA

1 x Full-size PCI Express Mini Card slot with SIM
OTHERS 1 x Switch for power On/Off

1 x AT/ATX mode selection switch
TOUCHSCREEN 5-wire resistive touch
FRONT BEZEL IP65, NEMA 4 rugged protection, plastic front bezel
POWER SUPPLY AC version: 100 – 240VAC-DC, 60W power adapter or

DC version: 24 VDC with over current protection fuse
POWER CONSUMPTION 32W
WATCHDOG TIMER 255 levels, 0 to 255 sec.
OPERATING TEMPERATURE 0°C to +50°C (+32°F to +122°F) (with W.T. DRAM/HDD in airflow condition)

0°C to +45°C (+32°F to +113°F) (with W.T. DRAM/HDD)
RELATIVE HUMIDITY 20% to 90% @ 40°C; non-condensing
VIBRATION 2G, 5 – 500Hz, random for SSD

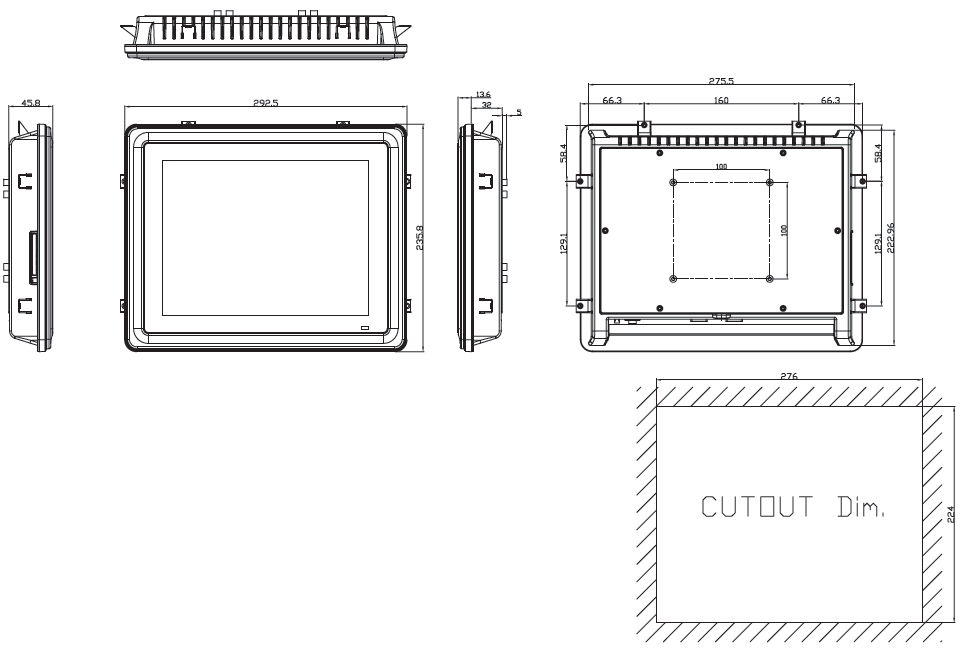

DIMENSIONS (W X D X H) 292.5 x 45.8 x 235.8 mm (11.52″ x 1.80″ x 9.28″)
WEIGHT (NET/GROSS) 1.8 kg (3.96 lb)/3 kg (6.61 lb)
CERTIFICATIONS CE, FCC, UL60950-1
OS SUPPORT WES 7, Windows® 7, WE8S (64-bit), Windows® 8.1 (64-bit), Windows® 10
MOUNTING Panel mount

Wall mount

VESA arm

Desktop stand
PART NUMBERS PPC2018: 10.4″ SVGA fanless touch panel computer with Intel® Celeron® processor N3060, 5-wire resistive touch screen, AC-DC 60W power adapter (screw type connector) and EMI class A

PPC2018-01: 10.4″ SVGA fanless touch panel computer with Intel® Celeron® processor N3060, 5-wire resistive touch screen and 24 VDC power input (terminal block connector)

PPC2018-02: 10.4″ XGA fanless touch panel computer with Intel® Celeron® processor N3060, 5-wire resistive touch screen, AC-DC 60W power adapter (screw type connector) and EMI class A

PPC2018-03: 10.4″ XGA fanless touch panel computer with Intel® Celeron® processor N3060, 5-wire resistive touch screen and 24 VDC power input (terminal block connector)
OPTIONS Wi-Fi + Bluetooth kit

Speaker kit

Panel mount kit

VESA mount kit

Stand kit

RFID kit
