NES-105-E3845 Fanless System

– HDMI and DVI-D

– HDMI and VGA (via DVI-I to VGA converter)

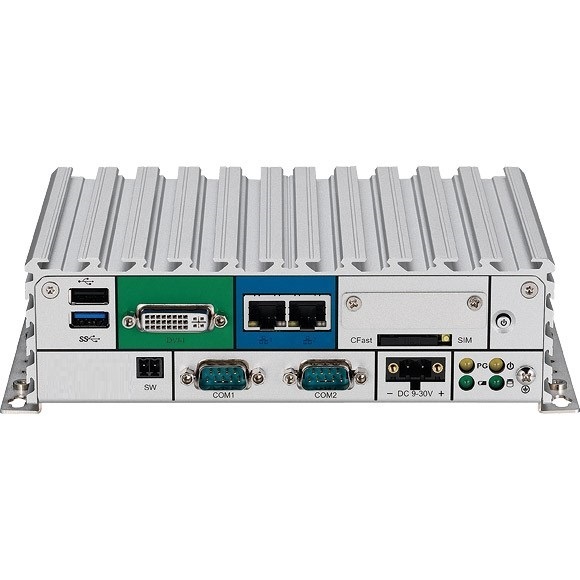

1 x Power Status/1 x HDD Access/1 x Battery Low/1 x Programing LEDs

1 x External CFast socket

1 x SIM Card holder

2 x Intel® I210IT GbE LAN Ports, support Wake on LAN, Teaming and PXE

1 x DVI-I Display Output

1 x USB3.0 (900mA per each)

1 x USB2.0 (500mA per each)

2 x DB9 for COM1 & COM2, both support RS232/422/485 with auto flow control

– Jumper-free setting on RS232/422/485

– Support 5V/12V/Ring function by jumper setting, Ring as the default (COM2 Only)

1 x Remote Power ON/OFF Switch

1 x 2-pin DC input, support +9 to 30VDC input (nominal DC input: 24V)

1 x HDMI

1 x RTC Battery

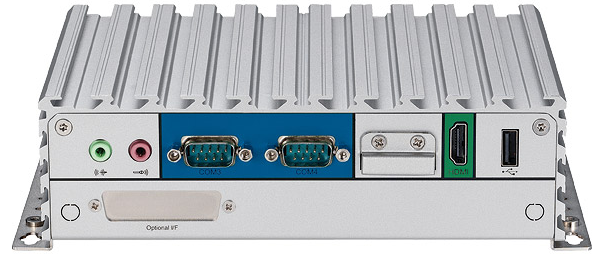

2 x DB9 for COM3 & COM4, both support RS232/422/485 with auto flow control

– Jumper-free setting on RS232/422/485

1 x Mic-in & 1 x Line-out

2 x Antenna Holes for optional Wi-Fi/3.5G antenna

1 x Optional I/F for optional miniPCIe Wi-Fi/3.5G modules

1 x 2.5″ HDD (SATA2.0)

1 x Optional 24V, 60W power adapter

Windows Embedded Standard 8, 32-bit/64-bit

Windows 7, 32-bit/64-bit

Windows Embedded Standard 7, 32-bit/64-bit

Windows Embedded Compact 7, 32-bit

Windows 10 IoT Enterprise, 64-bit

Linux Kernel version 3.8.0

Ambient with air flow: -5°C to 55°C with industrial grade device

(According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14)

Storage Temperature: -30°C to 85°C

Relative Humidity: 10% to 95% (non-Condensing)

Shock Protection:

– HDD: 20G, half sine, 11ms, IEC60068-2-27

– CFast: 50G, half sine, 11ms, IEC60068-2-27

Vibration Protection w/HDD Condition:

– Random: 0.5Grms @ 5~500 Hz, IEC60068-2-64

– Sinusoidal: 0.5Grms @ 5~500 Hz, IEC60068-2-6

Vibration Protection w/CFast & SSD Condition:

– Random: 2Grms @ 5~500 Hz, IEC60068-2-64

– Sinusoidal: 2Grms @ 5~500 Hz, IEC60068-2-6

FCC Class A

UL/ cUL
