PPC1013 – Panel PCs

Resolution: WXGA 1280 x 800

Luminance: 300cd/m2

Contrast ratio: 1300:1

LCD colour: 262K

Viewing angle: 85 (U), 85 (D), 85 (L), 85 (R)

Backlight: LED

Touch light transmission: 90%

Anti-scratch surface: 7H hardness

Touch interface: USB

BIOS: AMI BIOS

System memory: 2 x 204-pin DDR3L SO-DIMM socket, 4GB DDR3L (default), support up to 8GB DDR3L-1066/1333, non-ECC and un-buffered

Storage device:

– 1 x External locked CFast socket

– 1 x Hard drive bay: optional 1 x 2.5” SATA HDD or 1 x SATA DOM

Watchdog timer: Watchdog timeout can be programmable by software from 1 second to 255 seconds and from 1 minute to 255 minutes (tolerance 15% under room temperature 25°C)

H/ W status monitor: monitoring system temperature, and voltage

Expansion: 2 x mini-PCIe sockets (support optional Wi-Fi, 3.5G module)

Front LED indicator to show operating status

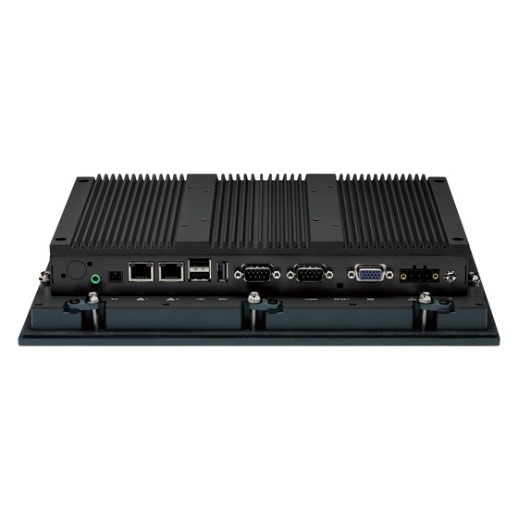

2nd display VGA port: 1 x DB15

Audio port: 1 x Line-out

USB: 2 x USB 2.0, 1 x USB 3.0

2-pin remote power on/off switch

Power switch

Reset button

COM #1: RS232/422/485 w/ 2.5kv isolated

COM #2: RS232/422/485 w/ 2.5kv isolated

Audio interface: Line-out audio jack

Ethernet interface: 10/100/1000 Based-Tx Ethernet compatible

IP protection: IP66 front

Mounting: panel/wall/stand/VESA 100mm x 100mm

System with panel mounting kit w/o panel mounting hole

Power input: 12~30VDC

Power adapter: optional AC to DC power adapter (+12V, 60W)

Vibration:

– IEC 68 2-64 (w/ HDD)

– 1Grms @ sine, 5~500Hz, 1hr/axis (HDD operating)

– 2Grms @ sine, 5~500Hz, 1hr/axis (CFast operating)

– 2.2Grms @ random condition, 5~500Hz, 0.5hr/axis (non-operating)

Shock:

– IEC 68 2-27

– HDD: 20G@wall mount, half sine, 11ms

Operating temperature: -10°C to 60°C

Storage temperature: -20°C to 75°C

Operating humidity: 10%~90% relative humidity, non-condensing

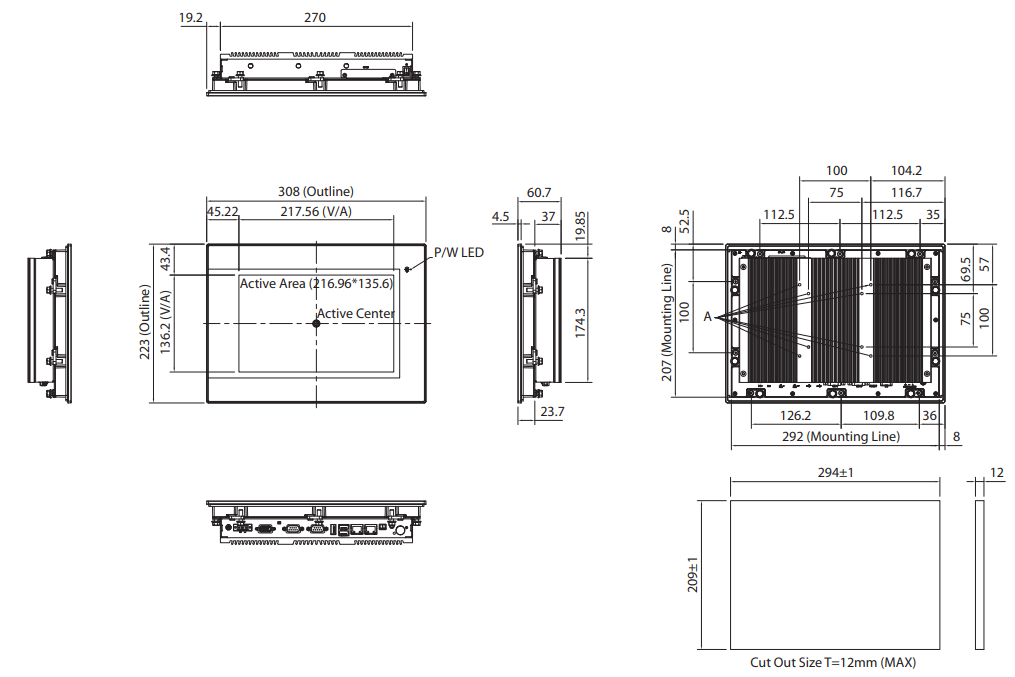

Dimension: 308 x 223 x 60.7mm

Weight: 3.7Kg

FCC class A

Windows 10 64-bit
