ICOM268 2U Rackmount Computer
- 2U 19” Industrial rackmount system
- 16.9″ Depth
- Options for 2 PCIe, 3 PCI or 5 PCIe Full height slots
- Supports Intel® 6th/7th Gen processors
- Intel® Core™, Pentium® & Celeron CPUs
- Intel® Q170 chipset. RAID 0/1
- 2 DDR4 DIMMs up to 32GB
- 3 Display Outputs: VGA, DVI-D & HDMI
- I/O: 2 LAN, 4 COM, 10 USB 3.0, 2 USB 2.0
- Windows 7, 10 Pro / IoT & Linux
- CPU Life Cycle Support Until Q2 2025
Specifications
| PROCESSOR | 7th Gen Intel® Core™/Pentium®/Celeron® LGA 1151 Processors TDP up to 65W:
Intel® Core™ i7-7700 (4 Cores, 8M Cache, up to 4.2 GHz); 65W Intel® Core™ i7-7700T (4 Cores, 8M Cache, up to 3.8 GHz); 35W Intel® Core™ i5-7500 (4 Cores, 6M Cache, up to 3.8 GHz); 65W Intel® Core™ i5-7500T (4 Cores, 6M Cache, up to 3.3 GHz); 35W Intel® Core™ i3-7101E (2 Cores, 3M Cache, 3.9 GHz); 65W Intel® Core™ i3-7101TE (2 Cores, 3M Cache, to 3.4 GHz); 35W
6th Gen Intel® Core™/Pentium®/Celeron® LGA 1151 Processors TDP up to 65W: Intel® Core™ i7-6700 (4 Cores, 8M Cache, up to 4.0 GHz); 65W Intel® Core™ i7-6700TE (4 Cores, 8M Cache, up to 3.4 GHz); 35W Intel® Core™ i5-6500 (4 Cores, 6M Cache, up to 3.6 GHz); 65W Intel® Core™ i5-6500TE (4 Cores, 6M Cache, up to 3.3 GHz); 35W Intel® Core™ i3-6101E (2 Cores, 4M Cache, 3.7 GHz); 65W Intel® Core™ i3-6101TE (2 Cores, 4M Cache, to 2.7 GHz); 35W Intel® Pentium® G4400 (2 Cores, 3M Cache, 3.3 GHz); 65W Intel® Pentium® G400TE (2 Cores, 3M Cache, 2.9 GHz); 35W Intel® Celeron® G3900 (2 Cores, 2M Cache, 2.8 GHz); 65W Intel® Celeron® G3900TE (2 Cores, 2M Cache, 2.6 GHz); 35W |

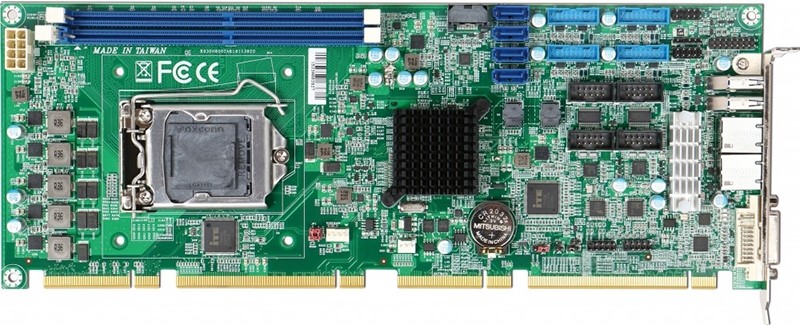

| CHIPSET | Intel® Q170 Chipset |
| MEMORY | Two 288-pin DIMM up to 32GB |
| BIOS | AMI UEFI BIOS (SPI ROM) |
| STORAGE | Supports 2 x 3.5” drive bays in removable hot-swap frames
Supports 1 x Slimline DVD Supports RAID 0/1/5/10 6 x SATA 3.0 ports (Dual ports via Backplane) |
| OPTICAL | Optional DVD±RW (±R DL) / DVD-RAM drive |
| WATCHDOG TIMER | Programmable 0.5 to 254.5 seconds intervals |

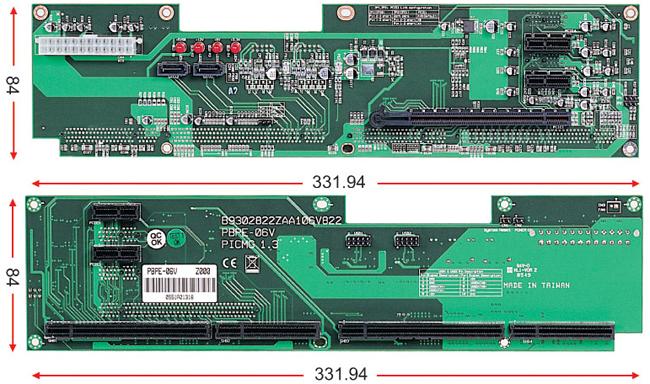

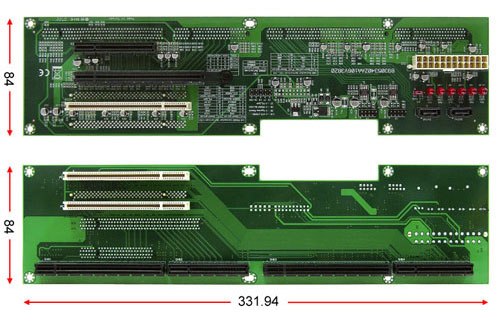

| EXPANSION SLOTS | System supports 6 slot butterfly backplanes:
Option 1: 5-slot [PCIe x16 (1), PCIe x4 (1), PCI (3)] Option 2: 5-slot [PCIe x16 (1) PCIe x1 (4)] |
| POWER SUPPLY OPTIONS | 400W ~ 600W 90~250VAC
DC 12~48V Redundant Power Supplies |
| AUDIO | Realtek ALC88-GR |
| ETHERNET | 1 x Intel® I210AT PCIe (10/100/1000Mbps)
1 x Intel® I219LM PCIe with iAMT12.0 (10/100/1000Mbps) (only Core i7/i5 supports iAMT) |
| OPERATING SYSTEMS SUPPORTED | Windows 7
Windows 10 Pro Windows 10 IoT Enterprise 64-bit Linux (Only 6th Gen supports Windows 7) |
| MULTI-DISPLAY OUTPUTS | Supports Triple Displays:
1 x VGA (through DVI-I on rear bracket); resolution up to 1920 x 1200 @ 60Hz 1 x DVI-D (through DVI-I on rear bracket); resolution up to 1920 x 1200 @ 60Hz 1 x HDMI on internal connector; resolution up to 4096 x 2160 @ 24Hz |

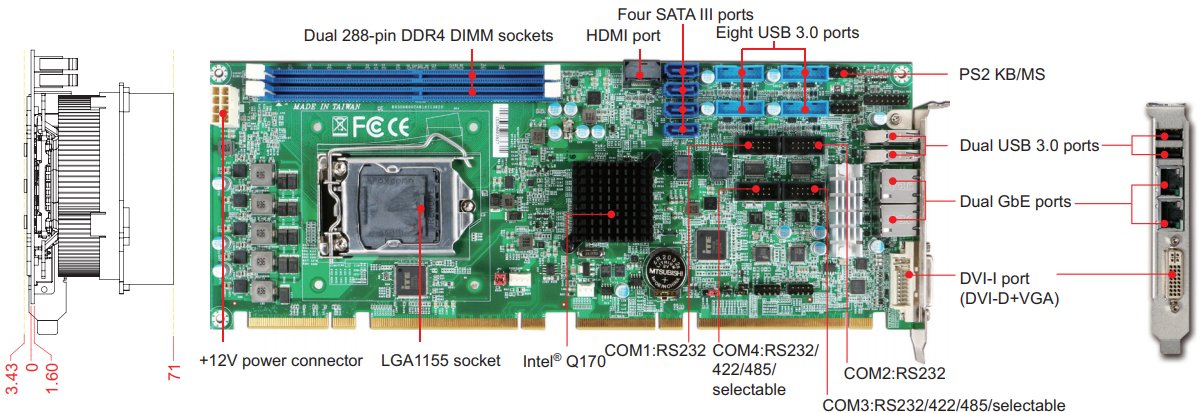

| REAR I/O PORTS | 2 x USB 3.0
2 x LAN 1 x DVI-I (DVI-D + VGA) |
| OPTIONAL PORT EXPANSION FROM SBC | 2 x RS-232 ports on pin header (2.54 mm pitch)
2 x RS-232/422/485 on pin header (selectable by BIOS; 2.54 mm pitch) 8 x USB 3.0 on pin header (2.00 mm pitch) 2 x USB 2.0 through backplane PS/2 keyboard & mouse on pin header (optional cable is required) |
| FRONT CHASSSIS CONNECTORS | 2 x USB |
| DRIVE BAYS | 2 x 3.5” SATA & 1 x 5.25” Slimline drive bays |
| MOTHERBOARD MTBF | Over 100,000 hours at 40°C |
| ENVIRONMENT | Operating temperature: 0°C to 60°C
Storage temperature: -20°C to 80°C Relative humidity: 5~90%, non-condensing (Dependant of overall system specifications) |
| COOLING | Replaceable air filter
Two 7cm ball-bearing cooling fans |
| COLOUR | Black or Silver (all other optional colours are available upon request) |
| DIMENSIONS: | 482 (W) x 429.2 (D) x 88.6 (H); 19” (W) x 16.9 (D) x 3.5” (H) |
