ICOM261 2U Rackmount Computer
- 2U 19” Industrial rackmount system
- 20.80″ Depth
- 2 PCIe & 5 PCI Low profile slots
- Supports Intel® 6th/7th Gen processors
- Intel® Core™, Pentium® & Celeron CPUs
- Intel® H110 chipset
- 2 Two DDR3L DIMMs up to 16GB
- 2 Display Outputs: VGA, DVI-I, HDMI
- I/O: 2 LAN, 6 COM, 4 USB 3.0, 6 USB 2.0
- Windows 7, 10 Pro / IoT & Linux
- CPU Life Cycle Support Until Q2 2025
Specifications
| PROCESSOR | 6th/7th Generation Intel® Core™ /Pentium®/Celeron® LGA 1151 Socket Processors with TDP up to 65W |
| CHIPSET | Intel® H110 Chipset |
| MEMORY | Two 240-pin DIMM up to 16GB
Dual Channel DDR3L 1600MHz |
| BIOS | SPI 128Mbit |
| STORAGE | Supports 2x 5.25” SATA drive bays & 2 x 3.5” drive bays
Supports 4 x SATA3.0 Optional removable hard disk drives or solid state disks |
| OPTICAL | DVD±RW (±R DL) / DVD-RAM drive |
| WATCHDOG TIMER | Programmable via S/W from 1 sec. to 255 sec. |
| EXPANSION SLOTS | Chassis supports 7 x low profile chassis expansion slots
Motherboard expansion slots: 1 x PCIe x16 (Gen 3), 1 x PCIe x4 (Gen 2), 5 x PCI |
| POWER SUPPLY OPTIONS | 400W ~ 600W
90~250VAC DC 12~48V Redundant Power Supplies |
| AUDIO | Realtek ALC888S-VD2-GR |
| ETHERNET | 1 x Intel® I211AT PCIe (10/100/1000Mbps)
1 x Intel® I219V PCIe (10/100/1000Mbps) |
| OPERATING SYSTEMS SUPPORTED | Windows 7 32/64-bit
Window 8.1 64-bit Windows 10 64-bit Linux Note: 7th Gen CPU SKU ONLY support Windows 10 64-bit & Ubuntu 16.04. |
| DISPLAY | 1 x VGA
1 x DVI-I (DVI-D signal) VGA: resolution up to 1920×1200 @ 60Hz DVI-I: resolution up to 1920×1200 @ 60Hz HDMI: resolution up to 4096×2160 @ 24Hz |
| MULTI-DISPLAY OUTPUTS | Supports Dual Displays:
VGA + DVI-I (DVI-D signal) DVI-I (DVI-D signal) + HDMI VGA + HDMI |

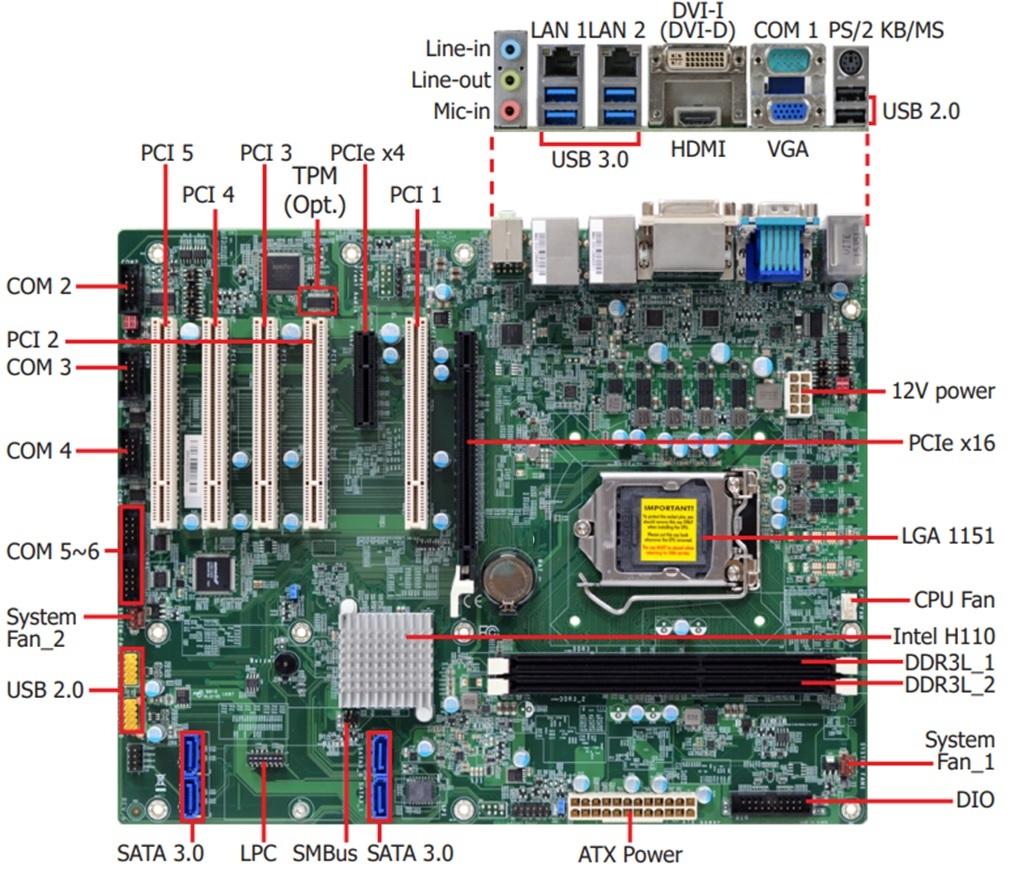

| REAR I/O PORTS | 2 x GbE (RJ-45)
1 x RS-232/422/485 (RS-232 w/power (DB-9) 4 x USB 3.0 2 x USB 2.0 1 x PS/2 (mini-DIN-6) 1 x VGA 1 x DVI-I (DVI-D signal) 1 x HDMI 1 x Line-out, 1 x Mic-in, 1 x Line-in (opt., MOQ required) |
| OPTIONAL PORT EXPANSION FROM MOTHERBOARD | 1 x RS-232/422/485 (RS-232 w/ power) (2.54mm pitch)
4 x RS-232 (2.54mm pitch) 4 x USB 2.0 (2.54mm pitch) or 2 x USB 2.0 (2.54mm pitch) + 1 x Vertical USB 2.0 (type A) (opt., MOQ required) |
| FRONT CHASSSIS CONNECTORS | 2 x USB |
| DRIVE BAYS | 2x 5.25” SATA
2 x 3.5” drive bays |
| MOTHERBOARD MTBF | 398,776 hrs @ 25°C; 231,301 hrs @ 45°C; 147,462 hrs @ 60°C
Calculation Model: Telcordia Issue 2, Method Case 3 Environment: GB, GC – Ground Benign, Controlled |
| ENVIRONMENT | Operating: 0 to 60°C Storage: -30 to 60°C with RTC Battery; -40 to 85°C without RTC Battery |
| COOLING | 2x replaceable air filters
1x 8cm cooling fan 3x 6cm optional cooling fans |
| COLOUR | Black (all other optional colours are available upon request) |
| DIMENSIONS: | 482.6 (W) x 528.3 (D) x 88.9 (H); 19” (W) x 20.8 (D) x 3.5” (H) |
Similar products
-
NES-105U Fanless System
View specifications- On board Intel® Celeron® processor J1900 quad core, 2.42GHz
- Dual Independent Display from DVI-I and HDMI
- 2 x Intel® I210AT GbE LAN ports; support WoL, teaming and PXE
- 2 x USB2.0 & 1 x USB3.0
- 4 x COM ports (COM1 & COM2 with RS232/422/485, jumper-free setting)
- 1 x interface for optional Wi-Fi/3.5G modules
- Supports -5 ~ 55 degree C extended operating temperature
- Supports 9-30VDC input
-
AES638-842 Fanless System
View specifications- End of life, not recommended for new designs
-
AES670-891 Fanless System
View specifications- LGA1151 socket 7th/6th gen Intel® Core™ i7/i5/i3 & Celeron® processors (Kaby Lake/Skylake)
- 1 DisplayPort and 2 HDMI (1 HDMI 2.0) with triple view supported
- Supports Jumbo Frame (9.5k), WoL, PXE Remote Boot, Teaming
- 9 to 36 VDC wide range power input
- Flexible I/O window design
-

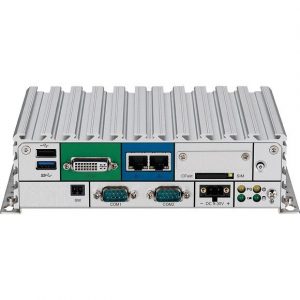

NES-105 Fanless System
