ICOM2504 2U Rackmount Computer
- 2U 19” Industrial rackmount system
- 19.29″ Dept
- 4 PCI Low profile slots
- Supports Intel® 6th/7th Gen processors
- Intel® Core™, Pentium® & Celeron CPUs
- Intel® H110 Chipset
- 2 DDR4 DIMMs up to 32GB
- 3 Display Outputs: VGA, DVI-I, DP++
- I/O: 2 LAN, 6 COM, 4 USB 3.0, 6 USB 2.0
- Windows 7, 8.1, 10 Pro / IoT & Linux
- Two hot-swappable system fans
- CPU Life Cycle Support Until Q2 2025
Specifications
| PROCESSOR | 7th Gen Intel® Core™/Pentium®/Celeron® LGA 1151 Processors TDP up to 95W:
Intel® Core™ i7-7700K (4 Cores, 8M Cache, up to 4.5 GHz); 91W (Non-LTS) Intel® Core™ i7-7700 (4 Cores, 8M Cache, up to 4.2 GHz); 65W Intel® Core™ i7-7700T (4 Cores, 8M Cache, up to 3.8 GHz); 35W Intel® Core™ i5-7500 (4 Cores, 6M Cache, up to 3.8 GHz); 65W Intel® Core™ i5-7500T (4 Cores, 6M Cache, up to 3.3 GHz); 35W Intel® Core™ i3-7101E (2 Cores, 3M Cache, 3.9 GHz); 65W Intel® Core™ i3-7101TE (2 Cores, 3M Cache, to 3.4 GHz); 35W
6th Gen Intel® Core™/Pentium®/Celeron® LGA 1151 Processors TDP up to 95W: Intel® Core™ i7-6700K (Cores, 8M Cache, up to 4.2 GHz); 91W (Non-LTS) Intel® Core™ i7-6700 (4 Cores, 8M Cache, up to 4.0 GHz); 65W Intel® Core™ i7-6700TE (4 Cores, 8M Cache, up to 3.4 GHz); 35W Intel® Core™ i5-6500 (4 Cores, 6M Cache, up to 3.6 GHz); 65W Intel® Core™ i5-6500TE (4 Cores, 6M Cache, up to 3.3 GHz); 35W Intel® Core™ i3-6101E (2 Cores, 4M Cache, 3.7 GHz); 65W Intel® Core™ i3-6101TE (2 Cores, 4M Cache, to 2.7 GHz); 35W Intel® Pentium® G4400 (2 Cores, 3M Cache, 3.3 GHz); 65W Intel® Pentium® G400TE (2 Cores, 3M Cache, 2.9 GHz); 35W Intel® Celeron® G3900 (2 Cores, 2M Cache, 2.8 GHz); 65W Intel® Celeron® G3900TE (2 Cores, 2M Cache, 2.6 GHz); 35W |
| CHIPSET | Intel® H110 Chipset |
| MEMORY | Two 288-pin Non-ECC DIMM up to 32GB
Dual Channel DDR4 2133/2400MHz |
| BIOS | Insyde SPI 128Mbit |
| STORAGE | Supports 4 x SATA 3.0
Optional removable hard disk drives or solid state disks |
| OPTICAL | DVD±RW (±R DL) / DVD-RAM drive (optional) |
| WATCHDOG TIMER | Programmable via S/W from 1 sec. to 255 sec. |
| EXPANSION SLOTS | System configuration supports 4 PCI Low Profile expansion slots
Motherboard expansion slots: |
| POWER SUPPLY OPTIONS | 400W ~ 600W
90~250VAC DC 12~48V Redundant Power Supplies |
| AUDIO | Realtek ALC888S-VD2-GR |
| ETHERNET | 1 x Intel® I211AT PCIe (10/100/1000Mbps)
1 x Intel® I219V PCIe |
| OPERATING SYSTEMS SUPPORTED | Windows 10 64-bit
Windows 7 32/64-bit Windows 8.1 64-bit Linux (Note: 7th Gen CPUs only support Windows 10 64-bit & Linux) |
| DISPLAY | 1 x VGA 1 x DVI-I (DVI-D signal) 1 x DP++ VGA: resolution up to 1920×1200 @ 60Hz DVI-D: resolution up to 1920×1200 @ 60Hz DP++: resolution up to 4096×2160 @ 60Hz |
| MULTI-DISPLAY OUTPUTS | Support Triple Displays:
VGA + DVI-I (DVI-D signal) + DP++ |

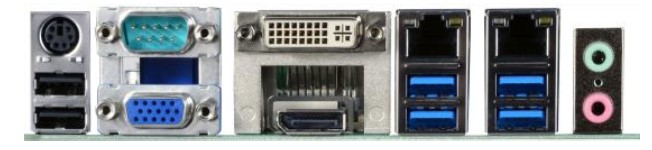

| REAR I/O PORTS | 2 x GbE (RJ-45)
1 x RS-232/422/485 (RS-232 w/power (DB-9) 4 x USB 3.0 2 x USB 2.0 1 x PS/2 (mini-DIN-6) 1 x VGA 1 x DVI-I (DVI-D signal) 1 x DP++ 1 x Line-out 1 x Mic-in 1 x Line-in (opt., MOQ required) |
| OPTIONAL PORT EXPANSION FROM MOTHERBOARD | 1 x RS-232/422/485 (RS-232 w/ power) (2.54mm pitch)
4 x RS-232 (default), 4 x RS-232 (available upon request – MOQ required) 4 x USB 2.0 (2.54mm pitch) |
| FRONT CHASSSIS CONNECTORS | 2 x USB |
| DRIVE BAYS | 1x external 3.5” drive bay for 3.5” or 2.5” drives
1x 5.25” Drive Bay |
| MOTHERBOARD MTBF | 527,696 hrs @ 25°C; 296,924 hrs @ 45°C ; 184,794 hrs @ 60°C Calculation Model: Telcordia Issue 4 Environment: GB, GC – Ground Benign, Controlled |
| ENVIRONMENT* | Operating: 0 to 60°C*
Storage: -30 to 60°C with RTC Battery; -40 to 85°C without RTC Battery |
| Relative Humidity: 5~85%, non-condensing* | |
| Vibration: 15 G 11 ms duration Non-operating: 30 G 11 ms duration* | |
| COOLING | 2x removable 7cm ball-bearing fans |
| COLOUR | Black (all other optional colours are available upon request) |
| DIMENSIONS | 482 (W) x 490 (D) x 88 (H); 19” (W) x 19.29 (D) x 3.46” (H) |
