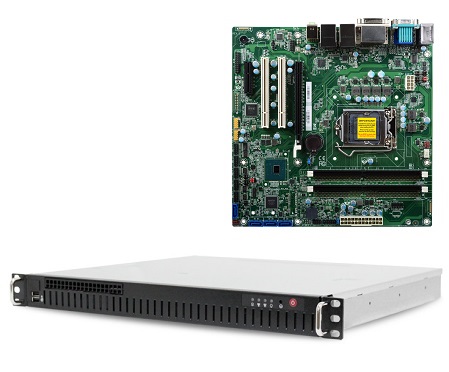

ICOM176 – 1U Rackmount System

End of Life system
Please see 1U Short Depth systems

Specifications

PROCESSOR	8th Generation Intel® Core™ /Pentium®/Celeron® LGA 1151 Socket Processors: Intel® Core™ i7-8700 (6 Cores, 12M Cache, up to 4.6 GHz); 65W Intel® Core™ i7-8700T (6 Cores, 12M Cache, up to 4.0 GHz); 35W Intel® Core™ i5-8500 (6 Cores, 9M Cache, up to 4.1 GHz); 65W Intel® Core™ i5-8500T (6 Cores, 9M Cache, up to 3.5 GHz); 35W Intel® Core™ i3-8100 (4 Cores, 6M Cache, 3.6 GHz); 65W Intel® Core™ i3-8100T (4 Cores, 6M Cache, to 3.1 GHz); 35W Intel® Pentium® G5400 (2 Cores, 4M Cache, 3.7 GHz); 58W Intel® Pentium® G5400T (2 Cores, 4M Cache, 3.1 GHz); 35W Intel® Celeron® G4900 (2 Cores, 2M Cache, 3.1 GHz); 54W Intel® Celeron® G4900T (2 Cores, 2M Cache, 2.9 GHz); 35W9th Generation Intel® Core™ LGA 1151 Socket Processors: Intel® Core™ i7-9700TE (8 Cores, 12M Cache, up to 3.8 GHz); 35W Intel® Core™ i5-9500E (6 Cores, 9M Cache, up to 4.2 GHz); 65W Intel® Core™ i5-9500TE (6 Cores, 9M Cache, up to 3.6 GHz); 35W Intel® Core™ i3-9100E (4 Cores, 6M Cache, 3.7 GHz); 65W Intel® Core™ i3-9100TE (4 Cores, 6M Cache, to 3.2 GHz); 35W
CHIPSET	Intel® H310 Chipset
MEMORY	Two 288-pin Non-ECC DIMM up to 64GB Dual Channel DDR4 2400/2666MHz
BIOS	SPI 128Mbit
STORAGE	Supports 2 x 3.5” internal drive bays
OPTICAL	Optional Slimline DVD±RW (±R DL) / DVD-RAM drive
WATCHDOG TIMER	Programmable via S/W from 1 sec. to 255 sec.
EXPANSION SLOTS	Option 1: 1 x Full height PCIe Option 2: 1 x Full height PCI
POWER SUPPLY OPTIONS	150w to 350w, 90~250VAC DC 12~48V
AUDIO	Realtek ALC888S-VD2-GR
ETHERNET	1 x Intel® I211AT PCIe (10/100/1000Mbps) 1 x Intel® I219V PCIe (10/100/1000Mbps)
OPERATING SYSTEMS SUPPORTED	Windows 10 Pro 64-bit Windows 10 IoT Enterprise 64-bit Linux
DISPLAY	1 x VGA: resolution up to 1920×1200 @ 60Hz 1 x DVI-I (DVI-D signal): resolution up to 1920×1200 @ 60Hz 1 x DP++: resolution up to 4096×2304 @ 60Hz
MULTI-DISPLAY OUTPUTS	VGA + DVI-D / VGA + DP++ / DP++ + DVI-D
REAR I/O PORTS	2 x GbE (RJ-45) 1 x RS-232/422/485 (RS-232 w/power (DB-9) 4 x USB 3.1 Gen 1, 2 x USB 2.0 1 x PS/2 (mini-DIN-6) 1 x VGA, 1 x DVI-I (DVI-D signal), 1 x DP++ 1 x Line-out, 1 x Mic-in, 1 x Line-in (opt.) (MOQ required)
OPTIONAL PORT EXPANSION FROM MOTHERBOARD	1 x RS-232/422/485 (RS-232 w/ power) (2.54mm pitch) 4 x RS-232 4 x USB 2.0 (2.54mm pitch)
FRONT CHASSSIS CONNECTORS	2 x USB
DRIVE BAYS	2 x 3.5” SATA drive bays 1 x Slimline optical bay
MOTHERBOARD MTBF	535,676 hrs @ 25°C; 352,865 hrs @ 40°C ; 303,603 hrs @ 45°C ; 189,856 hrs @ 60°C Calculation Model: Telcordia Issue 4 Environment: GB, GC – Ground Benign, Controlled
ENVIRONMENT	Operation Temperature: 0~60 °C Storage Temperature: -20~85 °C Relative Humidity: 5~90%, non-condensing (Dependent on overall system specifications)
VIBRATION	5~7 Hz: 0.5” double amplitude displacement 7~2000 Hz: 1.5g acceleration
COOLING	Front : 1 x 97mm blower Options : 3 x 40x20mm fans, 3 x 40x28mm fans, 2 x 40x56mm fans
COLOUR	Black (all other optional colours are available upon request)
DIMENSIONS:	482.6 (W) x 381 (D) x 44.4 (H); 19” (W) x 15” (D) x 1.75” (H)
