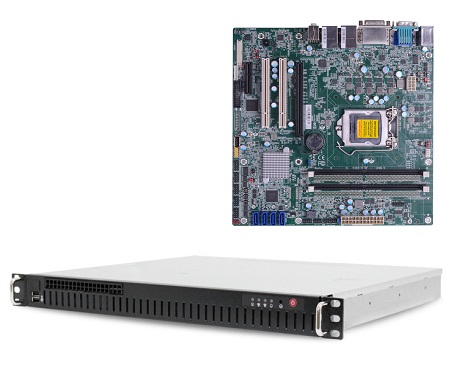

ICOM169 – 1U Rackmount System
- End of Life system
- Please see 1U Short Depth systems
Specifications
| PROCESSOR | 6th/7th Generation Intel® Core™ /Pentium®/Celeron® LGA 1151 Socket Processors with TDP up to 65W |
| CHIPSET | Intel® H110 Chipset |
| MEMORY | Two 288-pin Non-ECC DIMM up to 32GB
Dual Channel DDR4 2133/2400MHz |
| BIOS | SPI 128Mbit |
| STORAGE | Supports 2 x 3.5” internal drive bays |
| OPTICAL | Optional Slimline DVD±RW (±R DL) / DVD-RAM drive |
| WATCHDOG TIMER | Programmable via S/W from 1 sec. to 255 sec. |
| EXPANSION SLOTS | Option 1: 1 x Full height PCIe
Option 2: 1 x Full height PCI |
| POWER SUPPLY OPTIONS | 150w to 350w
90~250VAC DC 12~48V |
| AUDIO | Realtek ALC888S-VD2-GR |
| ETHERNET | 1 x Intel® I211AT PCIe (10/100/1000Mbps)
1 x Intel® I219V PCIe |
| OPERATING SYSTEMS SUPPORTED | Windows 10 64-bit
Windows 7 32/64-bit Windows 8.1 64-bit Linux (Note: 7th Gen CPUs only support Windows 10 64-bit & Linux) |
| DISPLAY | 1 x VGA 1 x DVI-I (DVI-D signal)1 x DP++ VGA: resolution up to 1920×1200 @ 60HzDVI-I: resolution up to 1920×1200 @ 60Hz DP++: resolution up to 4096×2160 @ 60Hz |
| MULTI-DISPLAY OUTPUTS | VGA + LVDS VGA + DVI-I (DVI-D signal) VGA + DP++ LVDS + DVI-I (DVI-D signal) LVDS + DP++ DVI-I (DVI-D signal) + DP++ |
| REAR I/O PORTS | 2 x GbE (RJ-45)
1 x RS-232/422/485 (RS-232 w/power (DB-9) 4 x USB 3.0 2 x USB 2.0 1 x PS/2 (mini-DIN-6) 1 x VGA 1 x DVI-I (DVI-D signal) 1 x DP++ 1 x Line-out, 1 x Mic-in, 1 x Line-in (opt., MOQ required) |
| OPTIONAL PORT EXPANSION FROM MOTHERBOARD | 1 x RS-232/422/485 (RS-232 w/ power) (2.54mm pitch)
4 x RS-232 (2.54mm pitch) 2 x USB 3.0 (2.00mm pitch) 1 x Vertical USB 2.0 (type A) |
| FRONT CHASSSIS CONNECTORS | 2 x USB |
| DRIVE BAYS | 2 x 3.5” SATA drive bays
1 x Slimline optical bay |
| MOTHERBOARD MTBF | 365,364 hrs @ 25°C; 207,523 hrs @ 45°C; 131,395 hrs @ 60°C Calculation Model: Telcordia Issue 2, Method Case 3 Environment: GB, GC – Ground Benign, Controlled |
| ENVIRONMENT | Operation Temperature: 0~60 °C
Storage Temperature: -20~85 °C Relative Humidity: 5~90%, non-condensing (Dependent on overall system specifications) |
| VIBRATION | 5~7 Hz: 0.5” double amplitude displacement
7~2000 Hz: 1.5g acceleration |
| COOLING | Front : 1 x 97mm blower
Options : 3 x 40x20mm fans, 3 x 40x28mm fans, 2 x 40x56mm fans |
| COLOUR | Black (all other optional colours are available upon request) |
| DIMENSIONS: | 482.6 (W) x 381 (D) x 44.4 (H); 19” (W) x 15” (D) x 1.75” (H) |
