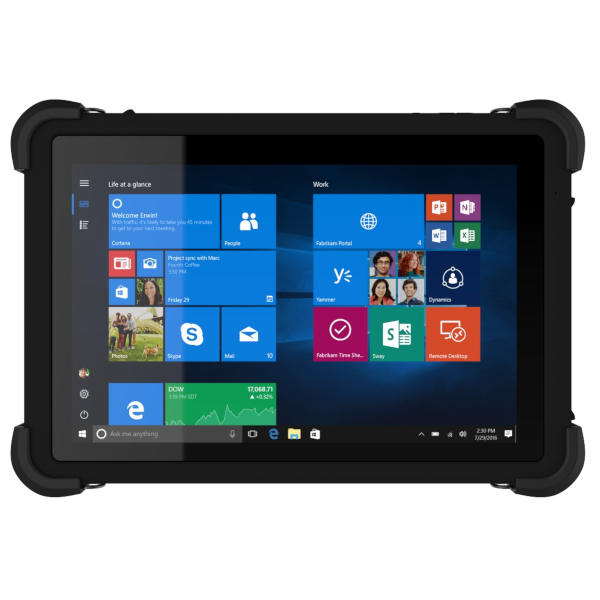

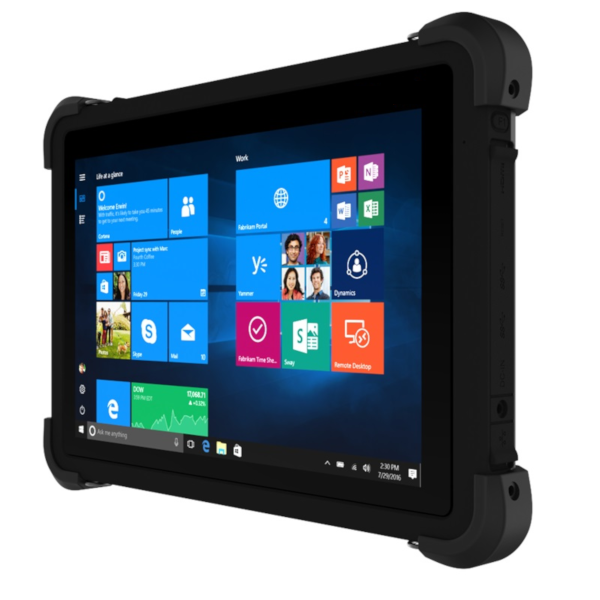

Specifications
| DIMENSIONS | 11.16″ W x 7.56″ H x 0.87″ D (283.4mm W x 192mm H x 21.9mm D) |
| DISPLAY | 10.1″ sunlight-viewable diagonal widescreen, 1920W x 1200H IPS; 470 nits |
| TOUCH PANEL | 10-point Multi Touch Capacitive |
| SCREEN PROTECTION | Oleophobic, scratch-resistant glass |
| WEIGHT | 2.97 lb. (1.35kg) – base configuration |
| IP RATING | IP65 Sealing (water and dust) |
| DROP / SHOCK PROTECTION | MIL-STD 810G, 516.6 IV 26 drops to 1 operating unit on to plywood over concrete from 5 feet |
| OPERATING TEMPERATURE | 14° F to +122° F (-10° C to +50° C) |
| STORAGE TEMPERATURE | -4° F to +140° F (-20° C to +60° C) |
| HUMIDITY | 95% non-condensing |
| PROCESSOR | Intel® Atom Quad Core X5-Z8550; 1.44-2.4GHz |
| SYSTEM MEMORY | 4GB LPDDR3-1600 RAM |
| STORAGE | 128GB eMMC |
| OPERATING SYSTEM | Windows® 10 Professional 64-bit |

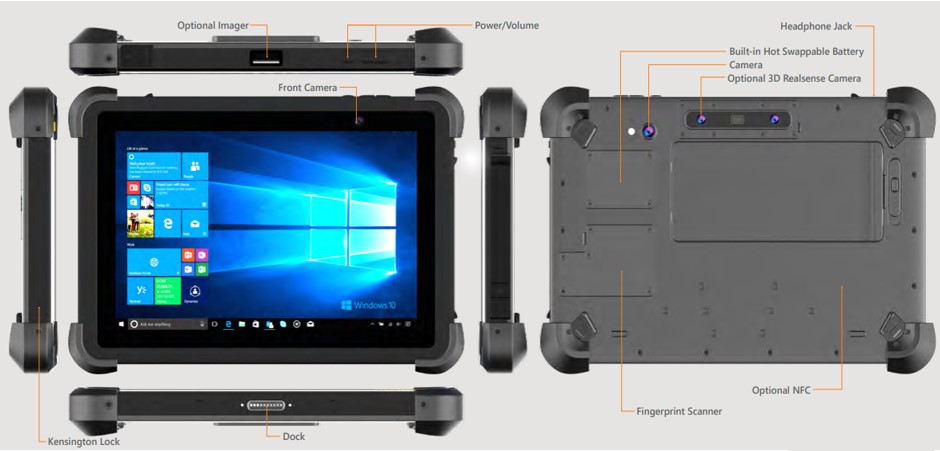

| BUTTONS | Barcode scan (Scanner IMG model); Function Power; Volume +/- |
| IO PORTS | USB2.0 & USB3.0
HDMI Type D (Micro) 3.5mm Aux Power – DC Barrel Jack Standard SIM Card Slot (2FF) MicroSD Slot Ethernet |
| BATTERY | 3.7V, 10,800mAh, 40Wh
Up to 10hr battery life, hot swappable |
| AUDIO | Intel HD audio, built-in digital microphone |
| CAMERA | 8MP auto focus w/ flash (rear-facing), 2MP (front-facing) |
| BARCODE READER | Optional: High performance 2D barcode scanner |
| SENSORS | 9 Axis MEMS sensor (gravity acceleration, eCompass, gyroscope) Ambient light sensor, proximity sensor |
| APPROVALS | FCC Class B , FCC/SAR, cUS, CE, CB, TUV |
| WLAN | Intel Wireless-AC 9260 (2.4/5.0Ghz) (a/b/g/n/AC) |
| BLUETOOTH | BT4.0 |
| GPS | Included GPS |
| SECURITY | TPM 2.0 Firmware |
| 4G LTE | Optional 4G LTE module |
| NFC | Optional NFC |
| PART NUMBERS | TBL1150W: Tablet specifications as per above
TBL1150W-IMG: Tablet specifications as per above, with integrated 2D Barcode Scanner |
| WARRANTY | Three year return to base warranty as standard
Option to enhance warranty to cover accidental damage |
| VEHICLE MOUNTING OPTIONS | Powered Forklift/Vehicle Dock – Includes: USB (2), RS232 (2), VGA (1), Audio – Speaker & Mic, Ethernet (1), DisplayPort (1), HDMI (1) ports
RAM D Ball Mount For Back Of Dock RAM D Size Standard Double Socket Arm – RAM Clamp Base With 4″ Max Width And 2.25″ D Ball Barrel Jack to Converter, Long Cord (10ft) 11-27V DC/DC Power Converter & Direct Wire Kit |
| OFFICE DOCK OPTIONS | Powered Office Dock – includes: USB (2), RS232 (2), VGA (1), Audio – Speaker & Mic, Ethernet (1), DisplayPort (1), HDMI (1) ports
AC/DC Adapter without Power Cord (required) – North America/European/Australian |
| WALL MOUNTING & DESK MOUNTING OPTIONS | Standard Wall Mount (C Sized RAM Ball)
Standard Wall Mount – Amps pattern Six Hole Standard Wall Mount Clamping Base Ideal for Square Posts Up to “4 RAM C Ball Mount For Back Of Dock RAM D Ball Mount For Back Of Dock Snap Mount – Extra Heavy Duty (includes C size RAM ball) Snap Mount – Extra Heavy Duty (includes D size RAM ball) Display Stand Office Desk Stand VESA-Mount Plate, Short Snap Rail to plate with 75 or 100mm square VESA pattern |
| REPLACEMENT PARTS & ACCESSORIES | Multi-Battery Charger (includes power cord), Additional Battery, Briefcase Handle, Hand strap, Auto Charging Adapter, Stylus, Stylus Tether, Stylus with Stylus Tether, Snap Mount Rail, Snap Mount Rail- Long, Screen Protector, Anti-Glare Screen Protector |
Downloads
Similar products
-

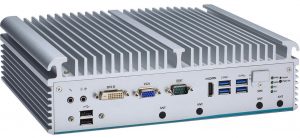

AES671-517 Fanless System
