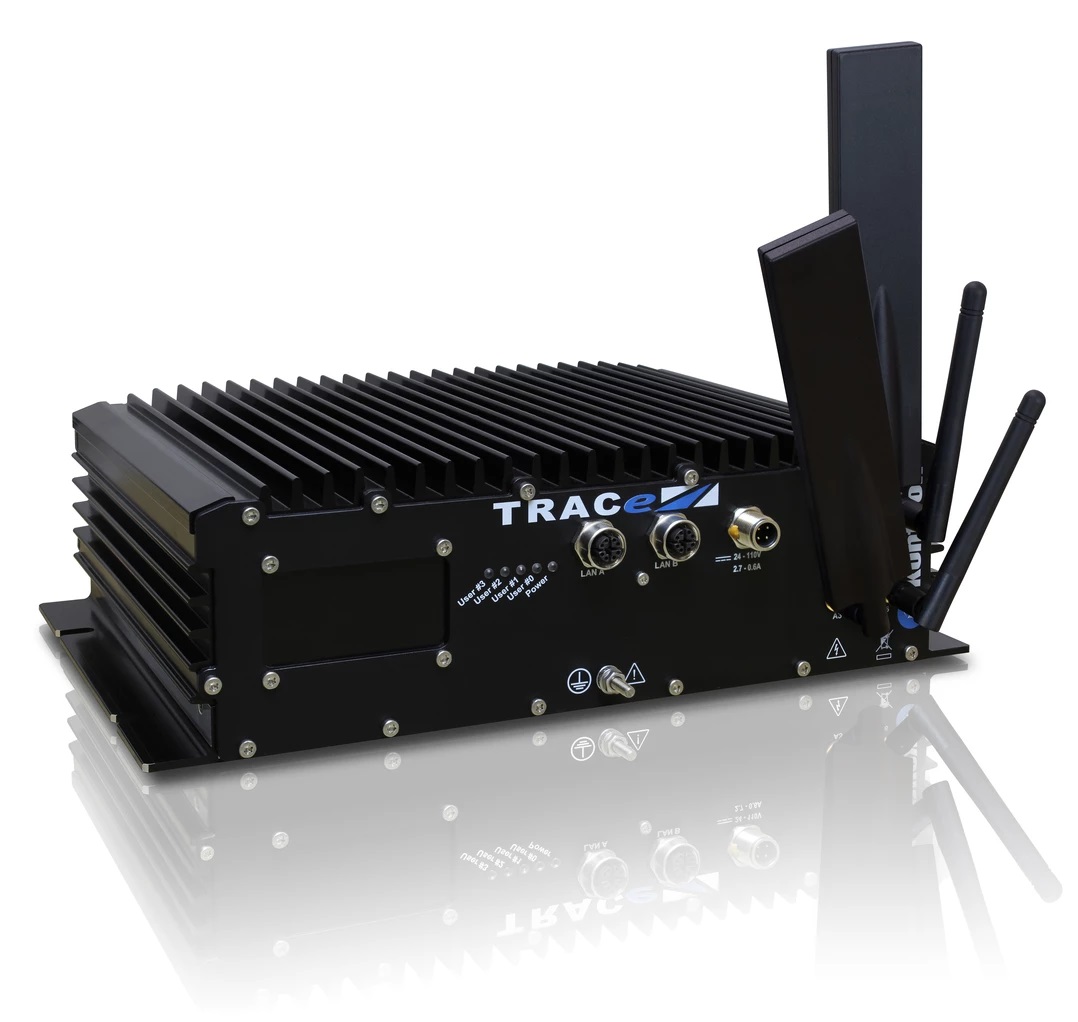

SR-TRACe-G40x – Transportation Computer
- EN50155 multi network rail computer (LTE, Wi-Fi, GNSS, Wired ETH)
- Powered by Kontron SEC-Line (hardened openWRT hypervisor) and remote fleet management tool
- Fast and secure deployment of network centric edge applications
- Cryptorouter/firewall protection of edge application & IoT stacks
- Secure routing and filtering layer, with autonomous counter-measures (HIDS)
- OpCenter console for fleet level management
Description
EN50155 MOBILE FANLESS SERVER/ROUTER GATEWAY FOR SMART RAIL APPLICATIONS
Kontron SR-TRACe-G40x edge data processing router/server gateway uniquely combines a field-proven multi-network (LTE, Wi-Fi, GNSS, Wired Ethernet) EN50155 rail computer with Kontron SEC-Line, an innovative approach to delivering data-center grade processing and networking to rolling stock which answers major challenges of smart transportation projects such as digital independence, security and connectivity, tampering detection, control and monitoring, hardware consolidation, agility and time-to-market.
Powered by Kontron SEC-Line, SR-TRACe operates under an hardened Linux OpenWRT based hypervisor, which can securely deploy unmodified legacy applications and OSes in VM(s) thanks to numerous innovative technologies.The OpCenter console simplifies the remote management of large computer fleets from a single on-premises point of control.
Learn more about SEC-Line here.
Specifications
| PROCESSORS | Intel® Core™ i7-6600U, Core™ i3-6100U or Intel Atom® E3940 |
| MEMORY | 8 GByte up to 24 GByte depending on processor |
| STORAGE | up to 8 TByte using two 2.5” drives |
| INGRESS PROTECTION | IP50, Optional IP54 |
| OPERATING TEMPERATURE | -40 °C to +55 °C EN50155 Class OT2 by default On request : -40 °C to +70 °C +10 min@ 85°C EN50155 Class OT4/ST1 |
| DIMENSIONS (W x D x H) | 273 without ears (300 with ears) x 190 x 87 mm |
| OPTIONS | Additional LTE modem (dual SIM support), Insulated Digital Inputs / Outputs, up to 2x insulated RS232/422/488 |
| STANDARDS | EN50155 (including EN 50121-3-2, EN 61373, EN60068), EN 50155 power Class S2 (10ms holdup), EN45545-2 (Fire protection on railway vehicles), CE / FCC part 15, RoHS |
| LONG RANGE NETWORKING (LTE/4G/3G) | Cat. 6 modem (300 Mb/s download, 50 Mb/s upload) with DC-HSPA+ HSPA+ HSPA UMTS fallback – 2×2 MIMO support Muliple bands supported – LTE: 1,2,3,4,5,7,8,12,13,20,25,26,29,30,41 – DC-HSPA+ HSPA+ HSPA UMTS: 1,2,3,4,5,8 |
| POSITIONING | GPS, GLONASS, BeiDou, and Galileo |
| SHORT RANGE NETWORKING | WIFI: IEEE802.11 ac/a/b/g/n with overall throughput up to 867 Mb/s – 2×2 MIMO support – Supports 2.4 GHz and 5 GHz bands Enhanced wireless security supporting 64/128-bits WEP, WPA, WPA2, 802.1X WIRED ETHERNET: 2x independent Gigabit Ethernet on M12 connectors |
| ROUTING/FIREWALLING | Based on OpenWrt last stable release managed through HTTPS, SSH and SNMPv3 All network interfaces, WiFi, 4G/LTE and ETH VLAN, bridging, firewall, load balancing, QoS, GRE, IPSec, OpenVPN… |
| VIRTUALISATION | Easy setup and run of Virtual Machine based on existing embedded OS (linux 64bit) or 3rd party appliances (turn key VM images) |
| SECURE BOOT | Only boots Kontron signed software |
| HW ROOT-OF-TRUST | All passwords, encryption keys and certificates within TPM |
| MEASURED BOOT | Using TPM hashing mechanism allows Remote attestation |
| CONTAINERISATION | Containerisation of services with cgroup technology |
| MONITORING ACCESS CONTROL | AppArmor restricts software to only known usage patterns, serioutsly limiting the impact of exploits |
| HOST INTRUSION DETECTION SERVICE | OSSEC can autonomously reacts to intrusions detections; avoiding most brute force attempts |
| CONTINUOUS SECURITY | VULNERABILITY WATCH SOFTWARE UPDATES: SEC-Watch service : continuous analysis of the CVEs versus the deployed code base Functional and security patches at least once per year |
