TRACe-B40x-TR – Transportation Computer
- Fanless, small size, rugged railway computer for rolling stock applications
- Intel® Atom™ E3900 series or 6th Gen Intel® Core™i7/i3
- Easy customization to match any rolling stock application requirements
- IP50 Ingress Protections from all directions, optional IP54
- Available as Server / Router powered by Kontron SEC-Line : secure openWRT hypervisor and Opcenter remote fleet management tool
Description
EN50155 COMPACT RUGGED FANLESS COMPUTER
Kontron TRACe B40x-TR is an EN50155 compliant fanless railway computer, specifically designed for rolling stock application where high processing capacity, low consumption, robustness and small size are requested to match your system requirements. Kontron TRACe B40x-TR is robust and very compact, providing high performance and high reliability in demanding railway environments.
Its scalable and modular design enable customers to build and evaluate a specific configuration matching their application requirements in a record time.
When powered by Kontron SEC-Line option, TRACe-B40x-TR operates under OpenWRT based hypervisor, which can securely deploy unmodified legacy applications and OSes in VM(s) thanks to numerous innovative technologies.The OpCenter console simplifies the remote management of large computer fleets from a single on-premises point of control
Learn more about SEC-Line here.
Specifications
| PROCESSOR | Intel Atom® x5-E3940 quad-core @ 1.6 GHz, 2 MByte L2 Cache Other supported confi gurations: Intel Atom® x5-E3930 dual-core @ 1.3 GHz , 2 MByte L2 Cache Intel Atom® x7-E3950 quad-core @ 1.6 GHz, 2 MByte L2 Cache Intel® Core™ i7-6600U (dual-core @ 2.6 GHz), 4 MByte SmartCache Intel® Core™ i3-6100U (dual-core @ 2.3 GHz , 3 MByte SmartCache |
| MEMORY AND FL ASH | 8 GByte DDR4 memory-down for Core™ i7/i3 variants, 8 GByte DDR3L for Intel Atom® E39xx variants 32 GByte SLC eMMC soldered Flash |
| MASS STORAGE | 2 SATA connections –for 2.5 inch HDD or SSD |
| GRAPHICS CONTROLLER | Integrated Intel® HD Graphics 520, Display Port / 4096×2304 @ 60 Hz for Core™ i7/i3 variants Integrated Intel® HD Graphics 500, Display Port / 4096×2304 @ 60 Hz for Intel Atom® E3930 and E3940 Integrated Intel® HD Graphics 505, Display Port / 4096×2304 @ 60 Hz for Intel Atom® E3950 |
| OPERATIONAL PLATE | 1x DC-IN on M12 A-coded connector (1.5 kV insulation) 2x Ethernet 10/100/1000 Mb/s, M12 8-pin-Female connectors (1.5 kV insulation) 1x Power Led, 4x User Leds |
| MAINTENANCE PLATE | 1 Serial Port 1x USB 3.0/2.0 , 1x USB 2.0 1 Display Port 2 User Leds, 1 Power Led, 1 Alarm Led, 1 Sys Led |
| POWER SUPPLY | Input Voltage Ultra Wide Range 24 VDC … 110 VDC (Class S2-C1, 10ms interruption) |
| EXTENSIONS | 3x Mini PCI Express® sockets (USB 2.0, PCIe or USB 3.0 available) 2x SIM card holders (Dual SIM support) 1x mSATA slot (shared with one 2.5” SATA) Additional DDR4 (+8 or +16 GByte) for Core i3/i5/i7 variants only |
| PROTECTION CLASS | IP50 (default). Optional IP54 or IP65 |
| OPERATING TEMPERATURE | -40 °C up to +70 °C +10 min@ 85 °C EN50155 Class OT4 S1, depending on configuration |
| STORAGE TEMPERATURE DIMENSIONS (W x D x H) | -40 °C up to 85 °C |

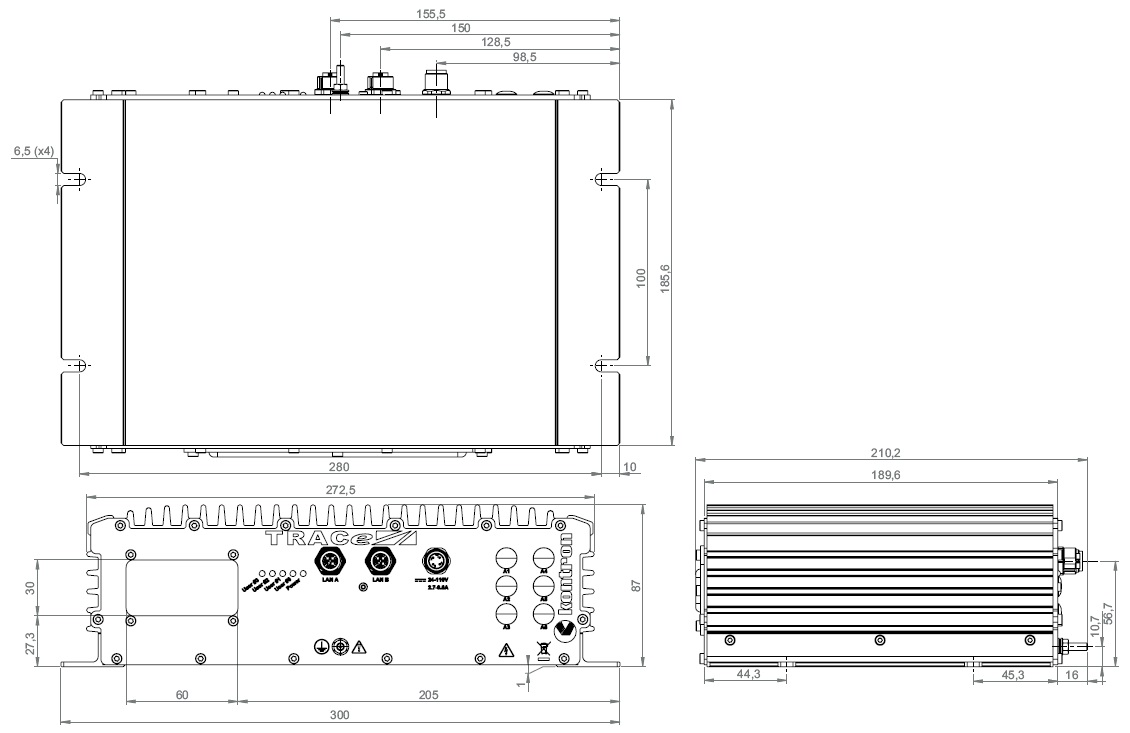

| DIMENSIONS (W x D x H) | Approx 273 mm without ears (300 mm with ears) x 190 mm x 87 mm |
| OPERATING SYSTEM | Pre-installed Linux Fedora (default), Windows 10 IoT Enterprise LTSB |
| OPTIONS (ON REQUEST) | Industrial Grade SSDs (64 GByte to 2 TByte) or mSATA, Wi-Fi, LTE, GNSS, RS422/485, Audio, 8x Digital Inputs + 8x Digital Outputs, Dual CAN2.0B, MVB. Contact us for more information. |
| STAND ARDS APPROVAL | EN50155, EN45545-2, CE, FCC part 15 class A |
