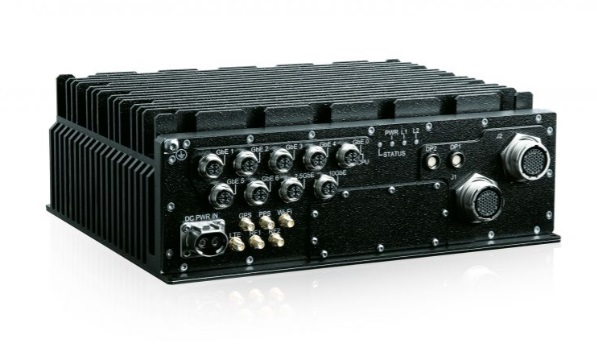

EvoTRAC-S1901 – In-Vehicle Computers
- ComExpress Intel® High Performance Processor
- Expansion slots for multiple GPU, FPGA accelerators, or video modules
- Multiple I/O high speed interfaces and high capacity storage options
- Wireless connectivity options for cellular and wifi
- Ruggedized & modular platform for in-vehicle deployment
Description
INTELLIGENT HIGH-PERFORMANCE PLATFORM FOR HEAVY-DUTY MACHINERY
The EvoTRAC-S1901 System Platform features the latest in Intel high performance processor and is designed to meet the future needs of in-vehicle for Artificial Intelligence, Deep Leaning and HPEC by providing multiple GPU or Accelerator card options. Built to accelerate the deployment of demanding applications for heavy-duty mobile machinery in construction, agriculture, trucking and mining industries, the compact platform’s flexibility is unmatched. In a single IP67 enclosure, it includes high speed I/O options such as 10GbE (cooper or fiber), USB 3.0, FAKRA connectors for RF and rich camera Interfaces. Storage capacities are met using M.2 NVME slots or high capacity 2.5″ SSD slots (fixed or removable). Stay connected with the platform’s optional WiFi and/or LTE cellular modem features.
Specifications
| CPU | COMe-bBD7R E2 Intel® Xeon® D-1539, 8 Cores, 1.6 GHz |
| OPTIONAL CPU | COMe-bBD7R E2 Intel® Xeon® D-1559, 12 Cores, 1.5 GHz |
| POWER | 9-36 Vdc 150 W Optional: 9-36 Vdc 250 W, 24-36 Vdc 500 W |
| MEMORY | Up to 64 GByte of DDR4 (2x DDR4 DIMM with ECC ) |
| COOLING* | Fanless Optional: Fan cooled or liquid cooled |
| TEMPERATURE | -30 °C to +55 °C Extended temperature*: -40 °C + 71 °C |
| INGRESS PROTECTION | IP67 |
| ETHERNET PORTS | 7x 10/100/1000 Mbit/s 1x 1000/2500 Mbit/s 1x 10 GbE PTP/1588 with 1PPS, GPS IEEE 802.3-2012 Power-over-Ethernet (Option) |
| STORAGE | Removable 2.5” drives Optional: 2x M.2 2230/2280/22110-M |
| EXPANSION | 1x M.2 3042-B (LTE, or others) 2x mPCIe full length (WiFi/Bluetooth, Frame grabber, or others) |
| OPTIONAL MXM GPU** | 2x MXM port (Type A & B) T1000, 2.2 Tflops (FP32) RTX3000, 5.3 Tflops (FP32) Others: Project-Based |
| USB | 1x USB (3.0) 3x USB (2.0) |
| SERIAL | 4x RS232 2x RS485 or RS232 2x RS485/422 4x CAN-FD (Optional) |
| AUDIO | 2x balanced Audio In 2x balanced Audio Out |
| DISCRETES | 12x digital Input 12x digital Output |
| OPERATING SYSTEM | Linux Ubuntu 18.04 LTS, 64-Bit (installed) |
| SPECIAL FEATURES | 9-axis IMU 4x CANBus 2.0 FD (Option) Safety Processor Aurix TC387 MCU with 4x CANbus 2.0 FD (Option) |
| * Depending on processor and payload configuration ** Operating temperatures may vary based on the selected GPU(s), power supply unit and/or cooling options. |
|
