PPC2021 – Panel PCs
- 8.4″ XGA Panel PC
- Intel® Celeron® J1900 processor
- 5-wire Resistive Touch screen

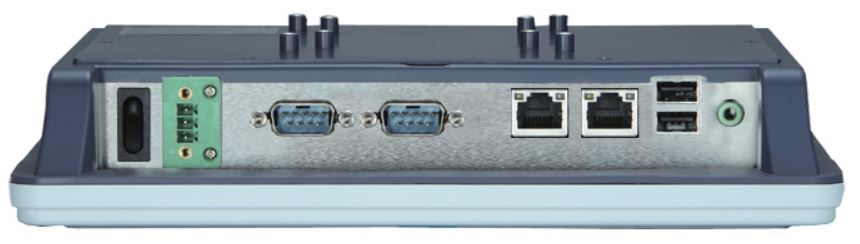

- IO: 2 LAN/HDMI/COM/USB3.0
- 1 x mSATA, 1 x CFast
- Supports up to 8GB DDR3L memory
- IP65 compliant front panel
- Panel/wall/stand/VESA mounting
- 9~36V DC or AC input
- Supports Windows 7 & Windows 10
Specifications
| PANEL | 8.4″ SVGA TFT LCD with LED backlight
350 nits 800 x 600 |
| PROCESSOR | Intel® Celeron® processor J1900 |
| CHIPSET | SoC integrated |
| SYSTEM MEMORY | 1 x 204-pin DDR3L-1600 SO-DIMM, up to 8GB |
| BIOS | AMI |
| COM | 2 x RS-232/422/485 (default RS-232) |
| USB | 2 x USB 3.0 |
| ETHERNET | 2 x 10/100/1000 Mbps (Intel® i211AT) |
| DISPLAY | N/A |
| AUDIO | 1 x Audio (Line-out) |
| STORAGE | 1 x CFast™ or mSATA |
| EXPANSION | 1 x Full-size PCI Express Mini Card slot with mSATA
1 x Full-size PCI Express Mini Card slot with SIM |
| OTHERS | Built-in WLAN antenna |
| TOUCHSCREEN | 5 wire resistive touch |
| FRONT BEZEL | IP65, NEMA 4 rugged protection, plastic front bezel |
| POWER SUPPLY | DC version: 9 to 36 VDC with over-current protection fuse
AC version: 100 to 240 V AC-DC, 60W power adapter |
| POWER CONSUMPTION | 25W |
| WATCHDOG TIMER | 255 levels, 0 to 255 sec. |
| OPERATING TEMPERATURE | DC version: 9 to 36 VDC with over-current protection fuse
AC version: 100 to 240 V AC-DC, 60W power adapter |
| RELATIVE HUMIDITY | 20% to 90% @ +40°C; non-condensing |
| VIBRATION | 2G, 5 to 500Hz, random for CFast™ |
| DIMENSIONS (W X D X H) | 250.7 x 45.8 x 204.7 mm (9.87″ x 1.80″ x 8.06″) |
| WEIGHT (NET/GROSS) | 1.3 kg (2.87 lb)/ 2.25 kg (4.96 lb) |
| CERTIFICATIONS | CE |
| OS SUPPORT | Windows® 10, Windows® 8.1, WE8S, Windows® 7, WES 7 |
| MOUNTING | Panel mount kit
Wall mount kit Stand kit VESA arm |
| PART NUMBERS | PPC2021: 8.4″ SVGA fanless touch panel computer with Intel® Celeron® processor J1900, 5-wire resistive touch screen, AC-DC 60W power adapter (screw type connector) and EMI class B
PPC2021-01: 8.4″ SVGA fanless touch panel computer with Intel® Celeron® processor J1900, 5-wire resistive touch screen and 9 to36 VDC power input (terminal block connector) |
| OPTIONS | Wi-Fi + Bluetooth kit
Stand kit RFDI kit |
