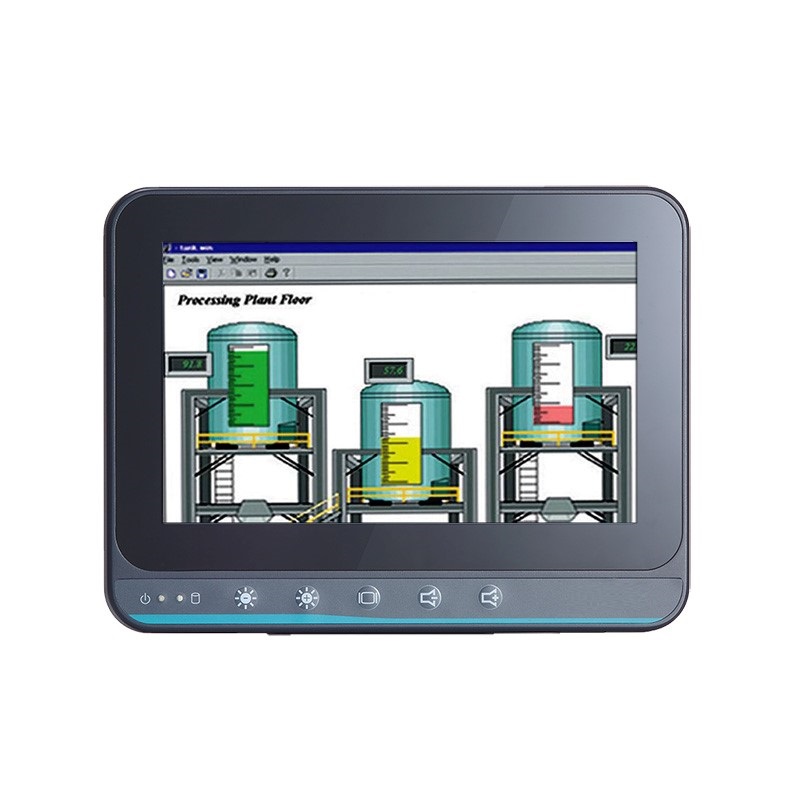

PPC2012 – Panel PCs
- 7.0″ SVGA fanless Panel PC
- Intel® N3350 or N4200 processor
- Projected capacitive multi-touch

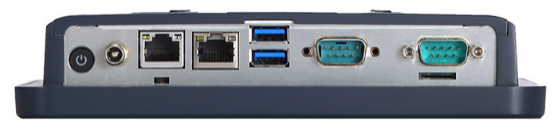

- IO: 2 LAN/COM/USB3.0 & USB2.0
- 1 x 2.5” SSD bay, 1 x M.2
- Supports up to 8GB DDR3L memory
- IP65 compliant front panel
- Panel/wall/stand/VESA mounting
- 9~24V DC input, optional AC adapter
- Supports Windows 10 OS
Specifications
| PANEL | 7″ WSVGA TFT LCD
320 nits 1024 x 600 pixels |
| PROCESSOR | Intel® Celeron® processor N3350 up to 2.40 GHz
Intel® Pentium® Processor N4200 up to 2.5 GHz |
| CHIPSET | SoC integrated |
| SYSTEM MEMORY | 1 x 204-pin DDR3L-1600 SO-DIMM, up to 8GB |
| BIOS | AMI |
| COM | 1 x RS-232/422/485
1 x RS-232 |
| USB | 2 x USB 3.0 |
| ETHERNET | 2 x 10/100/1000 Mbps |
| DISPLAY | N/A |
| AUDIO | N/A |
| STORAGE | 1 x mSATA (default storage)
1 x MicroSD card |
| EXPANSION | 1 x M.2 Key E for wireless module
1 x Full-size PCI Express Mini Card slot |
| OTHERS | 1 x Screw type connector for power
1 x Power button 1 x AT/ATX switch |
| TOUCHSCREEN | Projected capacitive multi-touch |
| FRONT BEZEL | IP65, NEMA 4 rugged protection, plastic front bezel |
| POWER SUPPLY | 9 to 24VDC with adapter cable |
| POWER CONSUMPTION | 20.4W |
| WATCHDOG TIMER | 255 levels, 0 to 255 sec. |
| OPERATING TEMPERATURE | 0°C to +50°C (+32°F to +122°F) |
| RELATIVE HUMIDITY | 20% to 90% @ +40°C; non-condensing |
| VIBRATION | 2G, 5 to 500Hz, random for SSD |

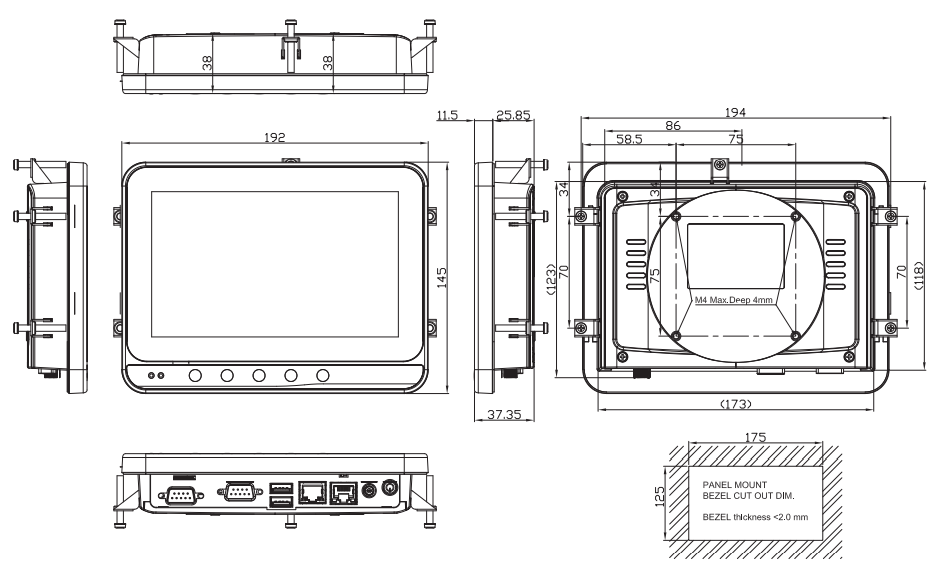

| DIMENSIONS (W X D X H) | 192 x 37.4 x 145mm (7.56″ x 1.47″ x 5.7″) |
| WEIGHT (NET/GROSS) | 0.75 kg (1.65 lb)/2.0 kg (4.41 lb) |
| CERTIFICATIONS | CE, FCC class B |
| OS SUPPORT | Windows® 10 |
| MOUNTING | Panel mount kit
Wall mount kit Stand kit VESA arm |
| PART NUMBERS | PPC2012: 7″ SVGA fanless touch panel computer with Intel® Celeron® N3350
PPC2012-01: 7″ SVGA fanless touch panel computer with Intel® Pentium® N4200 |
| OPTIONS | Wi-Fi + Bluetooth kit
Panel mount kit Wall mount kit Stand kit AC Adapter |
