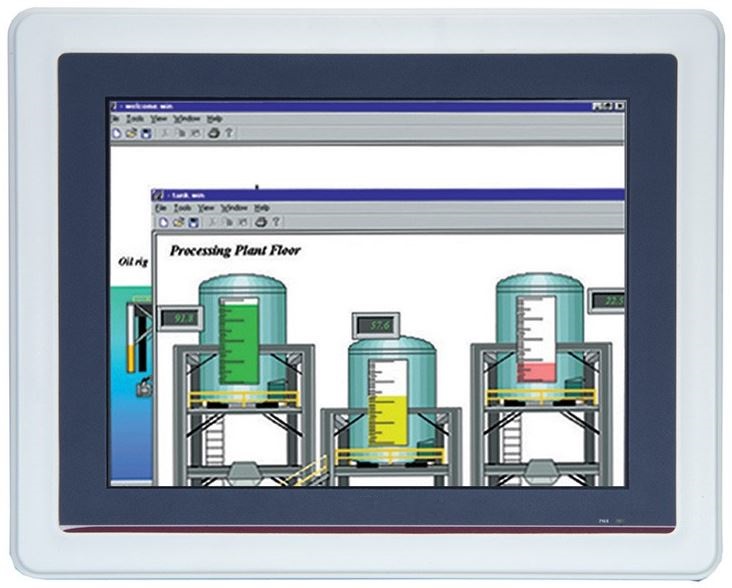

PPC-1225 – Panel PCs
- 12.1″ XGA fanless Panel PC
- Intel® Celeron® N3060 processor
- 5-wire resistive touch screen

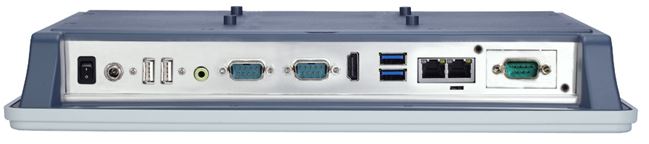

- IO: 2 LAN/HDMI/COM/USB3.0/USB2.0
- 1 x 2.5” SSD bay, 1 x mSATA
- Supports up to 8GB DDR3L memory
- IP65 compliant front panel
- Panel/wall/stand/VESA mounting
- 24V DC or AC input options
- Supports Windows 7 & Windows 10
Specifications
| PANEL | 12.1″ XGA/SVGA TFT LCD with LED backlight
500 nits (XGA) 450 nits (SVGA) 1024 x 768 (XGA) 800 x 600 (SVGA) |
| PROCESSOR | Intel® Celeron® processor N3060 up to 2.48 GHz |
| CHIPSET | SoC integrated |
| SYSTEM MEMORY | 1 x 204-pin DDR3L-1600 SO-DIMM, up to 8GB |
| BIOS | AMI |
| COM | 1 x RS-232
1 x RS-232/422/485 (default RS-232) |
| USB | 2 x USB 2.0
2 x USB 3.0 |
| ETHERNET | 2 x 10/100/1000 Mbps (Intel® i211-AT) |
| DISPLAY | 1 x HDMI |
| AUDIO | 1 x Audio (Line-out) |
| STORAGE | 1 x 2.5″ SATA HDD (9.5 mm height)
1 x mSATA |
| EXPANSION | 1 x Full-size PCI Express Mini Card slot with mSATA
1 x Full-size PCI Express Mini Card slot with SIM |
| OTHERS | 1 x 8-bit DIO port (programmable, DB9)
1 x switch for power on/off 1 x AT/ATX mode selection switch |
| TOUCHSCREEN | 5 wire resistive touch |
| FRONT BEZEL | IP65, NEMA 4 rugged protection, plastic front bezel |
| POWER SUPPLY | DC version: 24 VDC over current protection fuse (optional)
AC version: 100 – 240VAC-DC, 60W power adapter |
| POWER CONSUMPTION | 34W |
| WATCHDOG TIMER | 255 levels, 0 to 255 sec. |
| OPERATING TEMPERATURE | 0°C to +50°C (+32°F to +122°F) |
| RELATIVE HUMIDITY | 20% to 90% @ 40°C; non-condensing |
| VIBRATION | 2G, 10 – 500Hz, random for SSD |

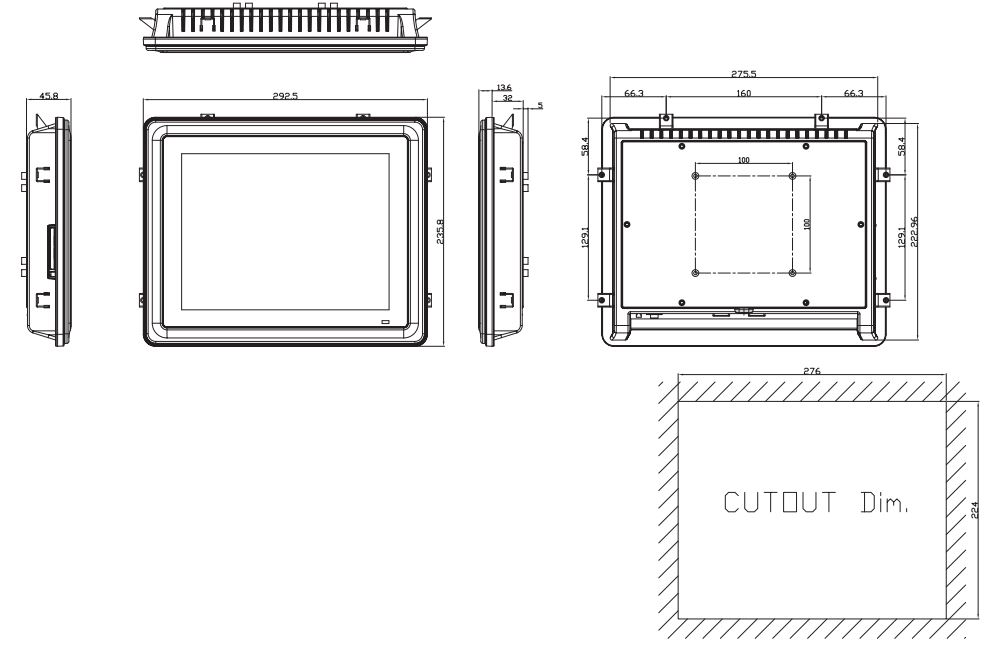

| DIMENSIONS (W X D X H) | 327.5 x 52.5 x 261.8 mm (12.9″ x 2.07″ x 10.3″) |
| WEIGHT (NET/GROSS) | 2.48 kg (5.46 lb)/3.84 kg (8.46 lb) |
| CERTIFICATIONS | CE, FCC, UL60950-1 |
| OS SUPPORT | Windows® 7, WES 7, Windows® 8.1, WE8S, Windows® 10 |
| MOUNTING | Panel mount
Wall mount VESA arm Desktop stand |
| PART NUMBERS | PPC-1225: 12.1″ XGA, N3060, 5-wire resistive touch screen, AC power input
PPC-1225-02: 12.1″ SVGA, N3060, 5-wire resistive touch screen, AC power input PPC-1225-03: 12.1″ SVGA, N3060, 5-wire resistive touch screen, 24V DC power input PPC-1225-04: 12.1″ XGA, N3060, 5-wire resistive touch screen, 24V DC power input |
| OPTIONS | Wi-Fi + Bluetooth kit
Speaker kit Panel mount kit VESA mount kit Stand kit RFID kit |

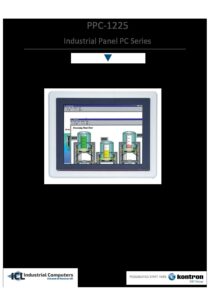

Downloads
