PPC1023 – Rugged Touch Panel PC
- 17″ SXGA fanless Panel PC
- Intel® Celeron® J3455 processor
- 5-wire resistive touch screen
- IO: 2 LAN/DP/COM/USB 3.0 & USB 2.0
- 1 x 2.5” SSD bay, 1 x Mini-PCIe, 1 x M.2
- Supports up to 8GB DDR3L memory
- IP65 compliant front panel
- Panel/wall/stand/VESA mounting
- 24V DC input with optional AC adapter
- Supports Windows 10 OS
Description
PPC1023: Compact and Reliable Industrial Panel PC
The PPC1023 is a compact yet robust 12.1-inch XGA fanless panel PC, designed for industrial applications where space is at a premium. This rugged touch panel PC features a 5-wire resistive touchscreen and an IP65-rated front panel, ensuring reliable operation in demanding environments.
The Intel® Celeron® J3455 processor is a quad-core, 64-bit x86 processor designed for applications where power efficiency and reliable performance are key. Introduced by Intel in 2016, this processor is part of the Celeron J series, based on the “Apollo Lake” architecture, and manufactured using a 14nm process.
Operating with a base frequency of 1.5 GHz, it can reach a burst frequency of up to 2.3 GHz, providing a flexible performance range. With a low Thermal Design Power (TDP) of 10W, it’s well-suited for fanless designs and embedded systems, contributing to energy efficiency.
The PPC1023 supports up to 8GB of DDR3L memory, providing sufficient performance for industrial control and monitoring tasks. Connectivity is comprehensive, with dual LAN ports, DisplayPort, COM, USB 3.0, and USB 2.0. Storage options include a 2.5-inch SSD bay, as well as Mini-PCIe and M.2 slots for expansion. Versatile mounting options (panel, wall, stand, or VESA) and a 24V DC power input (with an optional AC adapter) allow for flexible integration. Running Windows 10, the PPC1023 offers a dependable and adaptable solution for various industrial settings.
Specifications
| PANEL | LCD size: 17″, 4:3
Resolution: SXGA 1280 x 1024 Luminance: 350cd/m2 Contrast ratio: 800 LCD colour: 16.7M Viewing angle: 60 (U), 80 (D), 80 (L), 80 (R) Backlight: LED |
| TOUCH SCREEN | 5-wire resistive (flush panel type)
Touch light transmission: 81% Touch interface: USB |
| SYSTEM | CPU: Intel® Celeron® J3455 Quad Core processor, 1.50GHz
BIOS: AMI BIOS System memory: 1 x 204-pin DDR3L SO-DIMM socket, 4GB DDR3L (default), supports up to 8GB DDR3L-1866, non-ECC and un-buffered Storage device – 1 x Internal M.2 2242 – 1 x HDD/SSD drive bay Watchdog timer: Watchdog timeout can be programmable by software from 1 second to 255 seconds and from 1 minute to 255 minutes (tolerance 15% under room temperature 25°C) Expansion: 1 x mini-PCIe socket (supports optional Wi-Fi module) Front LED indicator to show operating status |
| REAR I/O | Ethernet: 2 x RJ45
Display : 2 x DP1.2 USB : 2 x USB 2.0, 2 x USB 3.0 LED indicator: power/HDD/GPIO programmable LED Power button COM #3: RS232/422/485 COM #1&2: RS232 |
| ETHERNET | Dual Intel® I210-IT Gigabit LAN
Ethernet interface: 10/100/1000 based-Tx Ethernet compatible |
| MECHANICAL & ENVIRONMENTAL | Colour: Pantone black\RAL 15 00 front bezel w/Pantone 400C\RAL 090 80 10
IP protection: IP65 front Mounting: panel/wall/stand/VESA 100mm x 100mm Power: – Power input: 24V VDC (optional AC to DC power adapter (+24V, 60W) Vibration: – IEC 68 2-64 (w/HDD) – 1Grms @ sine, 5~500Hz, 1hr/axis (HDD operating) – 2Grms @ sine, 5~500Hz, 1hr/axis (M.2/SSD operating) – 2Grms @ sine, 5~500Hz, 1hr/axis (CFast operating) – 2.2Grms @ random condition, 5~500Hz, 0.5hr/axis (non-operating) Shock: – IEC 68 2-27 – HDD: 20G @ wall mount, half sine, 11ms Temperature: – Operating temperature: 0°C to 50°C – Storage temperature: -20°C to 75°C Operating humidity: 10%~90% relative humidity, non-condensing (limits to be at 90% RH at max 50°C) |

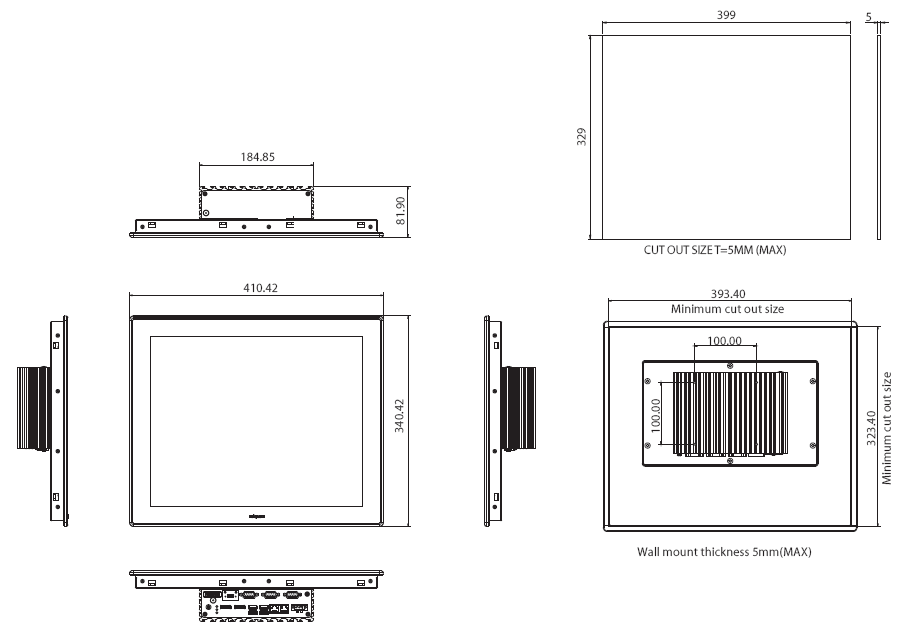

| DIMENSIONS | 410.42 x 340.42 x 81.9mm |
| WEIGHT | 5.5kg |
| CERTIFICATIONS | CE approval
FCC Class A |
| OS SUPPORT | Windows 10 IoT
Windows 10 Pro |
| OPTIONS | 24V, 60W AC/DC power adapter w/o power cord
WI-FI module |
