NES-52 Fanless System
- On board Intel® Celeron® processor J3455 Quad Core, 1.50GHz
- 3 x HDMI
- 3 x Intel® I210 GbE LAN ports; support WoL, teaming and PXE
- 6 x USB 3.0
- 2 x USB 2.0
- 2 x mini-PCIe socket support optional mSATA/Wi-Fi/BT/4G LTE modules
- 1 x RS232/422/485, 3 x RS232
- Supports -5°C~55 °C extended operating temperature
- Supports +9V to 30VDC input; supports ATX power mode
Specifications
| PROCESSOR | On board Intel® Celeron® processor J3455 Quad Core, 1.50GHz |
| SYSTEM MEMORY | 1 x DDR3L SO-DIMM socket, support DDR3L 1866 8GB RAM max., un-buffered and non-ECC |
| DISPLAY | 3 x HDMI |

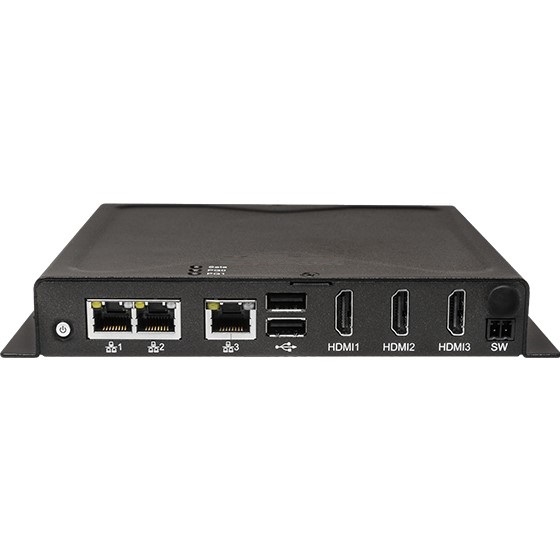

| I/O INTERFACE-FRONT | ATX power on/off switch
3 x HDMI 3 x Intel® I210 GbE LAN ports; support WoL, teaming and PXE 2 x USB 2.0 (500mA per each) 1 x Antenna hole 1 x 2-pin remote power on/off switch |

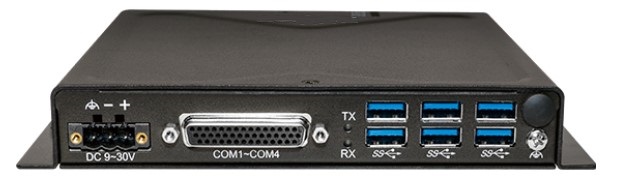

| I/O INTERFACE – REAR | 6 x USB 3.0 ports (900mA per each)
1 x DB44 serial port for 4 x COM port – COM1: RS232/422/485 with auto flow control and — jumper-free setting – COM2 & COM3 & COM4: full RS232 signal LED indicator for TX/RX 1 x Antenna hole 1 x 3-pin DC input, support +9V to 30V DC input |
| I/O INTERFACE – INTERNAL | 4 x GPI and 4 x GPO (programmable to GPI or GPO)
1 x Nano-SIM card holder |
| STORAGE DEVICE | 1 x mini-PCIe socket for optional mSATA |
| EXPANSION SLOT | 1 x mini-PCIe socket for optional Wi-Fi/BT/4G LTE |
| POWER REQUIREMENTS | Power input: +9 to +30V DC
1 x Optional 24V, 60W power adapter |
| SUPPORTED OS | Windows 10 64-bit
Linux Kernel |

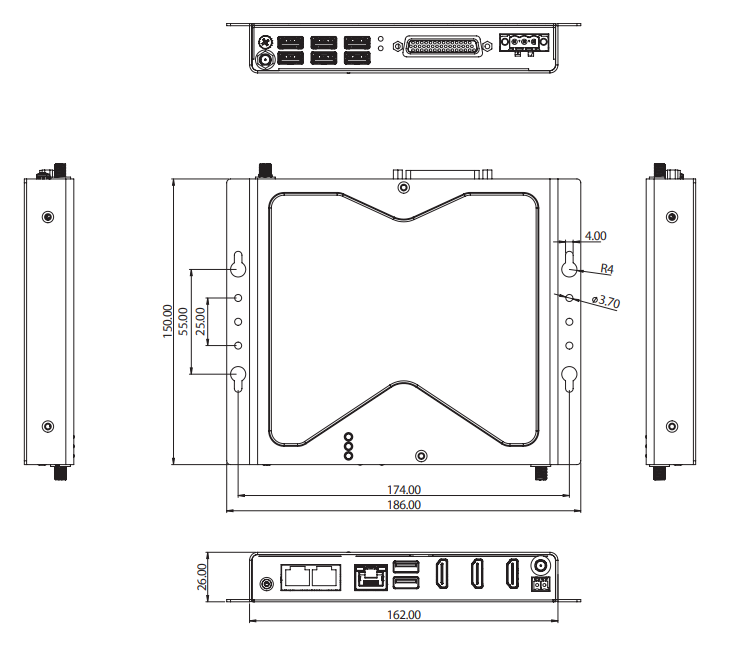

| DIMENSIONS | 162mm(W) x 26mm(H) x 150mm(D) without wall-mount bracket |
| MECHANICAL CONSTRUCTION | Metal Chassis with fanless design |
| ENVIRONMENT | Operating temperature
Ambient with air flow: -5°C to 55°C (according to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14) Storage temperature: -20°C to 75°C Relative humidity: 10% to 95% (non-condensing) Shock protection – mSATA: 50G, half sine, 11ms, IEC60068-2-27 Vibration protection with mSATA condition – Random: 2Grms @ 5~500 Hz, IEC60068-2-64 – Sinusoidal: 2Grms @ 5~500 Hz, IEC60068-2-6 |
| CERTIFICATIONS | CE
FCC Class A |
| OPTIONS | 24V, 60W AC/DC power adapter w/o power cord |
