AES100-N3350 Fanless System
- Intel® Celeron® N3350 processor
- 2 COM, 2 USB and GbE LAN
- 8-bit programmable DIO for IoT gateway applications
- Wide operating temperature range from -20°C to +70°C
- 12 to 24 VDC wide range power input
- OVP, UVP, OCP, RPP power protection design
Specifications
| PROCESSOR | Intel® Celeron® N3350 2C @1.1 GHz, TDP: 6W |
| CHIPSET | SoC integrated |
| SYSTEM MEMORY | 1 x SO-DIMM DDR3L-1866, up to 8 GB |
| COM | 2 x DB9 RS-232/422/485 |
| USB | 2 x USB 2.0 |
| ETHERNET | 1 x RJ-45 isolated 10/100/1000 Mbps (Intel® i211-AT)
Isolation voltage: 1.5 kV |
| POE | N/A |
| CANBUS | N/A |

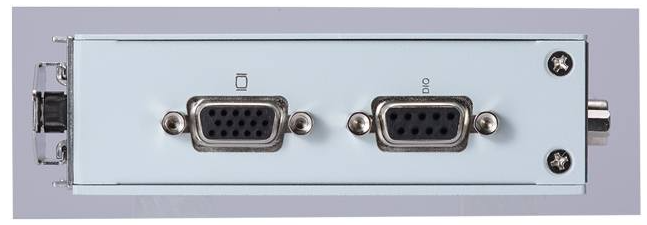

| DIGITAL I/O | 1 x DB9 8-bit programmable DIO |
| ANALOG INPUT | N/A |
| DISPLAY | 1 x VGA |
| EXPANSION | · 2 x Full-size Rev. 1.2 PCI Express Mini Card slot:
· 1 x mSATA/PCIe/USB & 1 x USB/PCIe with SIM socket |
| STORAGE | · 1x mSATA (occupied 1 x PCI Express Mini Card slot) |
| OTHERS | · TPM 2.0 & 2 x Antenna opening |
| POWER SUPPLY | · 1 x Terminal block, 12 to 24 VDC Power
· 12 to 24 VDC,1.15-0.62A |
| WATCHDOG TIMER | 255 levels, 1 to 255 sec. |
| CONSTRUCTION | Extruded aluminium and heavy-duty steel, IP30 |
| OPERATING TEMPERATURE | -20°C to +70°C (-4°F to +158°F) with W.T. peripheral |
| RELATIVE HUMIDITY | 10% to 95% |
| VIBRATION | 2 Gms with storage (5 to 500Hz, X/Y/Z direction; random operating) |

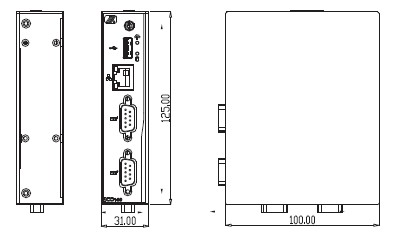

| DIMENSIONS (W X D X H) | 31 x 100 x 125 mm (1.22″ x 3.93″ x 4.92″) |
| WEIGHT (NET/GROSS) | 0.3 kg (0.67 lb)/0.51 (1.12 lb) |
| CERTIFICATIONS | CE (Class A) / FCC (Class A) |
| OS SUPPORT | Win 10 IoT, Linux |
| MOUNTING | DIN-rail / Wall Mounting |
| PART NUMBERS | AES100-N3350: DIN-rail fanless system with Intel® Celeron® processor N3350 |
| OPTIONS | Wall mount kit, Wi-Fi module, 3G/LTE module, AC adapter |
