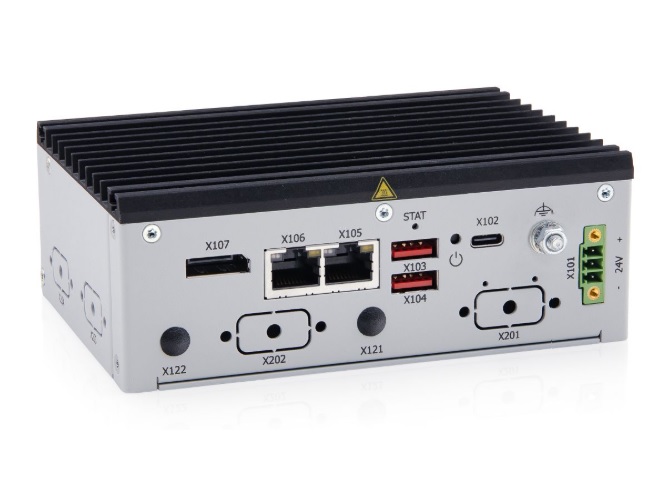

KBox A-251-AML/ADN
- Industrial silent fanless system
- Intel® N97, Intel® Core™ i3-N305 or Intel Atom® x7000 series
- DDR5 Non-ECC SO-DIMM up to 16GB
- 1 DisplayPort
- I/O: 2 LAN, 1 COM, 1, USB-C, 2 USB 3.2, 1 USB 2.0
- 1 wMMC & 1 M.2
- 137 (W) x 50 (H) x 95 mm (D)
- DC Input 12V
- Supports Win 11 IoT Enterprise LTSC, Linux Debian
- KontronOS* KontronGrid** Kontron FabEagle®Connect
Description
Compact Industrial Box PC for Edge Gateway Applications based on 2.5″ SBC
The industrial-grade KBox A-251-AML/ADN in Box PC format is characterized by a particularly compact design, powerful processors and exceptional flexibility. Thanks to the space-saving system design of just 137 x 50 x 95 mm, the system is ideal for applications in which space plays a decisive role without having to compromise on performance. The KBox A-251 AML/ADN is based on latest Intel® N97, Core™ i3-N305 or Atom® x7000RE processors, which are characterized by high energy efficiency and impressive computing power and thus create the basis for real-time applications, machine learning or the processing of large amounts of data. The special feature of this industrial PC is the newly developed IO door on the left-hand side of the system, which can be used to offer a variety of additional interfaces. For example, serial or LAN ports, fieldbuses or digital IOs can be integrated and made available to the customer as required.
Specifications
| PROCESSOR | CPU | Intel® Processor N97 (4x 3.6 GHz, 12W ) |
| Intel® Core™ i3-N305 (8x 3.8GHz, 15W) | ||
| Intel Atom® x7211RE (2x 3.2GHz, 6W), TCC/TSN Support | ||
| Intel Atom® x7433RE (4x 3.4GHz, 9W), TCC/TSN Support | ||
| Intel Atom® x7835RE (8x 3.6GHz, 12W), TCC/TSN Support | ||
| SPEED | Octa-Core up to 3.6 GHz (Burst) | |
| BIOS | AMI® Aptio V5 | |
| MEMORY | TECHNOLOGY | DDR5 |
| MAX. CAPACITY | up to 16 GByte | |
| GRAPHICS | GRAPHICS CORE | Intel® UHD Graphics |
| MAX. RESOLUTION | 4096 x 2160 @ 60Hz | |
| INTERFACES | GRAPHICS PORTS | 1x DisplayPort |
| USB | 2x USB 3.2 (Type A) | |
| 1x USB 2.0 (Type A) | ||
| USB-C | 1x USB-C with USB and DP | |
| ETHERNET | 2x 2.5 GbE Intel® I226-V/IT | |
| SERIAL PORTS | 1x COM ports RS232, 2nd RS232 optional | |
| BUTTONS/LED | Power Button & LED, Status LED | |
| OPTIONAL INTERFACES | WIRELESS TECHNOLOGY | Option for WI-FI 6 or LTE, 5G |
| EXPANSION VIA I/O DOOR | Option for Ethercat, Dual CAN, Dual GbE, 2x COM ports isolated/non-isolated, | |
| 8x GPIO/DIO | ||
| STORAGE | eMMC | Up to 128 GByte 5.1 eMMC |
| M.2 | Up to 2 TByte via M.2 Key B | |
| EXPANSION SLOT | M.2 | 1x M.2 Key E 2230 socket |
| 1x M.2 Key B Type 2242/3042/3052/2280 socket | ||
| SOFTWARE SUPPORT | OPERATING SYSTEM | Win 11 IoT Enterprise LTSC, Linux Debian |
| TOOLSET | KontronOS* | |
| KontronGrid** | ||
| Kontron FabEagle®Connect*** | ||
| MECHANICAL | CONSTRUCTION | Steel |

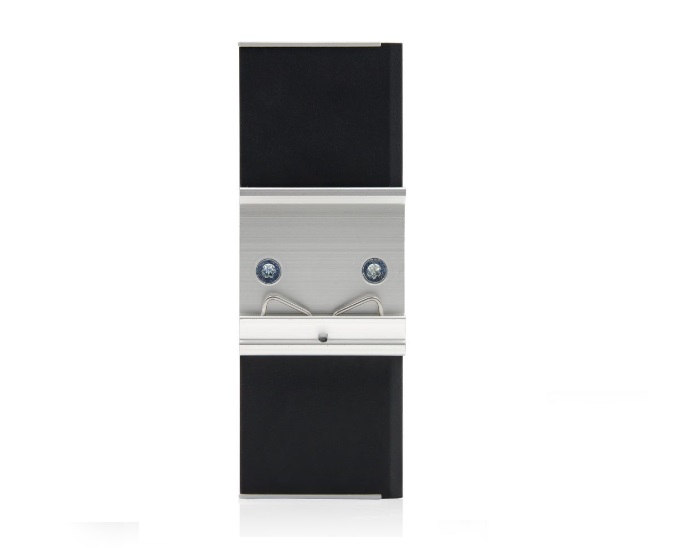

| MOUNTING | DIN RAIL, Rugged DIN RAIL, Desktop | |
| DIMENSIONS (W x H x D) | 137 x 50 x 95 mm (5.39” x 1.97” x 3.73”) | |
| WEIGHT | Approx. 1.0 kg (2.20 lbs) | |
| ENVIRONMENTAL | COOLING | Fanless |
| OPERATING TEMPERATURE | Standard: 0 °C to +60 °C (32 °F to 140 °F) | |
| RELATIVE HUMIDITY | Extended: -40 °C to +60 °C (-40 °F to 140 °F) | |
| 93 % RH at 40 °C, non-condensing | ||
| APPROVALS | CERTIFICATIONS | CE, UL 61010, CB, FCC, UKCA |
Downloads
Similar products
-
AES710-521 Fanless System
View specifications- Intel® Xeon®, 9th/8th gen Intel® Core™ i7/i5/i3 or Celeron® processor
- 2 DDR4 ECC/non-ECC memory supported, up to 64GB
- Dual swappable 2.5″ SATA HDD drive bays with RAID 0 &1
- DVI-I, HDMI, and DisplayPort with triple-view supported
- 6 GbE LAN, 6 USB 3.2 and 1 PCIe x4 expansion slot
- Flexible I/O window supported
-
AES630-528-Series Fanless System
View specifications- 8th gen Intel® Core™ i7/i5/i3 & Celeron® ULT processor
- Dual-channel DDR4 2400 SO-DIMM up to 64GB memory
- Supports 2 HDMI, VGA, 3 GbE LAN, 4 COM and 6 USB
- Trusted platform module (TPM 2.0 on board)
- Fanless -40°C to +70°C* operating temperature
- 9 to 36 VDC wide range DC power input
-
AES100-N4200/3350 Fanless System
View specifications- Intel® N3350 or Pentium® N4200
- 2 HDMI, 1 COM, 6 USB and 2 GbE LAN
- 2 PCIe slots for WLAN and WWAN
- 1 swappable 2.5″ SATA HDD drive bay
- Jumbo Frame (9k),WoL, PXE Remote Boot
- Ideal for smart retail & light industrial
-

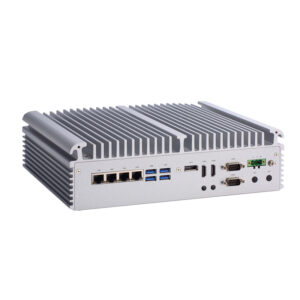

AES671A-CML/POE Fanless System
